S2383/4

S2383/4

SKU DOR7648868
by Dormer Pramet
Primary Use: Possible Use:

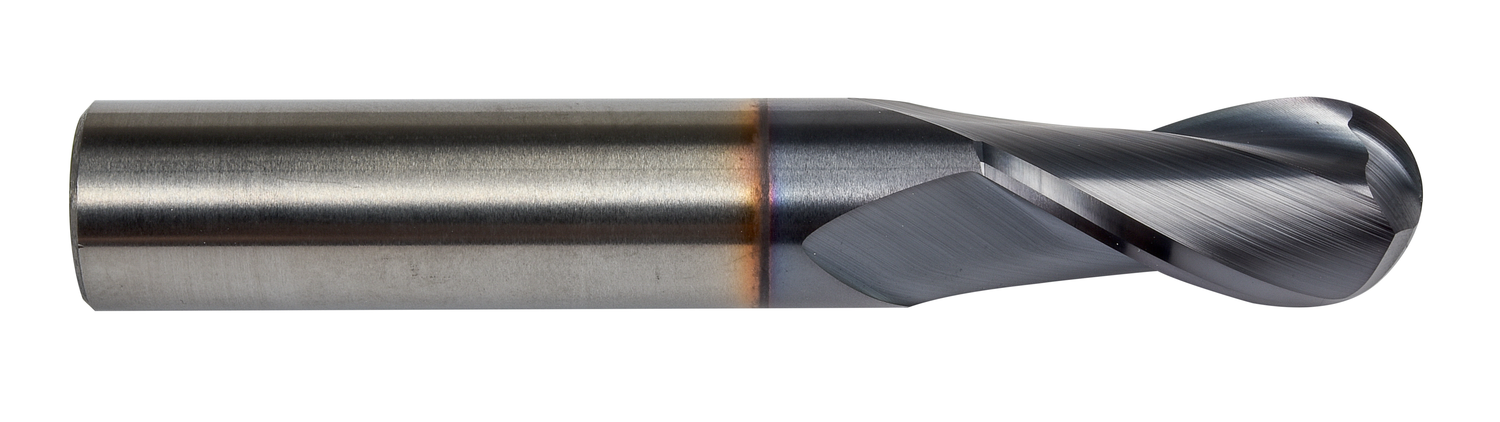

Regular length ball-nose end mill with 4 flutes, diameter 3/4" with 1.1/2" length of cut, 4" overall length and 3/8" full profile radius, according to DORMER standard with a 3/4" plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$235.74 - $235.74
$235.74
$235.74 - $235.74
$235.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

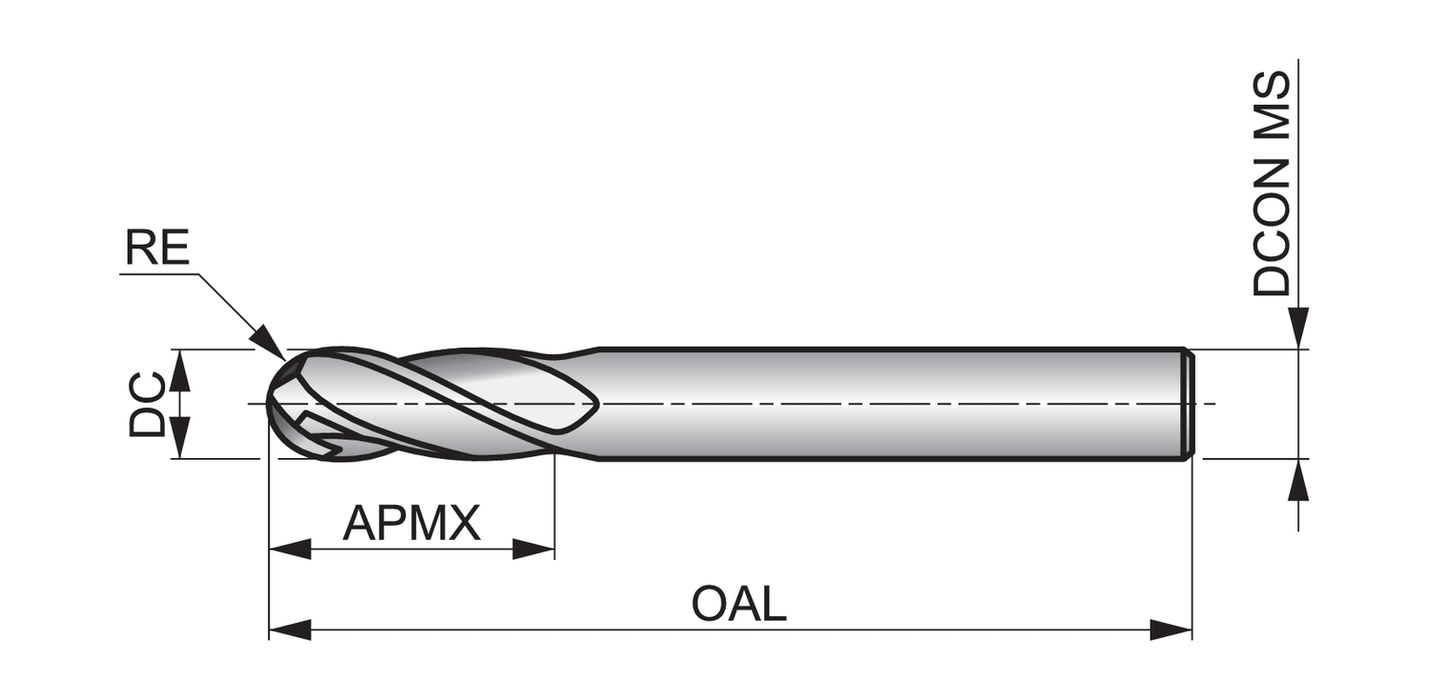

Material: HM

Cutting Diameter - in (DC): 0.75

Cutting Diameter - mm (DC): 19.05

Overall Length (OAL): 4.0

Connetion Diameter: 0.75

Shank: Cylindrical shank

Fractional: 3/4

Grade: TiAlN

Corner Radius - in: 0.375

EDP: 7648868

EAN: 7320760849156

MFG Part Number: 7648868
