S1398.0

S1398.0

SKU DOR7648871
by Dormer Pramet
Primary Use:

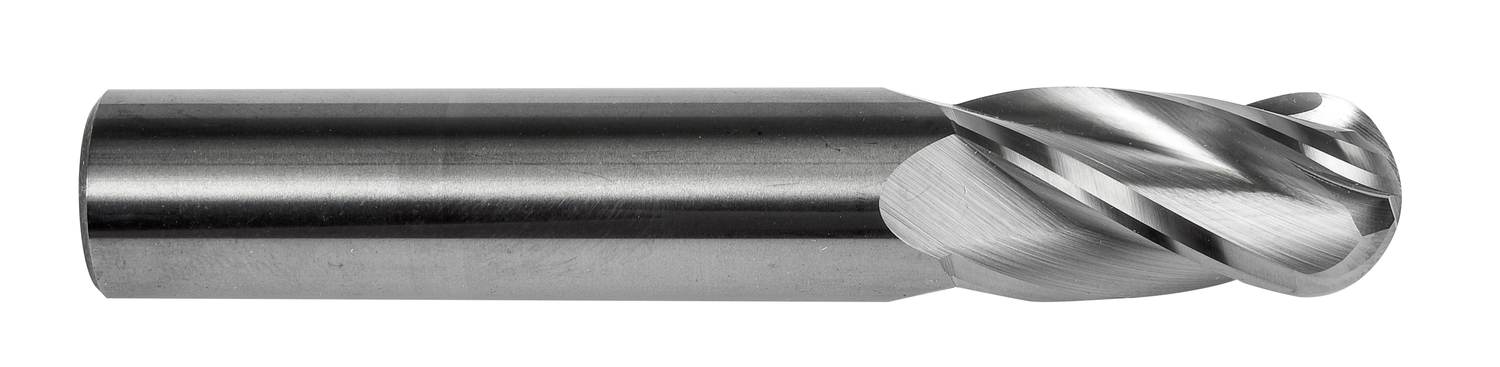

Regular length ball-nose end mill with 4 flutes, diameter 8mm with 19mm length of cut, 63mm overall length and 4mm full profile radius, according to DORMER standard with a 8mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$40.07 - $40.07
$40.07
$40.07 - $40.07
$40.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

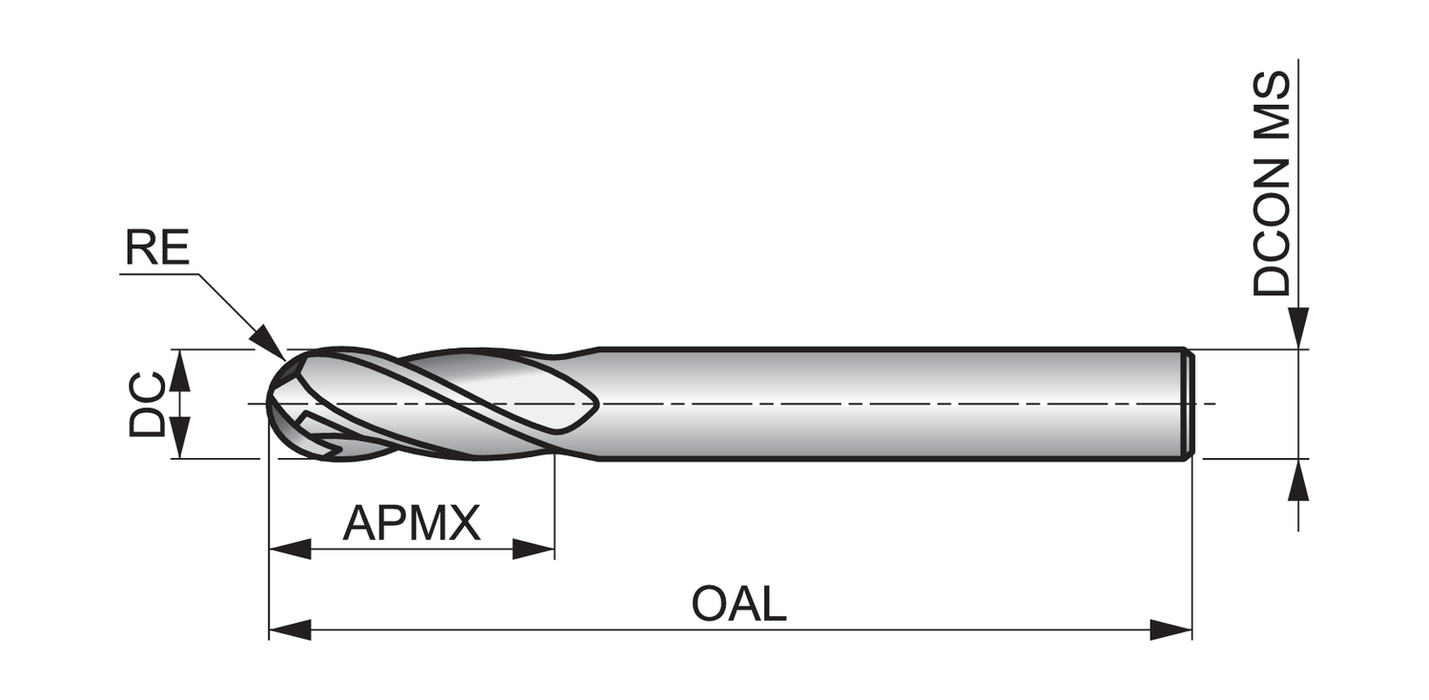

Material: HM

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Overall Length (OAL): 2.4803

Connetion Diameter: 0.315

Max. Depth of Cut: 0.748

Shank: Cylindrical shank

Grade: Bright

Corner Radius - in: 0.157

Corner Radius - mm: 4

Cutting Edge Count: 4

EDP: 7648871

EAN: 7320760849187

MFG Part Number: 7648871
