S1394.5
S1394.5

S1394.5

SKU DOR7648874
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.66 CAD - $29.66 CAD
$29.66 CAD
$29.66 CAD - $29.66 CAD
$29.66 CAD

Sold in packs of: 1

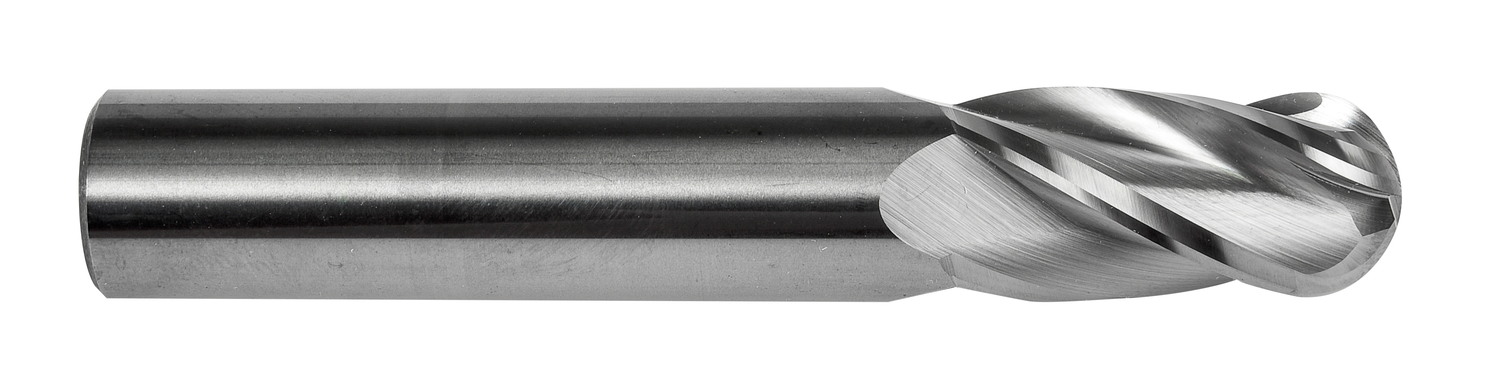

Regular length ball-nose end mill with 4 flutes, diameter 4.5mm with 14mm length of cut, 50mm overall length and 2.25mm full profile radius, according to DORMER standard with a 5mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1394.5
GradeBright
Product Number7648874
Product FamilyS139

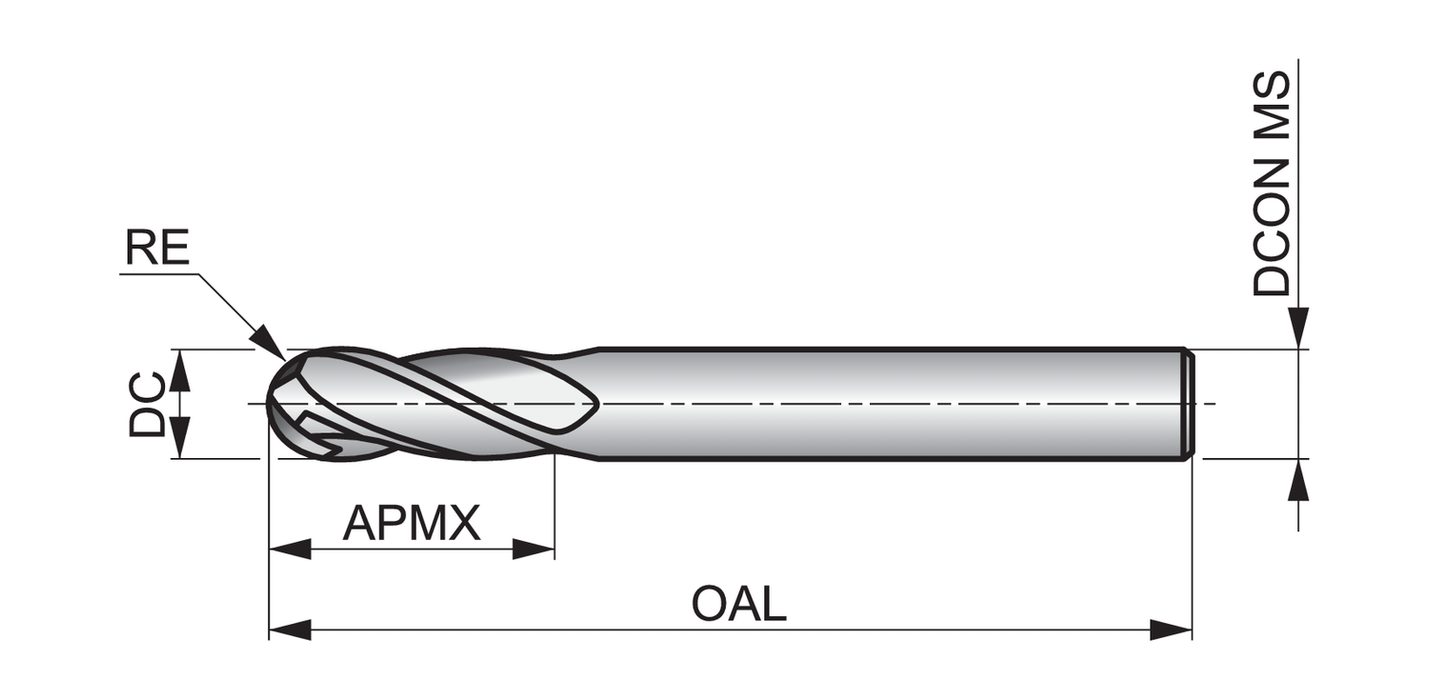

Insert Geometry
Corner Radius — in (RE)0.089"
Corner Radius — mm (RE)2.25 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648874
EAN7320760849217
File Type Download
S1394.5 — Line Drawing PDF Download
