S23910.0

S23910.0

SKU DOR7648884
by Dormer Pramet
Primary Use: Possible Use:

Regular length ball-nose end mill with 4 flutes, diameter 10mm with 22mm length of cut, 70mm overall length and 5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$75.06 - $75.06
$75.06
$75.06 - $75.06
$75.06
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

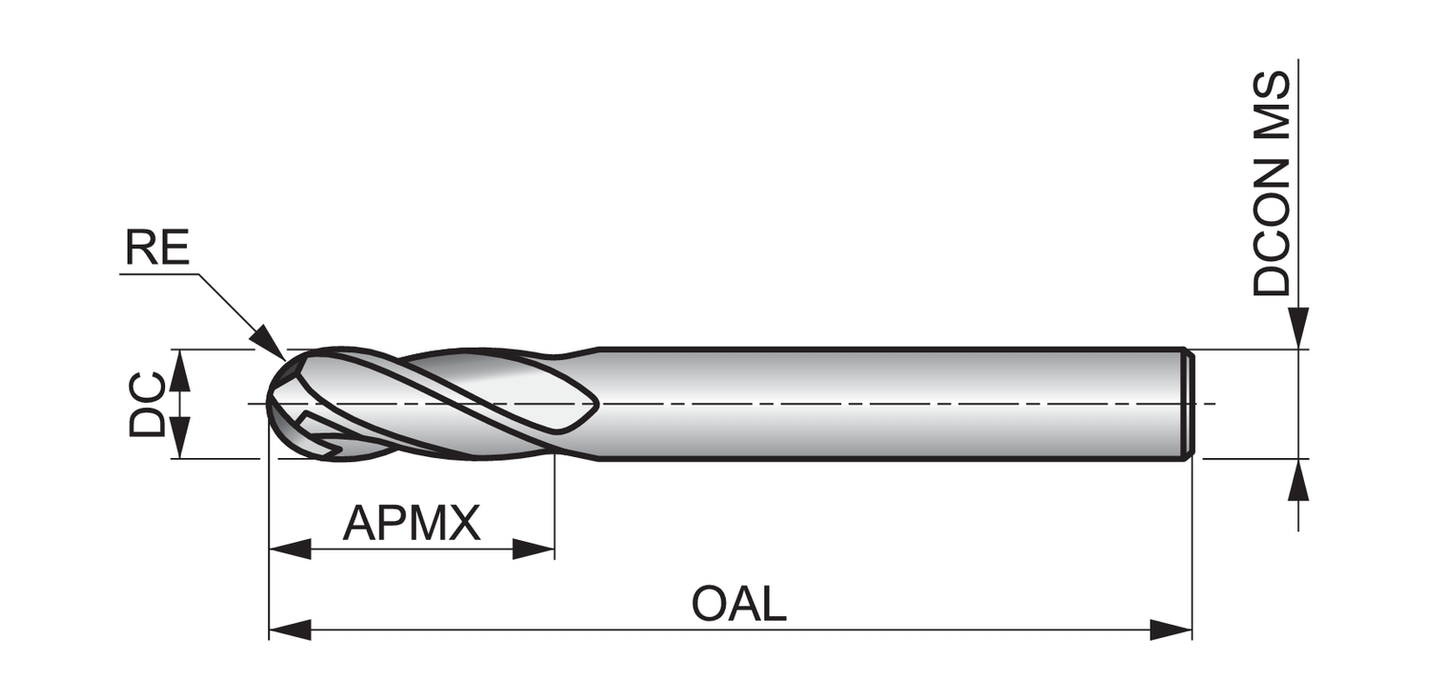

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 2.7559

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank

Grade: TiAlN

Corner Radius - in: 0.197

Corner Radius - mm: 5

Cutting Edge Count: 4

EDP: 7648884

EAN: 7320760849316

MFG Part Number: 7648884
