S248HB7/16XR.045
S248HB7/16XR.045

S248HB7/16XR.045

SKU DOR7648932
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Sold in packs of: 1

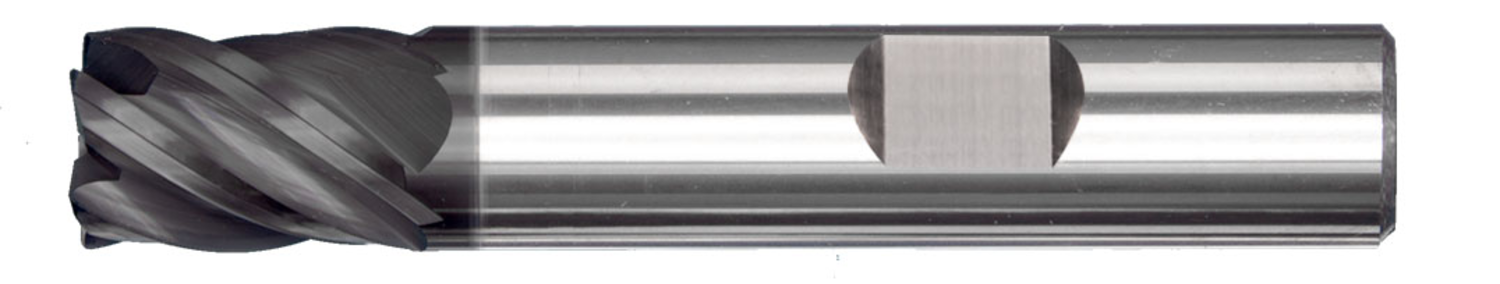

Regular length corner radius end mill with 5 flutes, diameter 7/16" with 5/8" length of cut, 2.1/2" overall length and 0.045" corner radii, according to DORMER standard with a 7/16" Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S248HB7/16XR.045
GradeAlTiN
Product Number7648932
Product FamilyS248HB

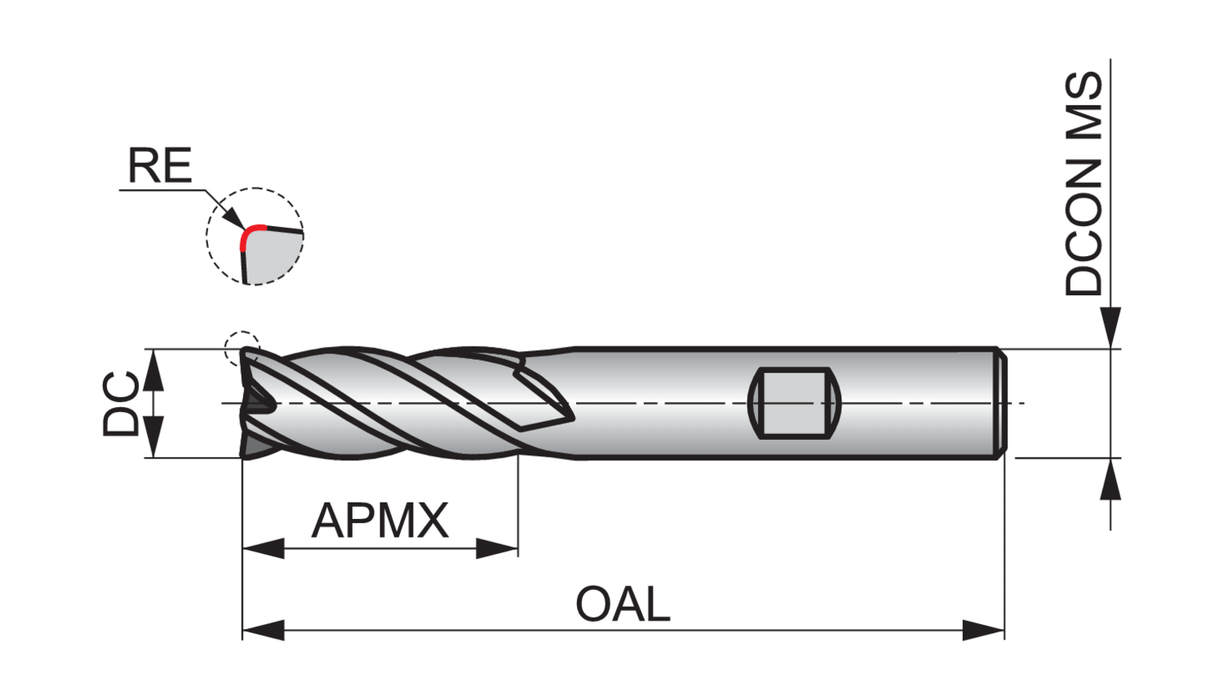

Insert Geometry
Corner Radius — in (RE)0.045"
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional7/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)5
Tool Information
ShankCylindrical shank DIN 6535 HB
StandardWork Norm
Reference Numbers
EDP Number7648932
EAN7320760849798
File Type Download
S248HB7/16XR.045 — Line Drawing PDF Download
