S248HB1XR.030

S248HB1XR.030

SKU DOR7648944
by Dormer Pramet
Primary Use:

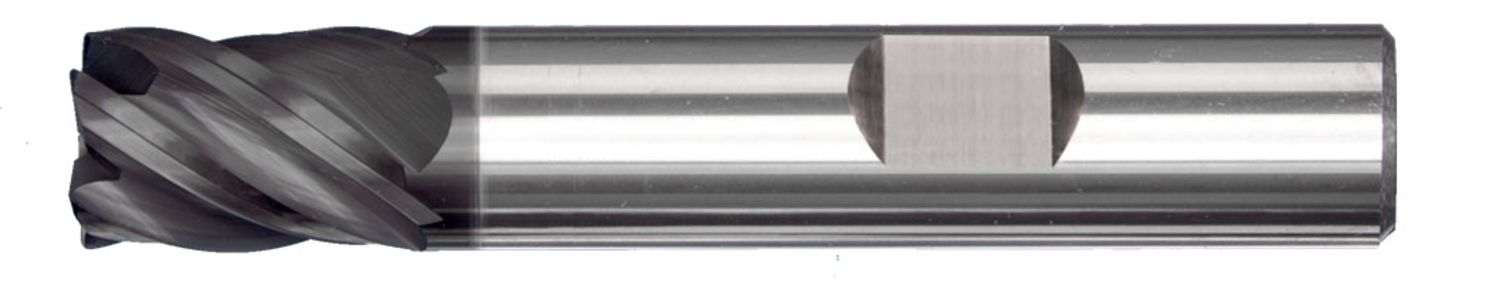

Regular length corner radius end mill with 5 flutes, diameter 1" with 2.1/4" length of cut, 5" overall length and 0.03" corner radii, according to DORMER standard with a 1" Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$655.96 - $655.96
$655.96
$655.96 - $655.96
$655.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

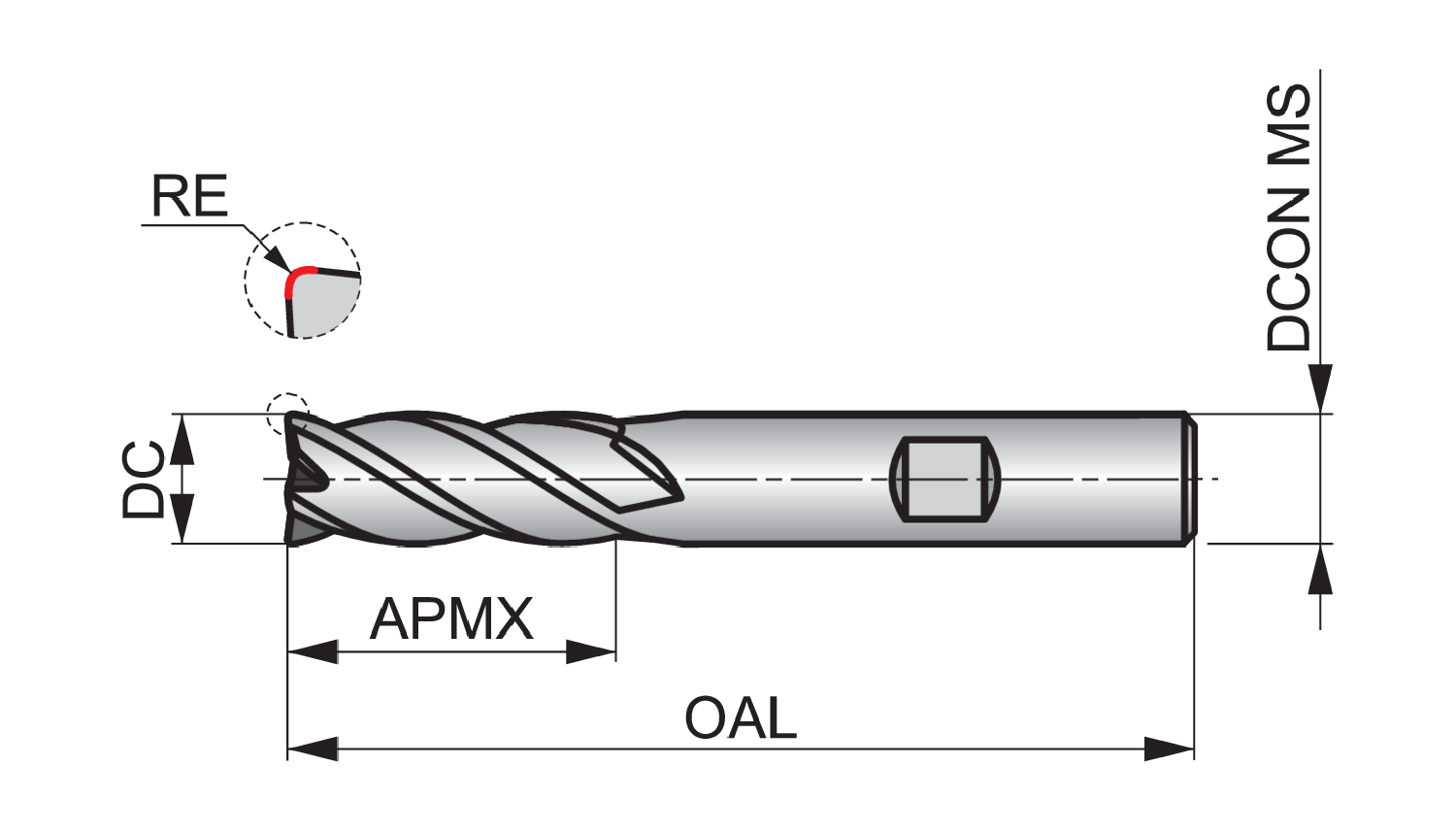

Material: HM

Cutting Diameter - in (DC): 1.0

Cutting Diameter - mm (DC): 25.4

Overall Length (OAL): 5.0

Connetion Diameter: 1.0

Shank: Cylindrical shank DIN 6535 HB

Fractional: 1"

Grade: AlTiN

Corner Radius - in: 0.03

EDP: 7648944

EAN: 7320760849910

MFG Part Number: 7648944
