CCMT 32.50.5-UR:T6310

CCMT 32.50.5-UR:T6310

SKU DOR7763056
by Dormer Pramet
Primary Use: Possible Use:

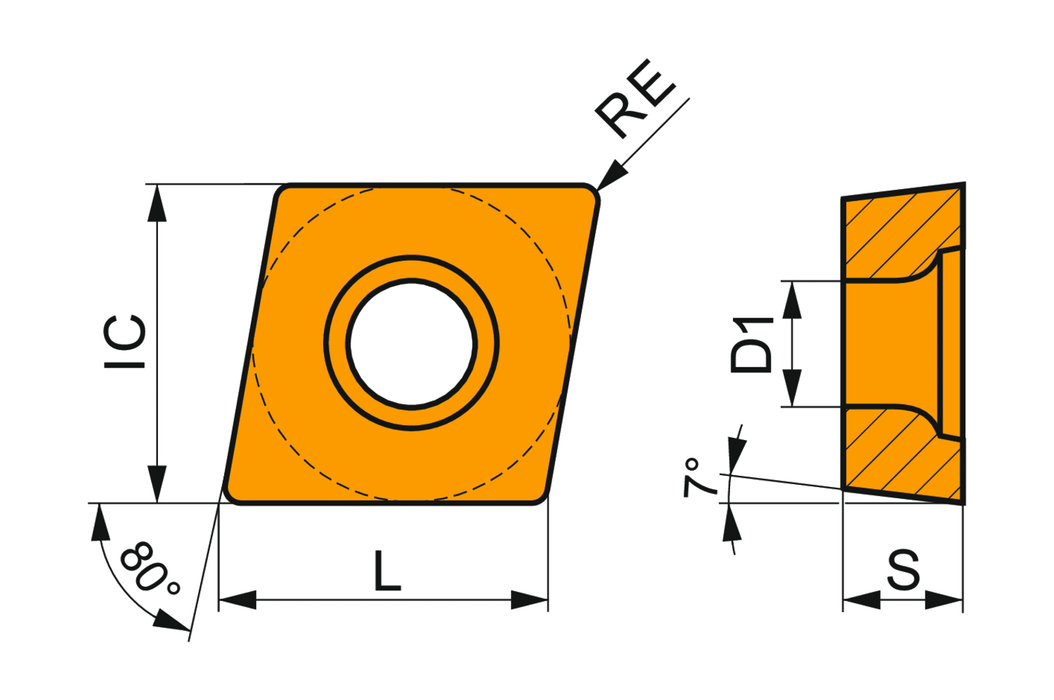

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15 and K05 -K20, for fine to heavy machining of steels and cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.64 - $12.64
$12.64
$12.64 - $12.64
$12.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.118

Tool Direction: Left

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: UR

Grade: T6310

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7763056

EAN: 3603603627031

MFG Part Number: 7763056
