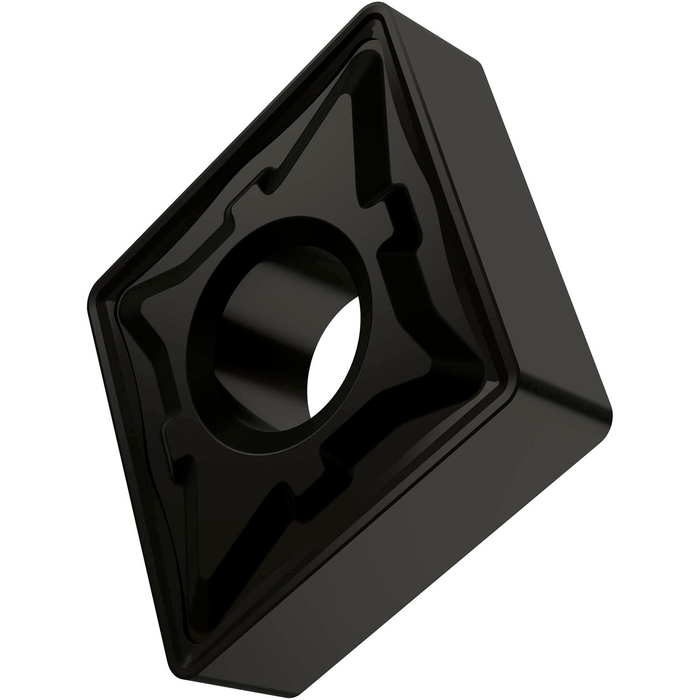

CNMG 543-R:T7335

CNMG 543-R:T7335

SKU DOR7763058
by Dormer Pramet
Possible Use:

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 15.575mm, 6.35mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker R with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for medium to heavy machining

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.276

Tool Direction: Right

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: R

Grade: T7335

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7763058

EAN: 3603603627055

MFG Part Number: 7763058
