GL2-S26KB
SKU DOR7803230
Primary Use:

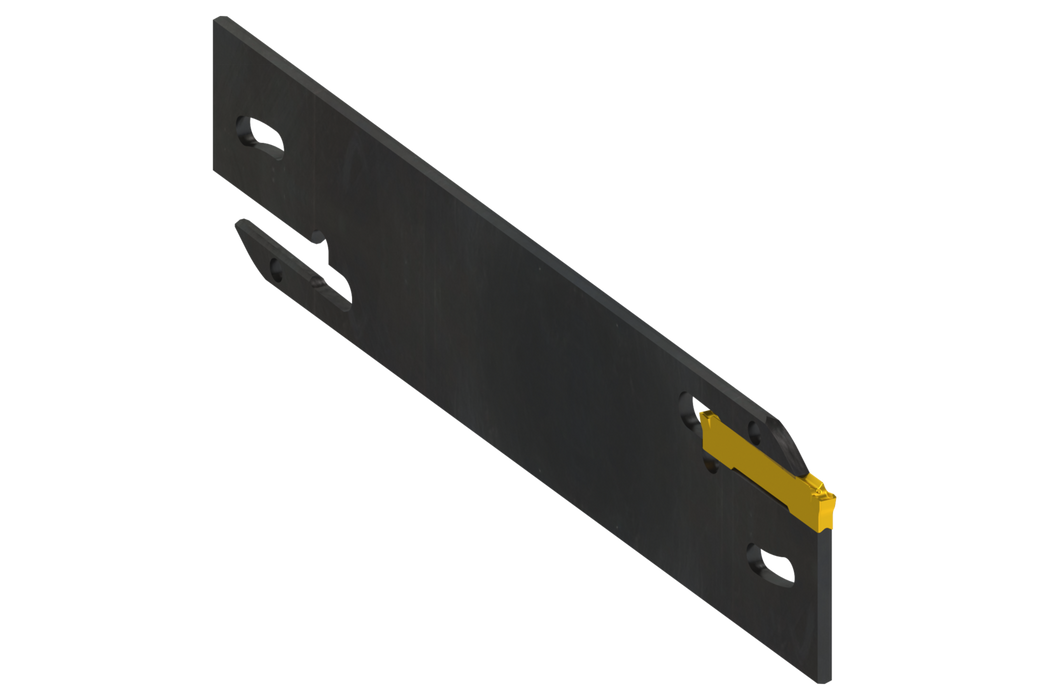

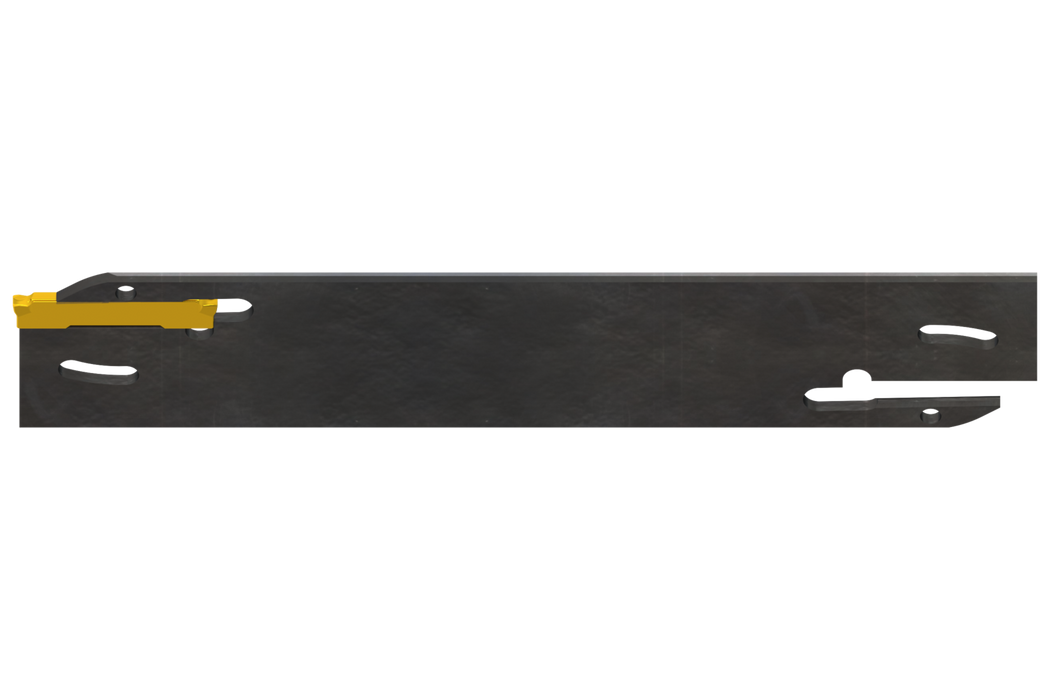

Spring clamp parting and grooving tool blade for holding a 25mm double ended insert with 2-2.5mm cutting width (designation GL2-D… ), tool style assembly with 26-DU.. for a maximum grooving depth of 35mm, tool blade height 26mm and length 125mm for parting-off and tube parting-off
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$265.00
-
Original price
$265.00
Original price
$265.00
$265.00
-
$265.00
Current price
$265.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

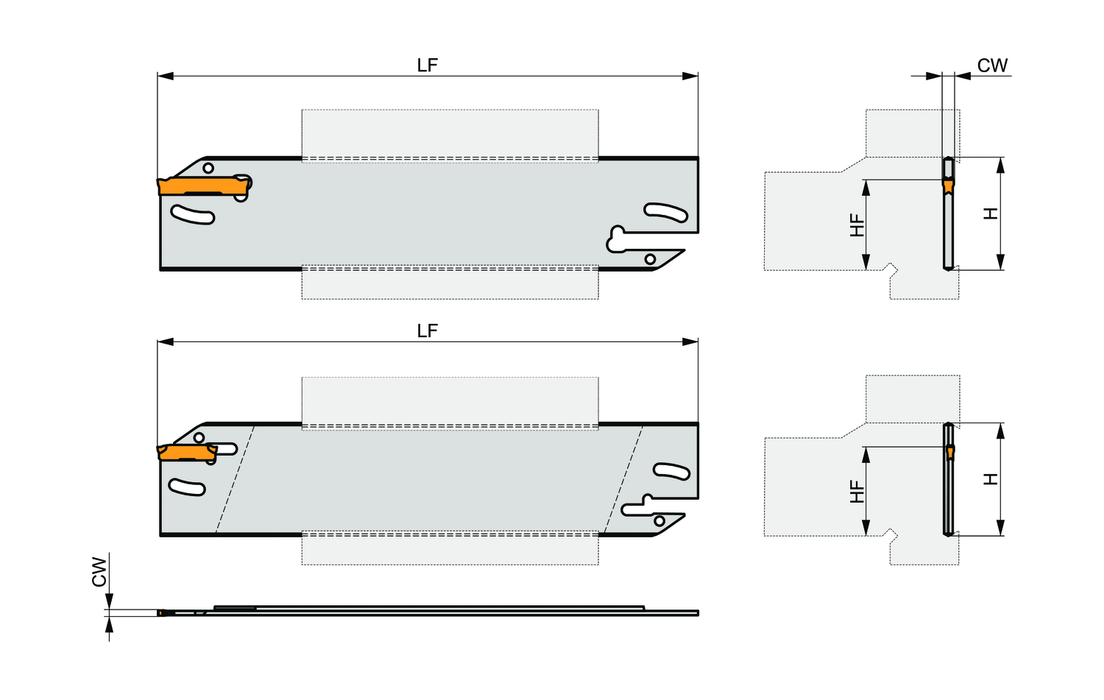

Max. Depth of Cut: 1.378
Height: 1.024
Tool Direction: Left
Functional Length: 4.921
EDP: 7803230
EAN: 3603603675858
MFG Part Number: 7803230
