GL6-S32MB
SKU DOR7803258
Primary Use:

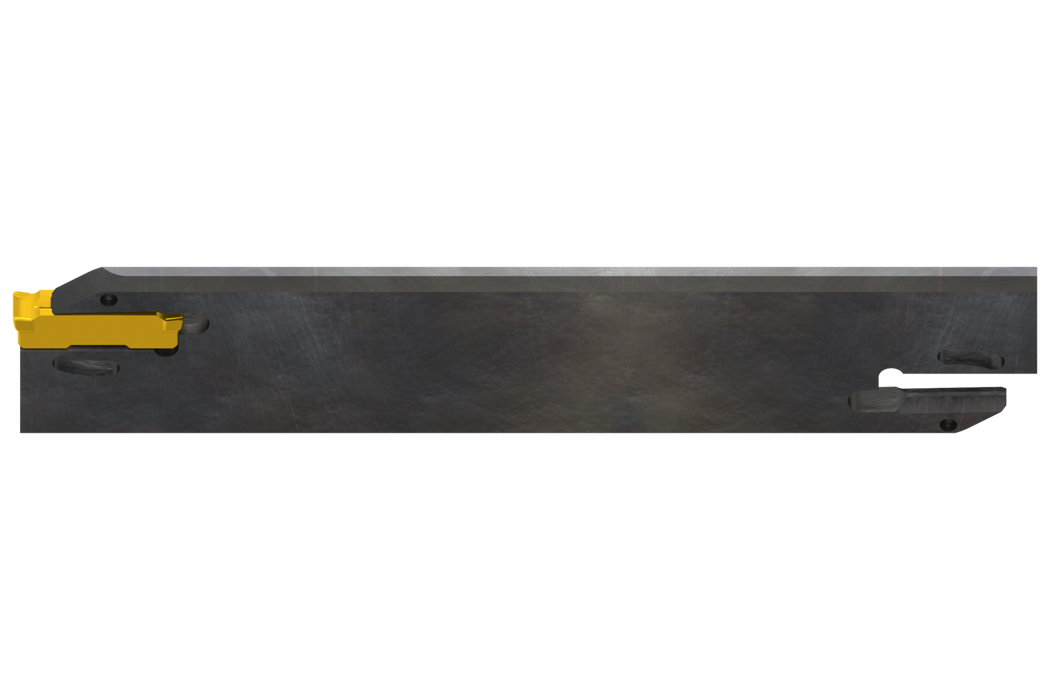

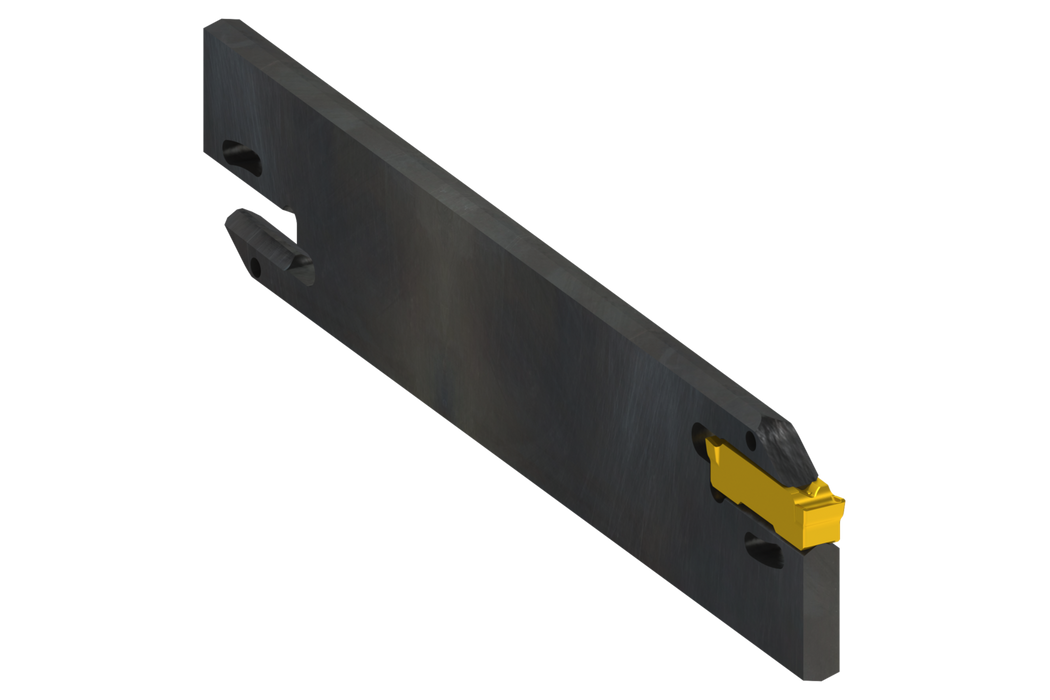

Spring clamp parting and grooving tool blade for holding a 25mm double ended insert with 6mm cutting width (designation GL6-D… ), tool style assembly with 32-DU.. for a maximum grooving depth of 60mm, tool blade height 32mm and length 150mm for parting-off and tube parting-off
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$265.00
-
Original price
$265.00
Original price
$265.00
$265.00
-
$265.00
Current price
$265.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

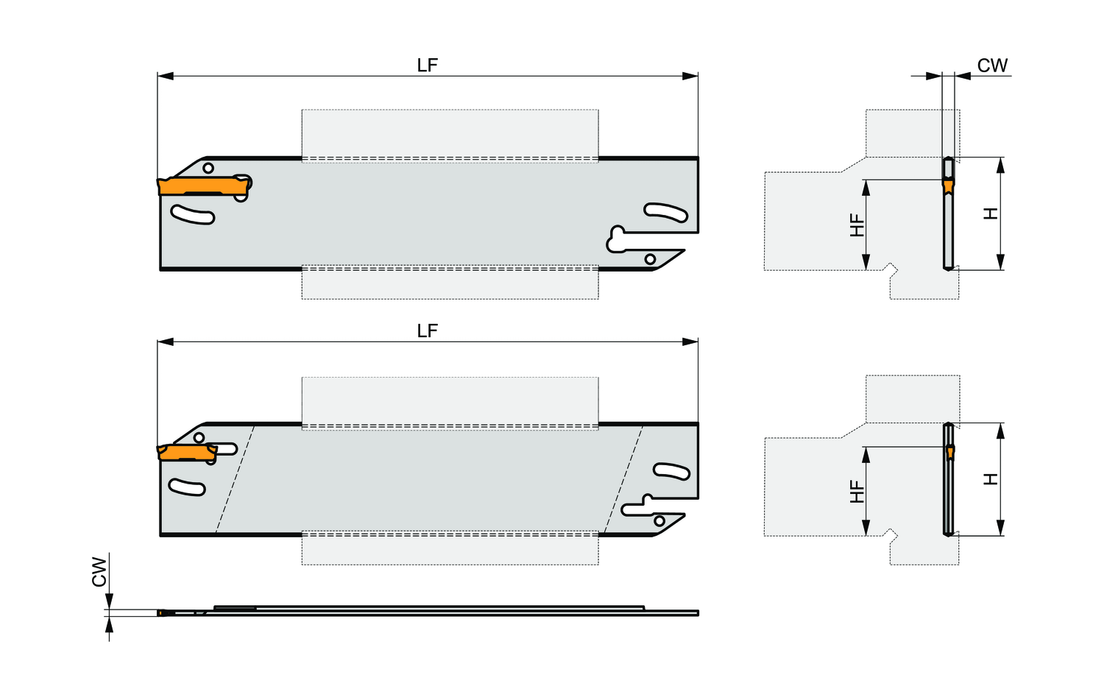

Max. Depth of Cut: 2.362
Height: 1.26
Tool Direction: Right
Functional Length: 5.906
EDP: 7803258
EAN: 3603603679139
MFG Part Number: 7803258
