C4-SCLCL-13080-09

C4-SCLCL-13080-09

SKU DOR7809879
by Dormer Pramet
Primary Use:

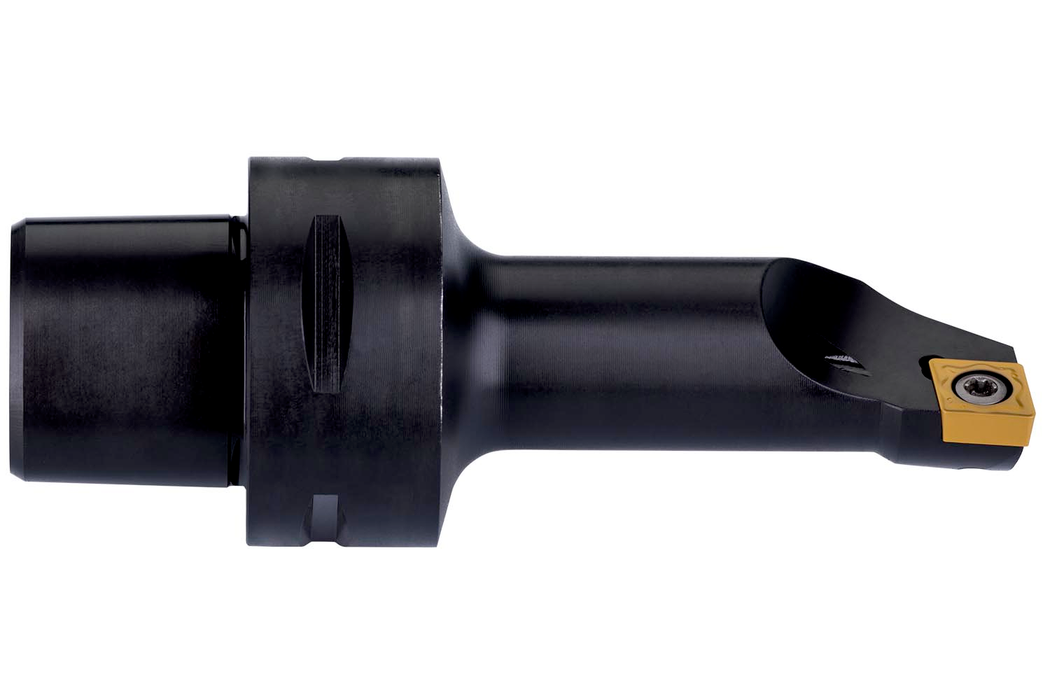

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13mm funtional width and 80mm protruding length for taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$544.00 - $544.00
$544.00
$544.00 - $544.00
$544.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 1

Connetion Diameter: 1.575

Minimum Bore: 0.984

Tool Direction: Right

Cutting Edge Angle: 95.0

Insert Designation: ["CC.. 09T3.."]

Capto Connection: C4

Usable Length: 2.244

Functional Length: 3.15

EDP: 7809879

EAN: 3603603684584

MFG Part Number: 7809879
