SPUB-63-D:T9335

SPUB-63-D:T9335

SKU DOR7817054
by Dormer Pramet
Primary Use: Possible Use:

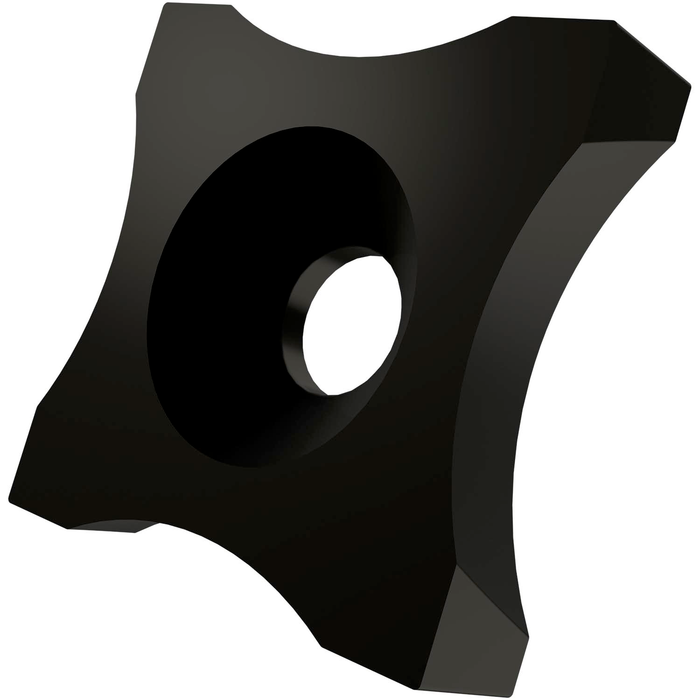

Single-sided scarfing insert, square with a main cutting edge length of 19.05mm, 4.75mm thick and a working radius of 20mm for tube diameters from 29 to 37mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the outside of steel and stainless-steel tubes and pipes

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.64 - $24.64
$24.64
$24.64 - $24.64
$24.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

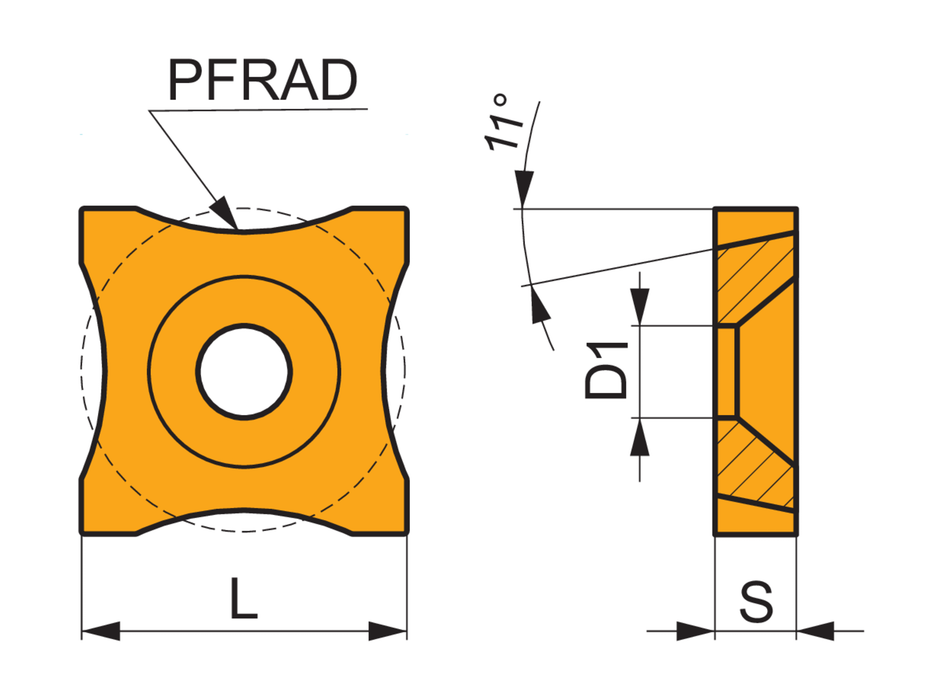

Tool Direction: Left

Insert Design: SPUB 19-R

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.75

Chip Breaker: No chipbreaker

Grade: T9335

EDP: 7817054

EAN: 3603603683778

MFG Part Number: 7817054
