PSR1-R7.5:T9335
SKU DOR7817148
Primary Use:
Possible Use:

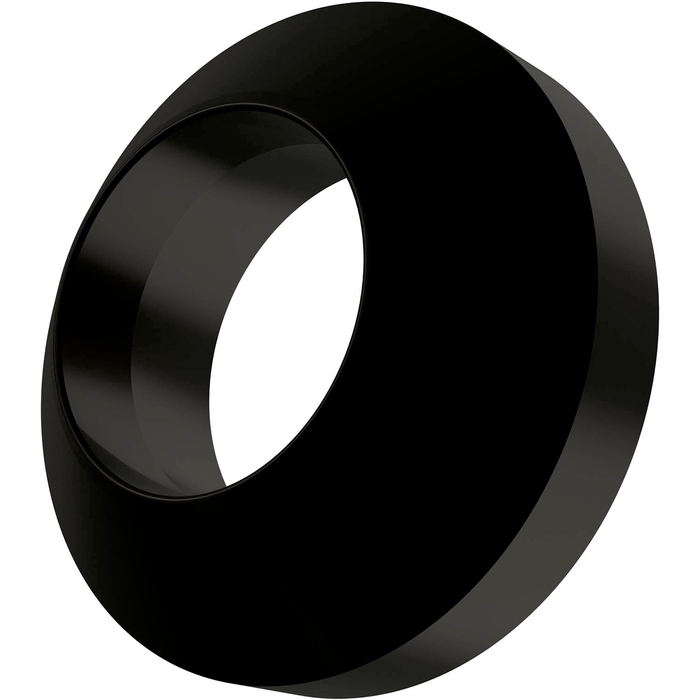

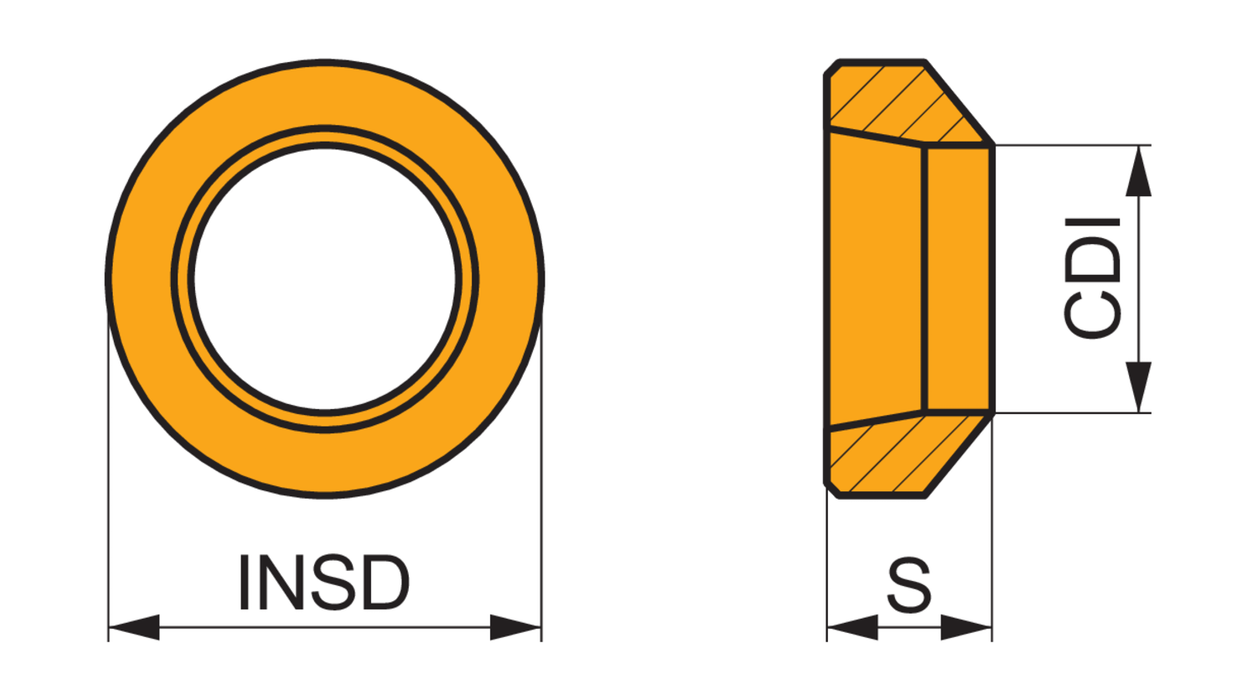

Scarfing ring with an outside diameter of 13mm, an inside diameter of 6.8mm, 5mm thick and a working radius of 7.8mm for tube diameters from 21 to 23mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$39.93
-
Original price
$39.93
Original price
$39.93
$39.93
-
$39.93
Current price
$39.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Left
Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.197
Chip Breaker: No chipbreaker
Grade: T9335
EDP: 7817148
EAN: 3603603686304
MFG Part Number: 7817148
