SKU DOR7820762
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.71 CAD - $356.71 CAD
$356.71 CAD
$356.71 CAD - $356.71 CAD
$356.71 CAD

Sold in packs of: 1

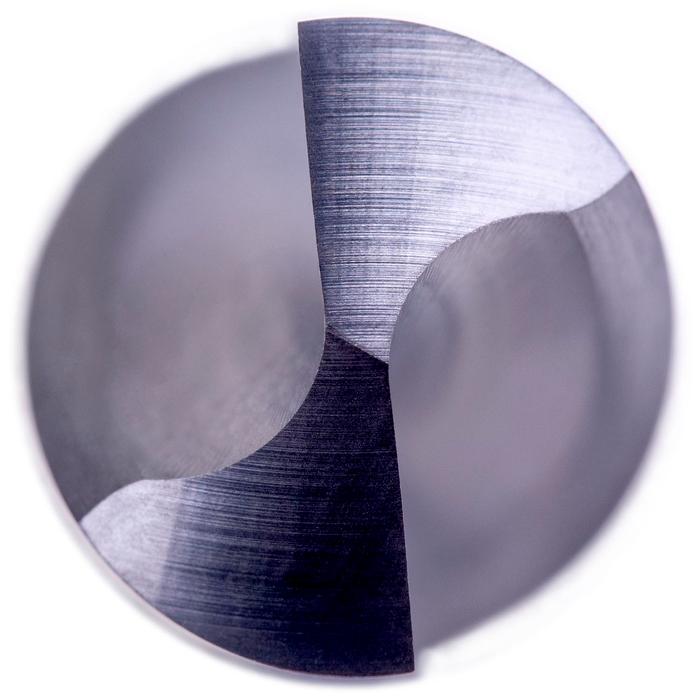

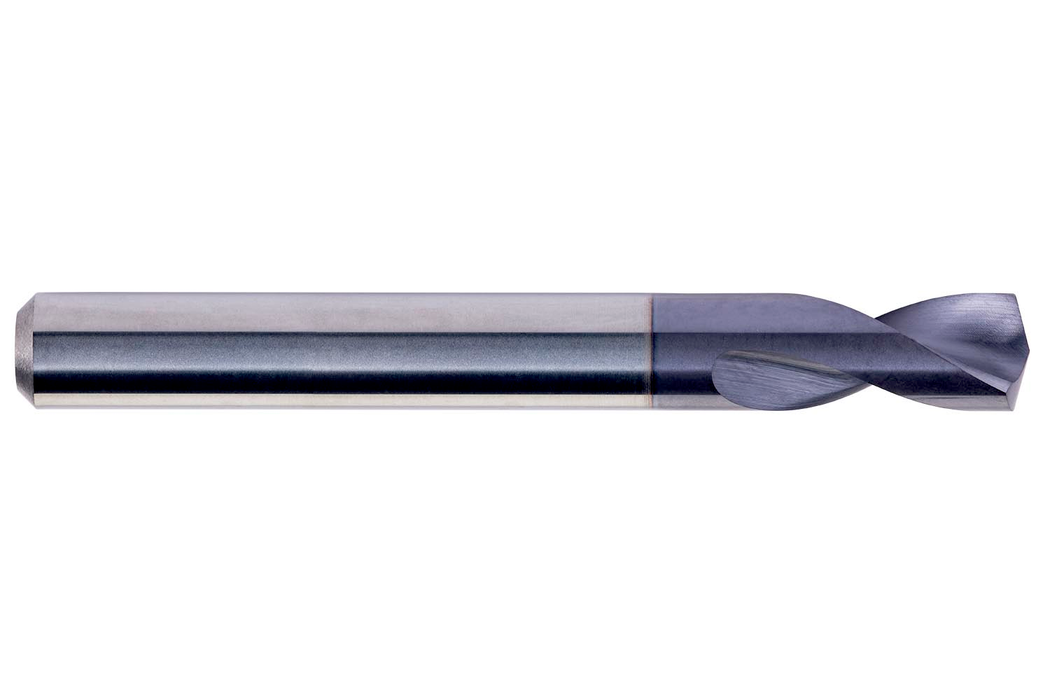

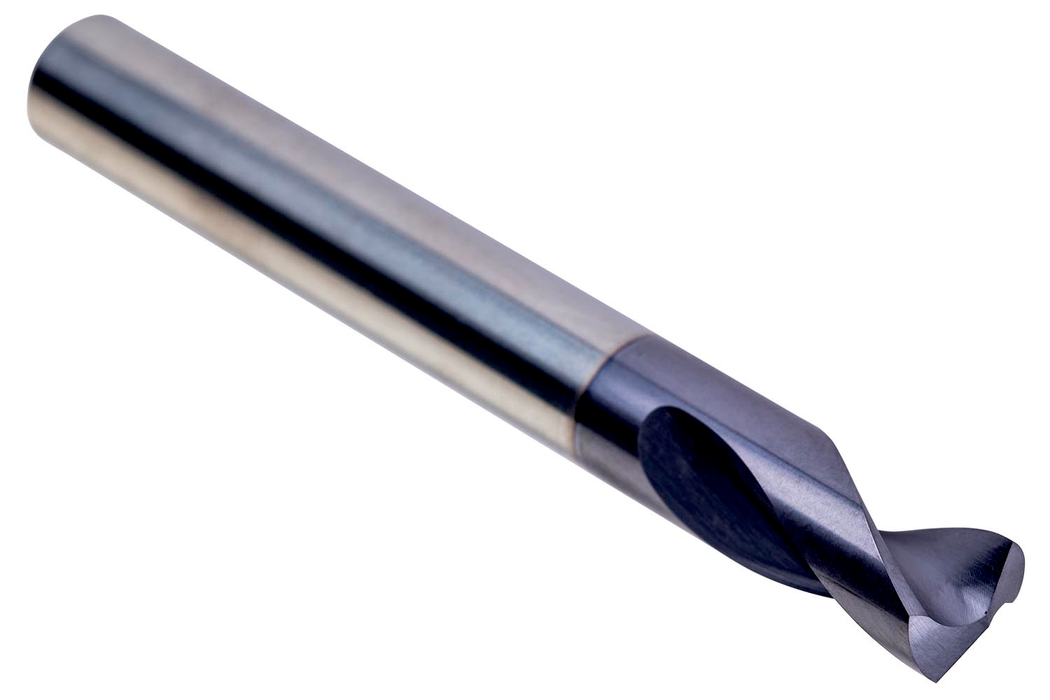

Spot drill with straight shank, diameter 16mm with an overall length of 115mm and flute length of 34mm according to DORMER standard with 150° point angle, solid carbide with TiAlN coating for steel, stainless steel, cast iron, non-ferrous material, super-alloy or hardened material

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12516.0
GradeTiAlN
Product Number7820762
Product FamilyR125

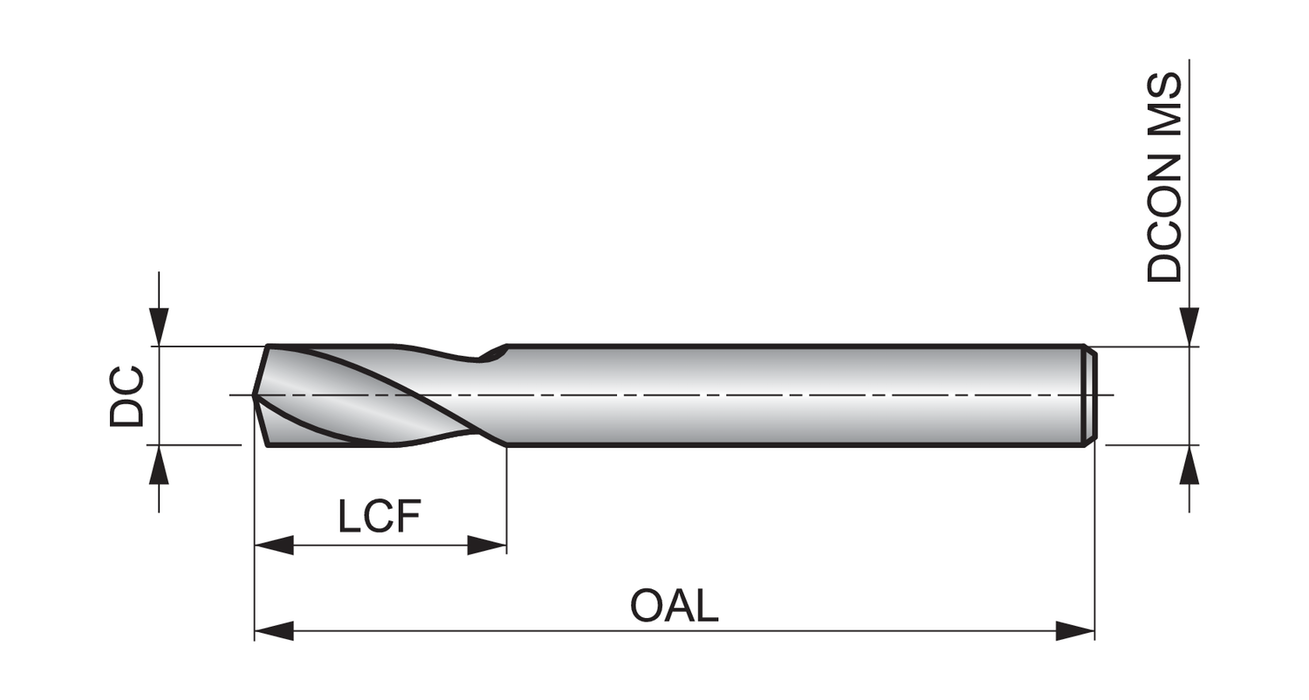

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)150°
Tool Information
ShankCylindrical shank
Direction of ToolLeft
StandardWork Norm
Reference Numbers
EDP Number7820762
EAN7320760891094
File Type Download
R12516.0 — 3D Model STP Download
R12516.0 — Line Drawing PDF Download
