H8511.1/64

H8511.1/64

SKU DOR7833351
by Dormer Pramet

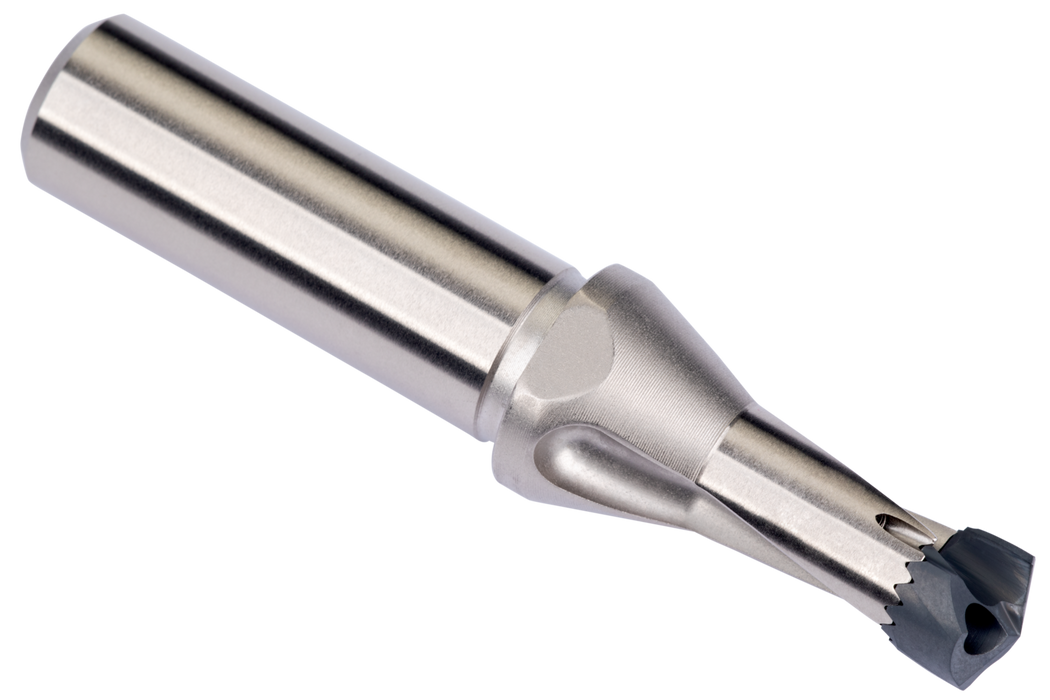

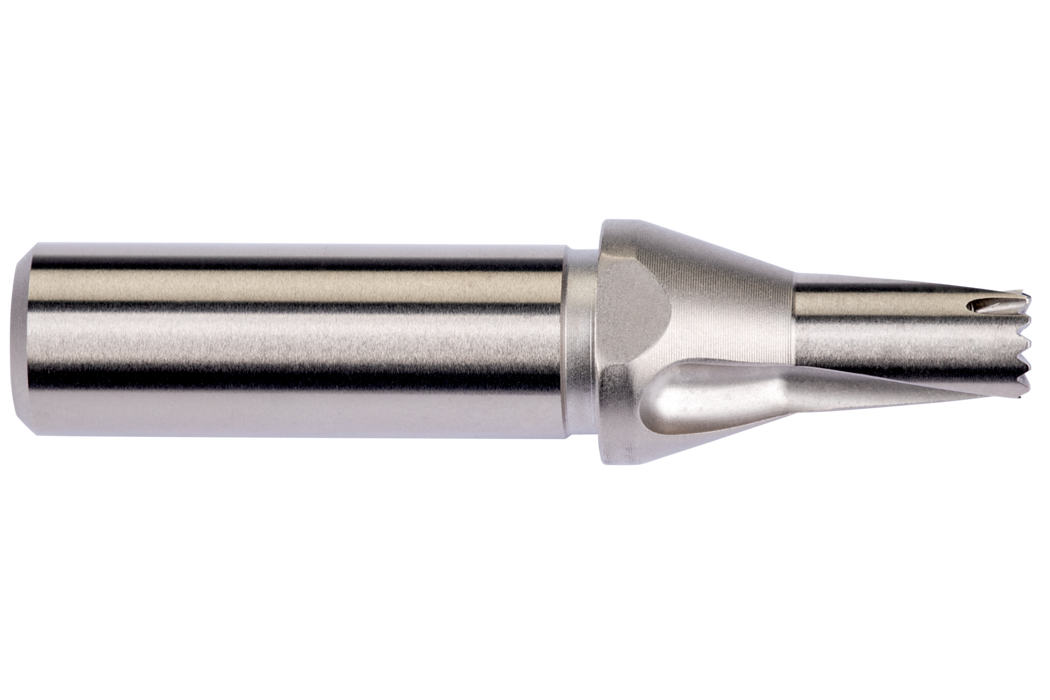

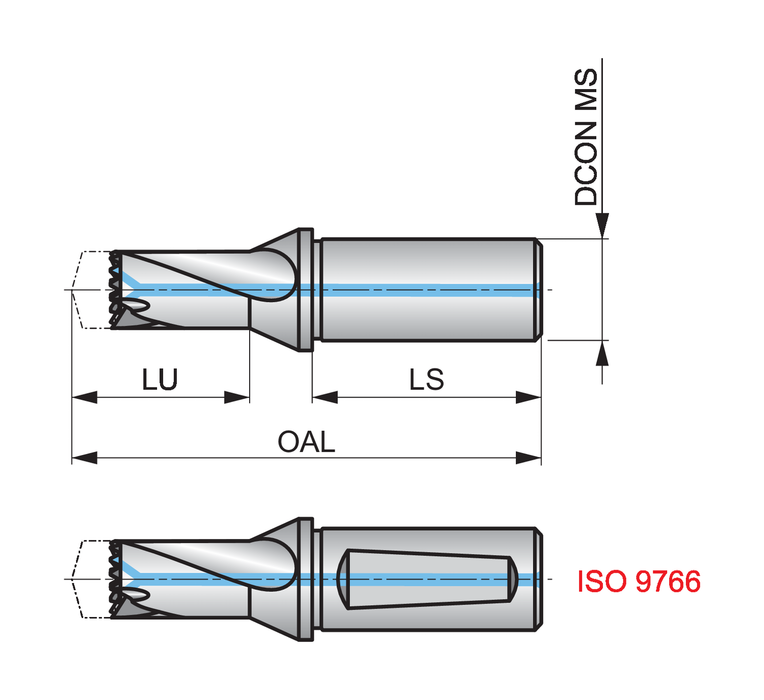

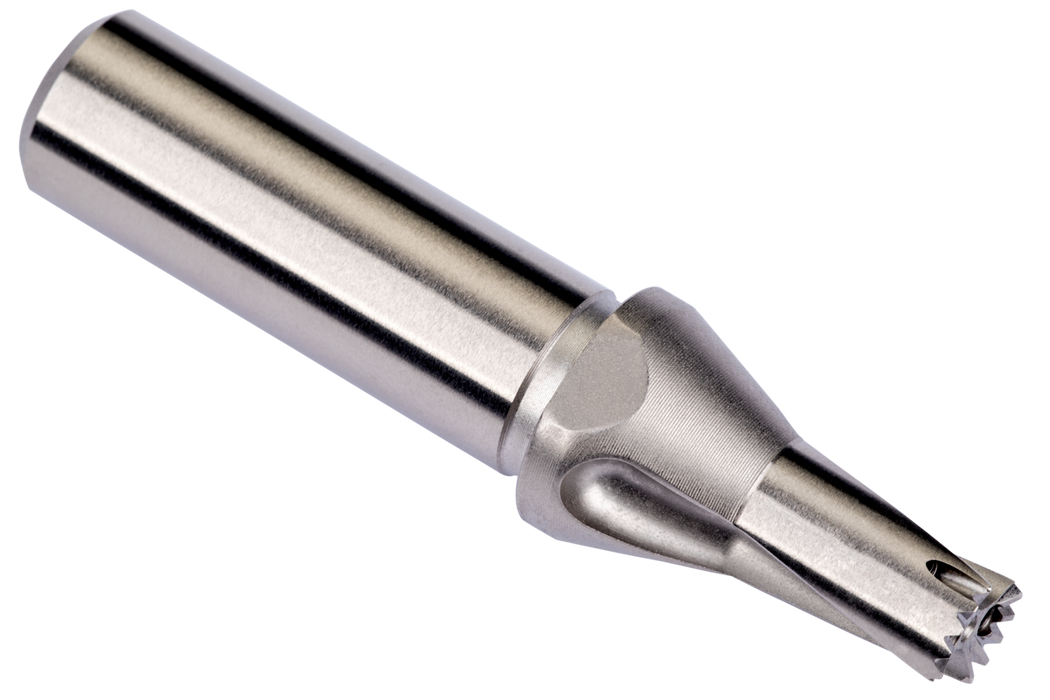

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 1.1/64" with an overall length of 124.7mm and flute length of 49.7mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.9843 up to 1.0156" (1.1/64)

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$596.00 - $596.00
$596.00
$596.00 - $596.00
$596.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Coating: Nickel Plated

Through Coolant: 1

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.9094

Connetion Diameter: 1.25

Tool Direction: Right

Shank: Hydra shank Cylindrical /ISO 9766

Usable Length: 1.9567

Grade: Nickel Plated

EDP: 7833351

EAN: 7320760894811

MFG Part Number: 7833351
