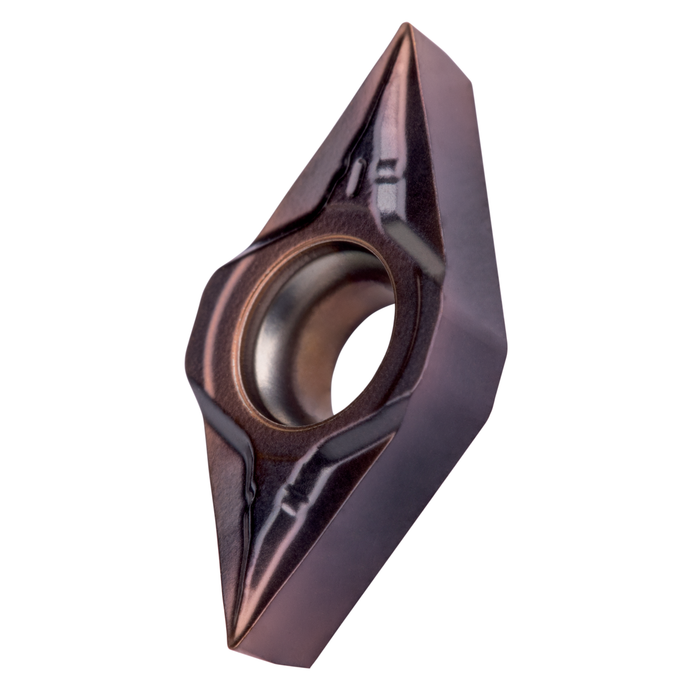

DCMT 32.50.5-UR:T8430

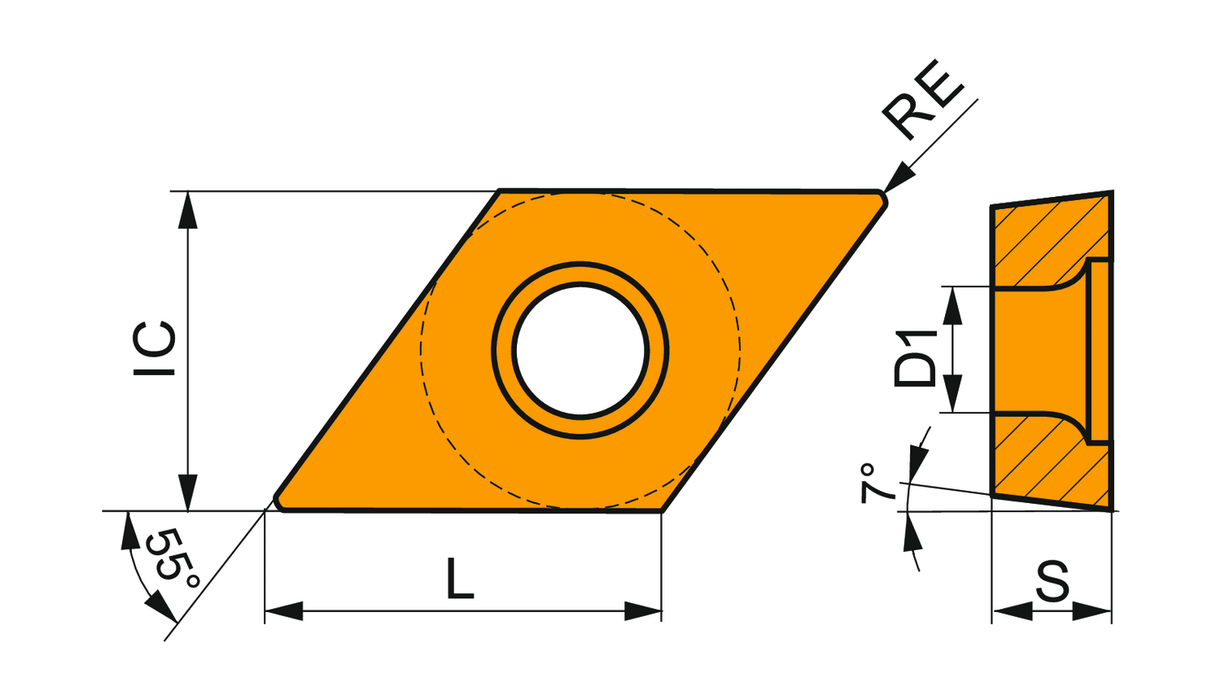

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to heavy machining of steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.375
Coating: T8430
Chip Breaker: UR
Insert Design: DCMT
Corner Radius (IN): 0.008
