TCMT 32.52-RM:T8430

TCMT 32.52-RM:T8430

SKU DOR7973862
by Dormer Pramet
Primary Use: Possible Use:

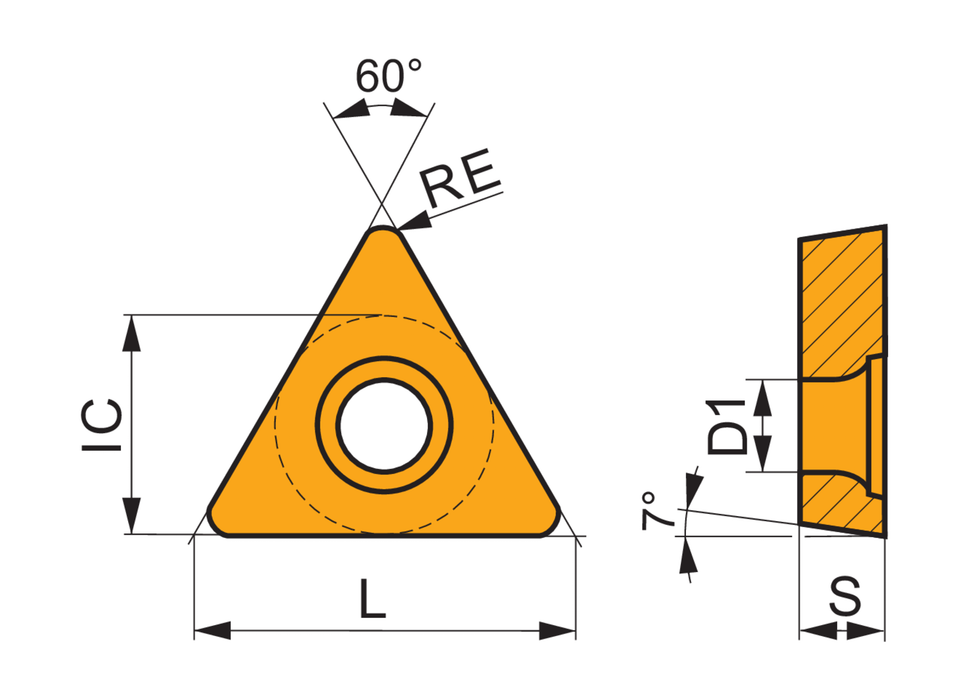

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.86 - $12.86
$12.86
$12.86 - $12.86
$12.86
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: TCMT

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.156

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Possible use

High Temp Alloys: Possible use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: RM

Grade: T8430

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7973862

EAN: 3603603814622

MFG Part Number: 7973862
