VBMT 330.5-UR:T8430

VBMT 330.5-UR:T8430

SKU DOR7973868
by Dormer Pramet
Primary Use: Possible Use:

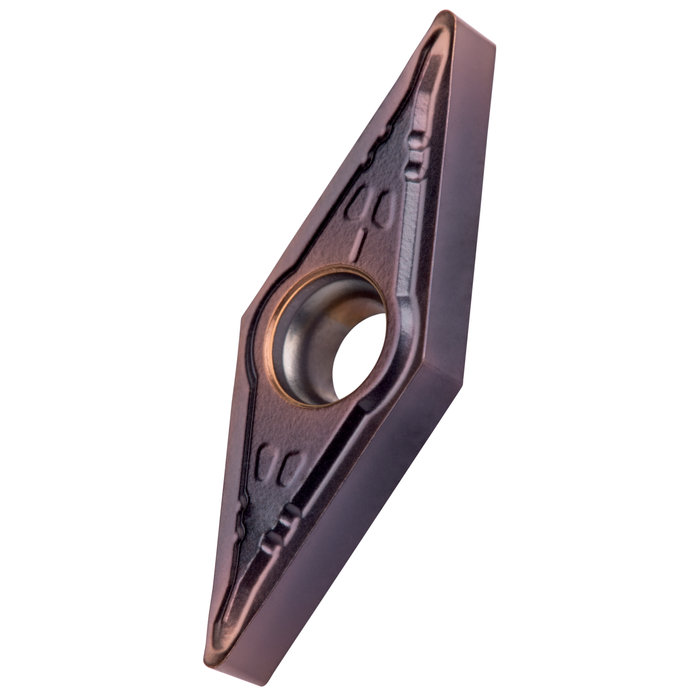

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.46 - $21.46
$21.46
$21.46 - $21.46
$21.46
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

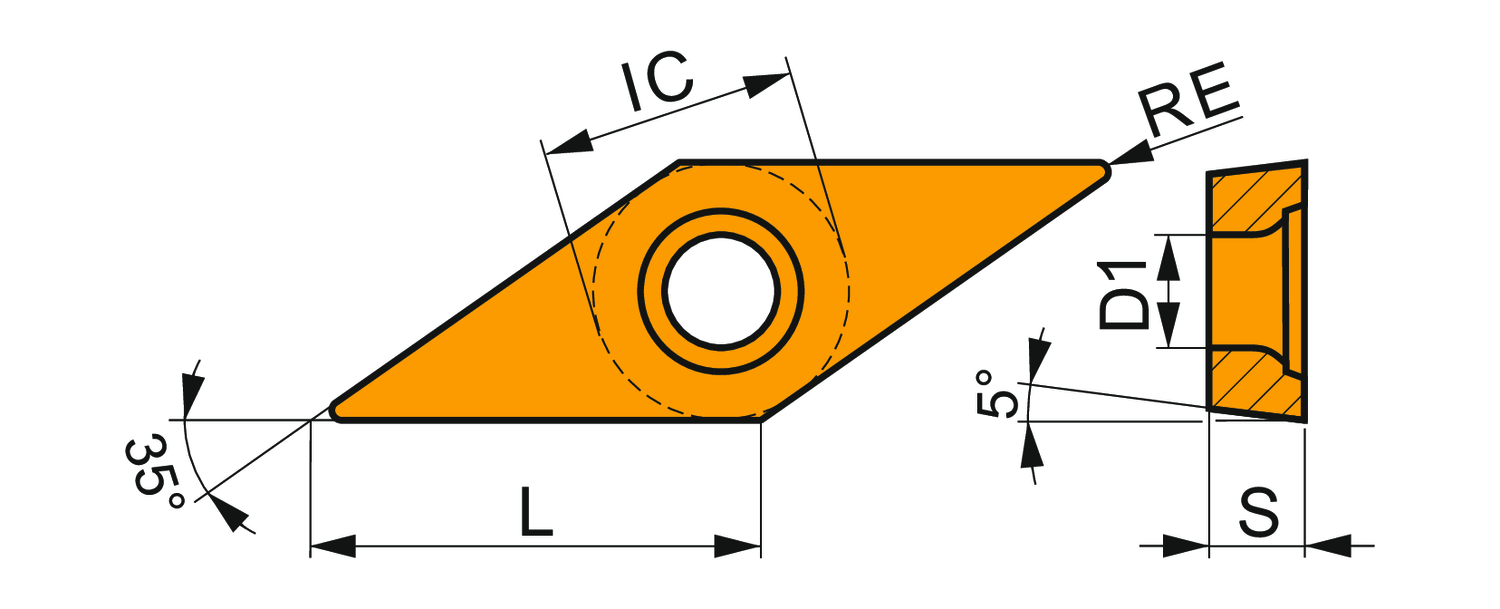

Insert Design: VBMT

Insert Shape Code: V - rhombic 35° included angle

Insert Shape Code: gid://shopify/Metaobject/145756749886

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Stainless Steel: Possible use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: UR

Grade: T8430

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7973868

EAN: 3603603814684

MFG Part Number: 7973868
