VCMT 222-UR:T8430
SKU DOR7973874
by Pramet

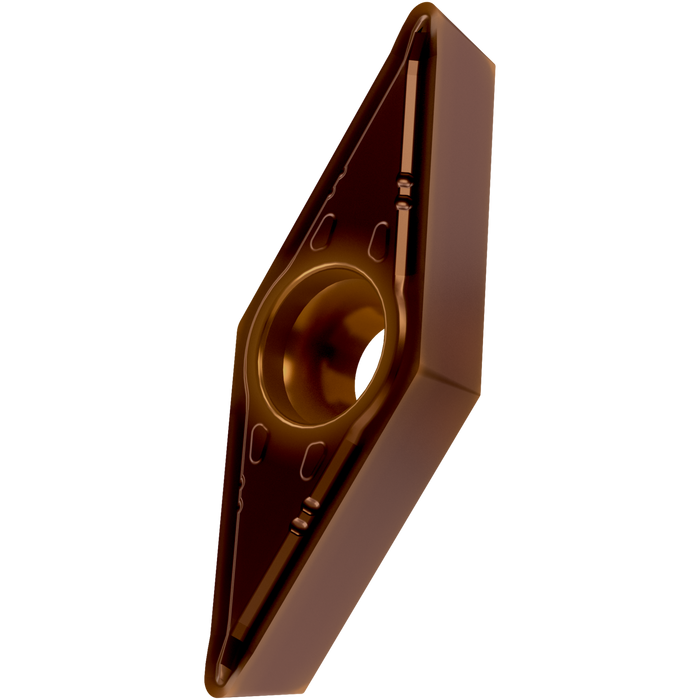

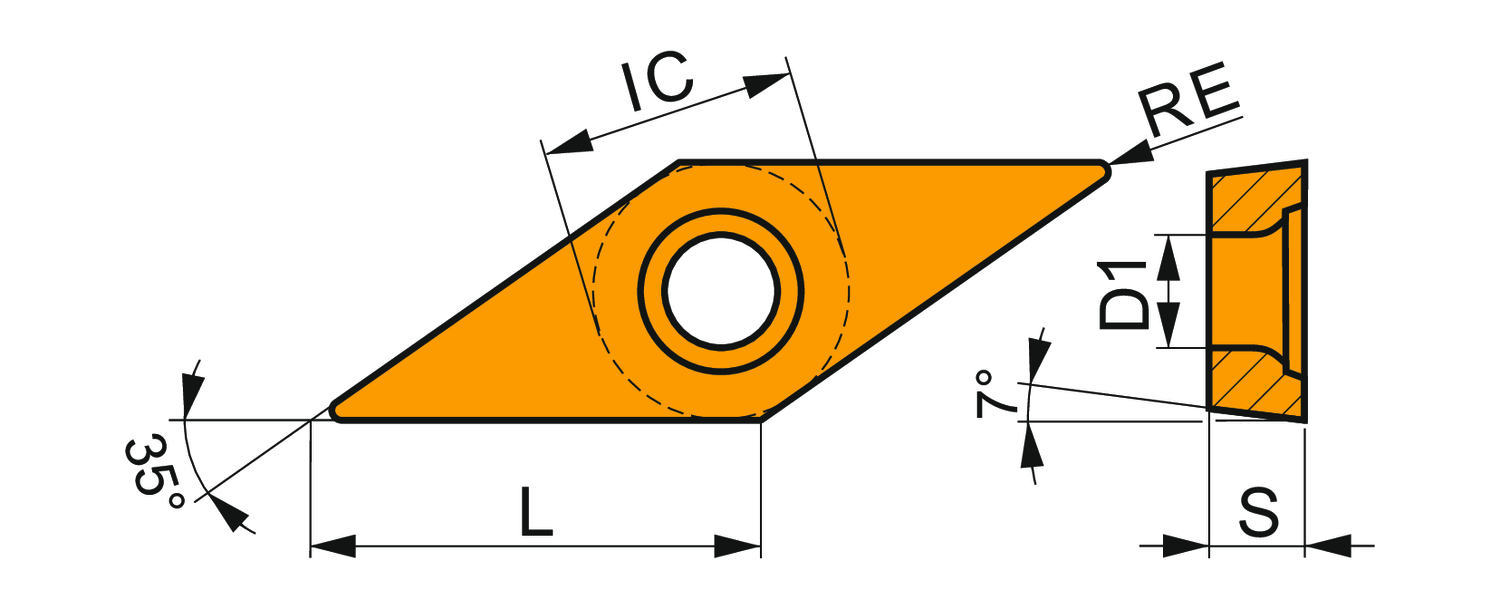

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 3.18mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to heavy machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$17.58
-
Original price
$17.58
Original price
$17.58
$17.58
-
$17.58
Current price
$17.58
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.25
Corner Radius - Inch: 0.031
Corner Radius - MM: 0.8
Grade: T8430
Chip Breaker: UR
Insert Design: VCMT
P - Steel and cast steel: Primary use
M - Stainless steel: Possible use
K - Cast Iron: Possible use
EAN: 3603603814745
MFG Part Number: 7973874
