DNMG 442-FM:T8430
SKU DOR7977123
by Pramet

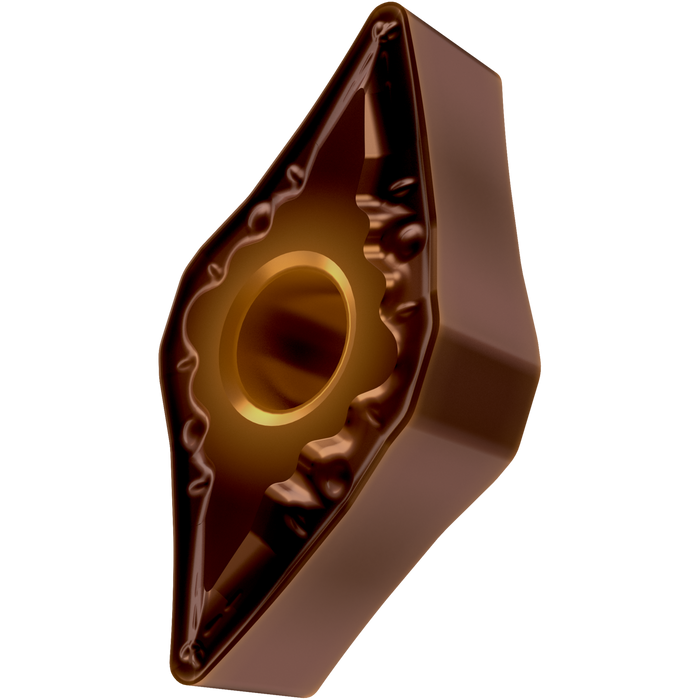

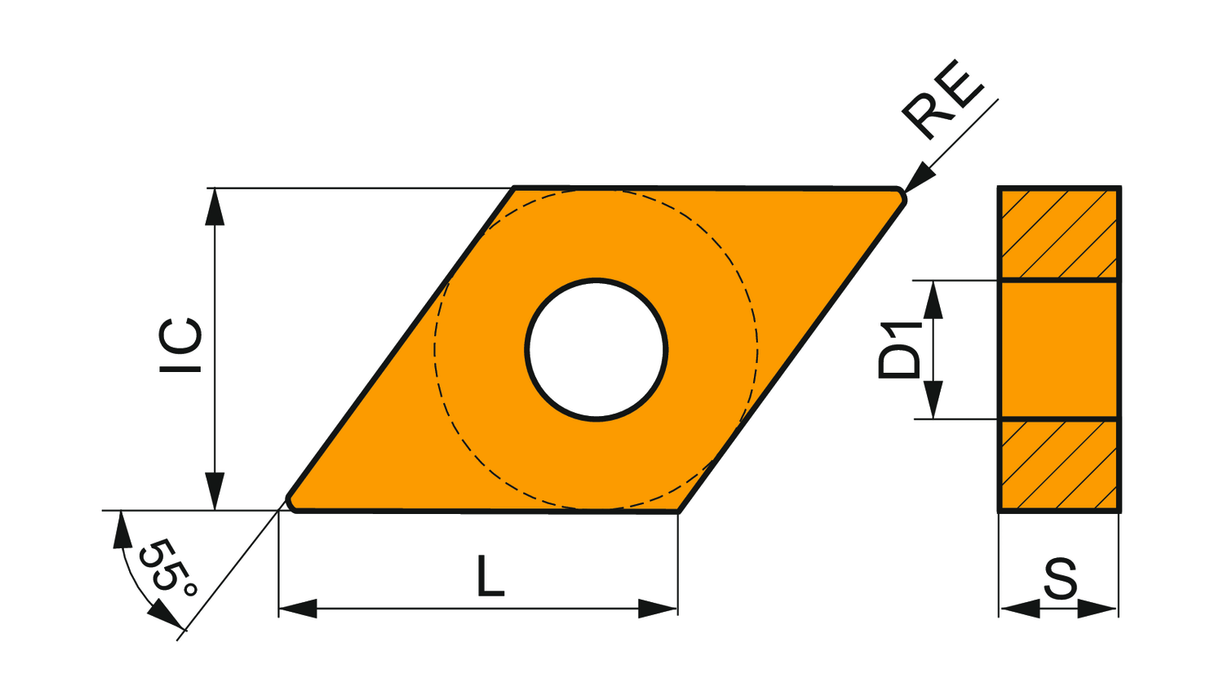

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$20.17
-
Original price
$20.17
Original price
$20.17
$20.17
-
$20.17
Current price
$20.17
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.5
Corner Radius - Inch: 0.031
Corner Radius - MM: 0.8
Grade: T8430
Chip Breaker: FM
Insert Design: DNMG
P - Steel and cast steel: Primary use
M - Stainless steel: Possible use
K - Cast Iron: Possible use
S - High-temperature alloys: Possible use
EAN: 3603603817395
MFG Part Number: 7977123
