DCMT 21.52-FF2:T8430

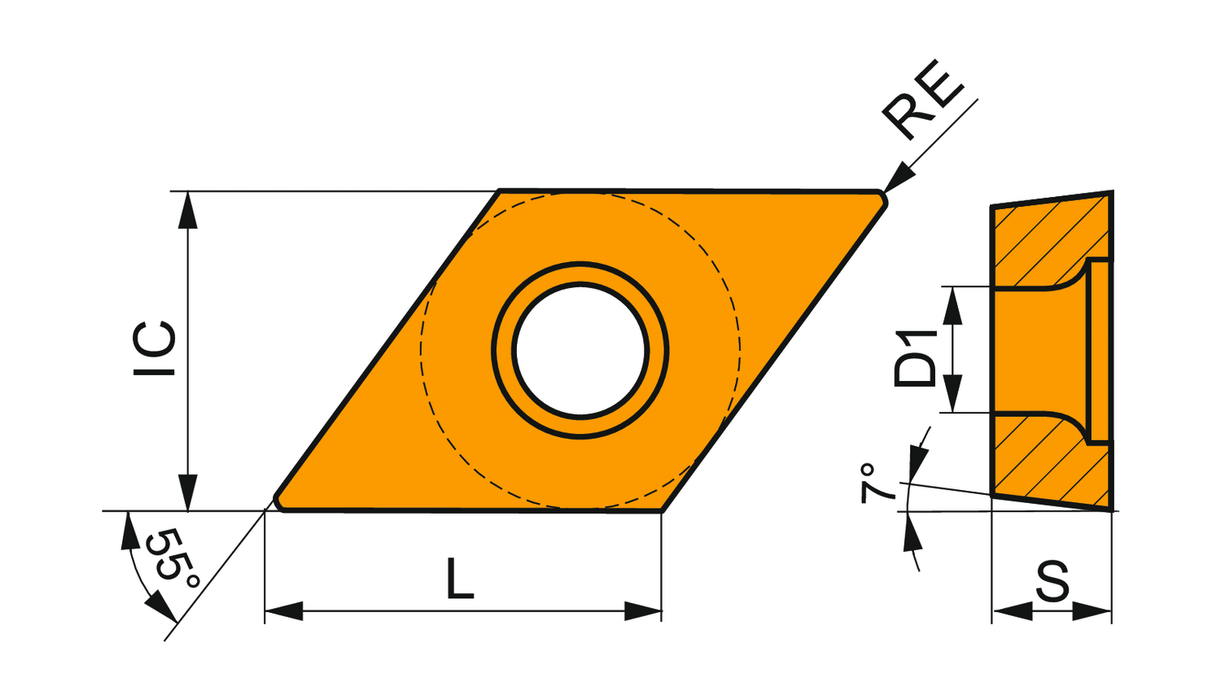

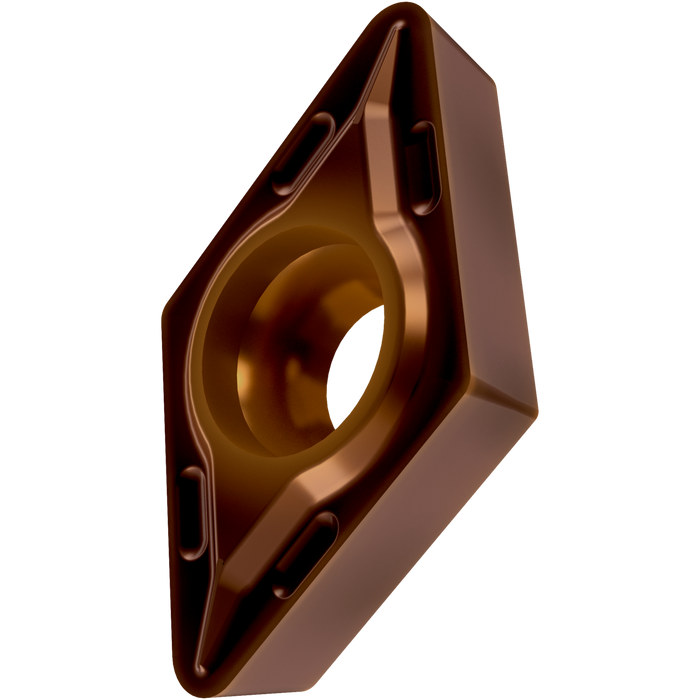

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.25
Coating: T8430
Chip Breaker: FF2
Insert Design: DCMT
Corner Radius (IN): 0.031
