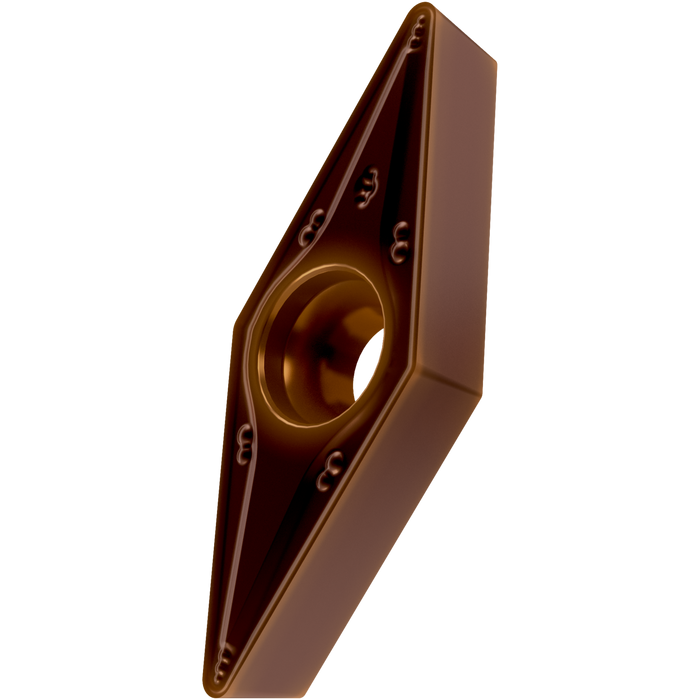

VBMT 333-RM:T8430

VBMT 333-RM:T8430

SKU DOR7977268
by Dormer Pramet
Primary Use: Possible Use:

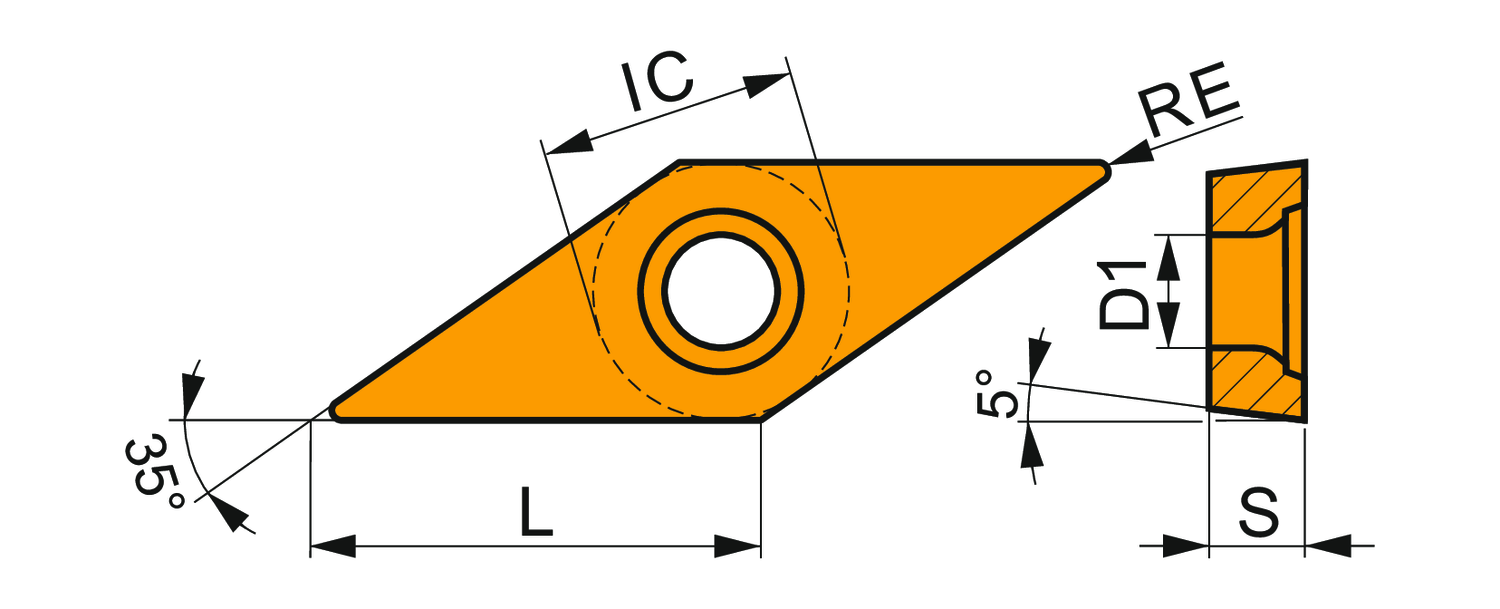

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.79 - $22.79
$22.79
$22.79 - $22.79
$22.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: VBMT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Possible use

High Temp Alloys: Possible use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: RM

Grade: T8430

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7977268

EAN: 3603603818798

MFG Part Number: 7977268
