VCGT 1.21.51-FF2:T8430

VCGT 1.21.51-FF2:T8430

SKU DOR7977271
by Dormer Pramet
Primary Use: Possible Use:

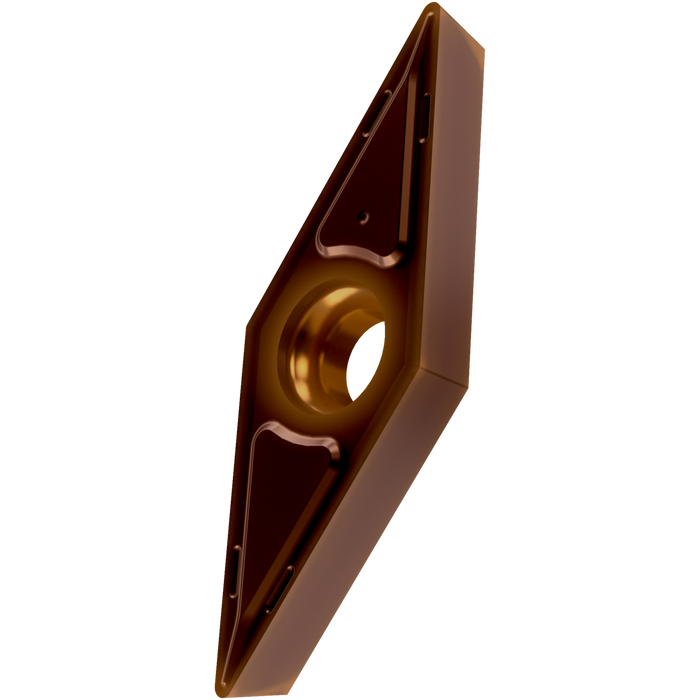

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 3.97mm, 2.38mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.33 - $24.33
$24.33
$24.33 - $24.33
$24.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

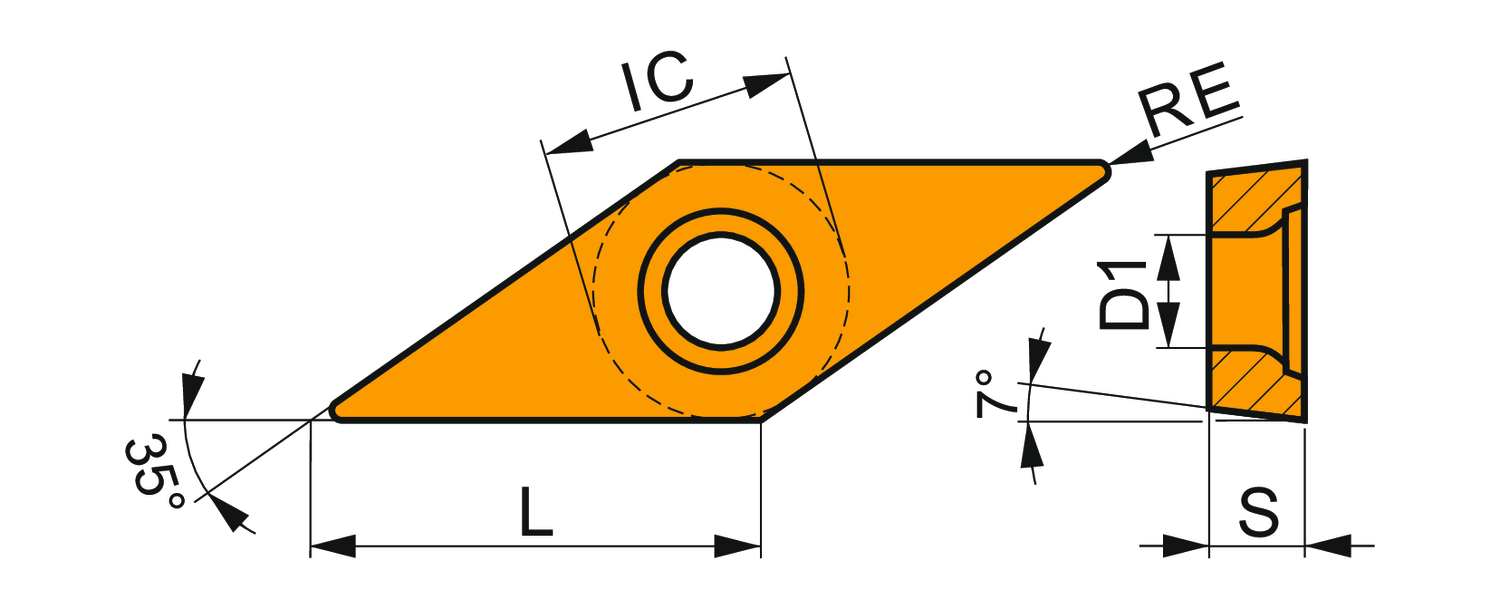

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.156

Chip Breaker: FF2

Grade: T8430

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7977271

EAN: 3603603818828

MFG Part Number: 7977271
