VCGT 2.520.5-FF2:T8430

VCGT 2.520.5-FF2:T8430

SKU DOR7977272
by Dormer Pramet
Primary Use: Possible Use:

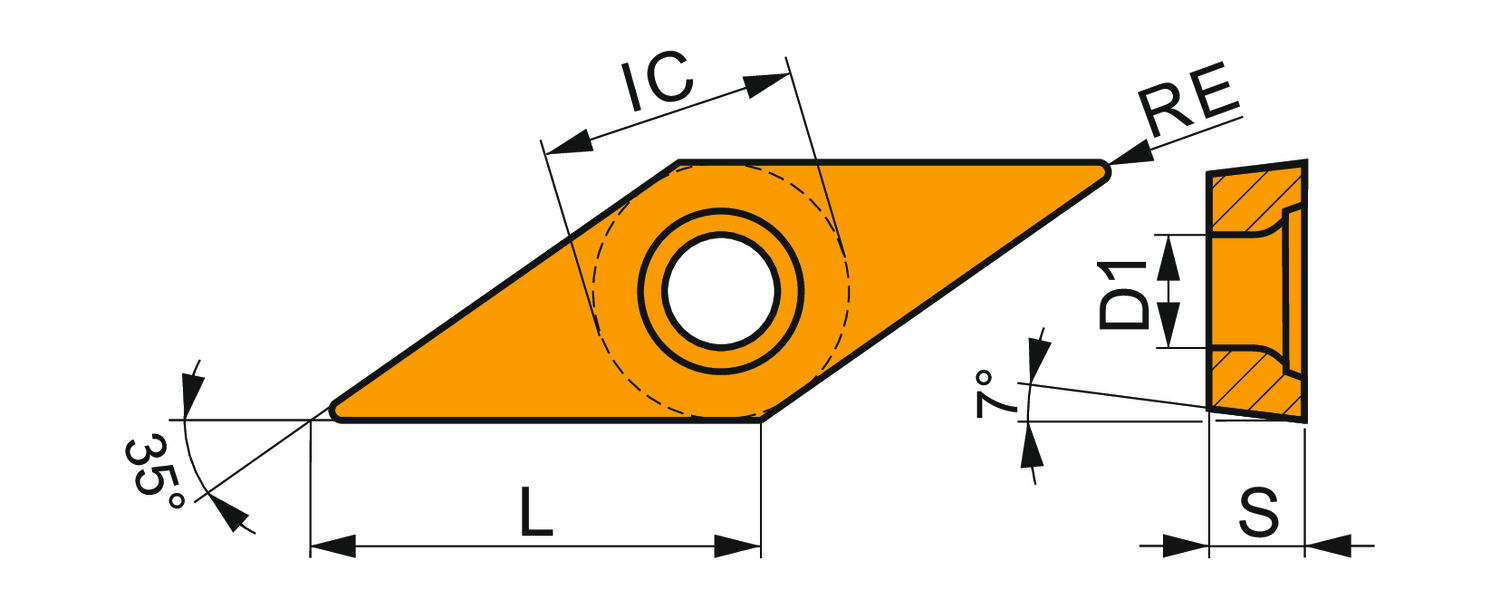

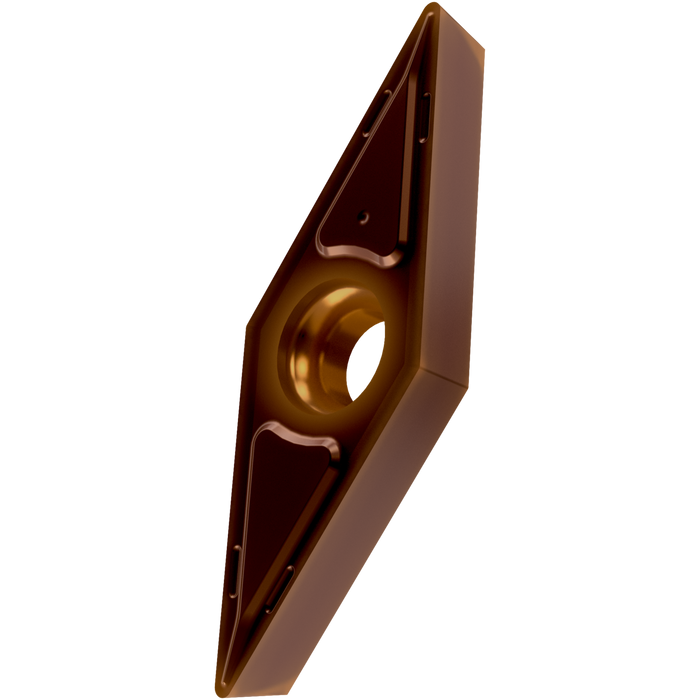

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 7.94mm, 3.18mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.40 - $21.40
$21.40
$21.40 - $21.40
$21.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: VCGT

Insert Shape Code: V - rhombic 35° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: FF2

Grade: T8430

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7977272

EAN: 3603603818835

MFG Part Number: 7977272
