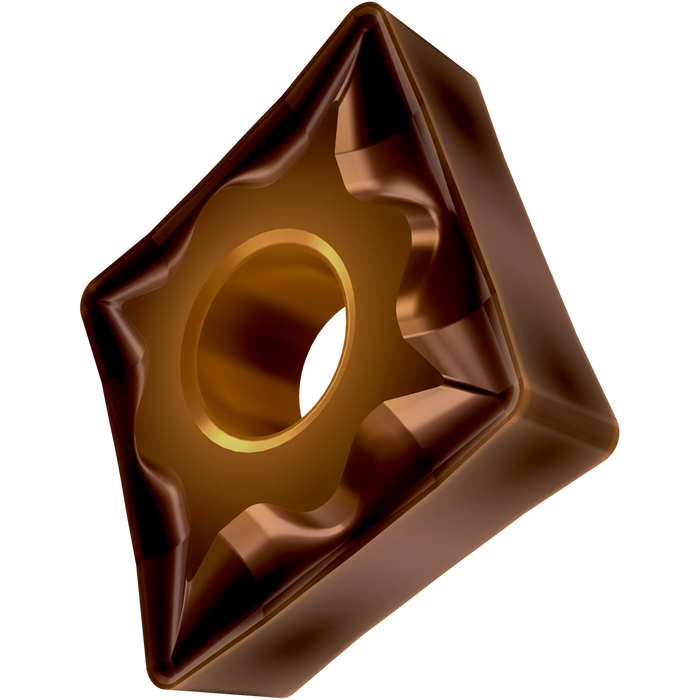

CNMG 433-NF:T8430

SKU PRA7977317
by Pramet

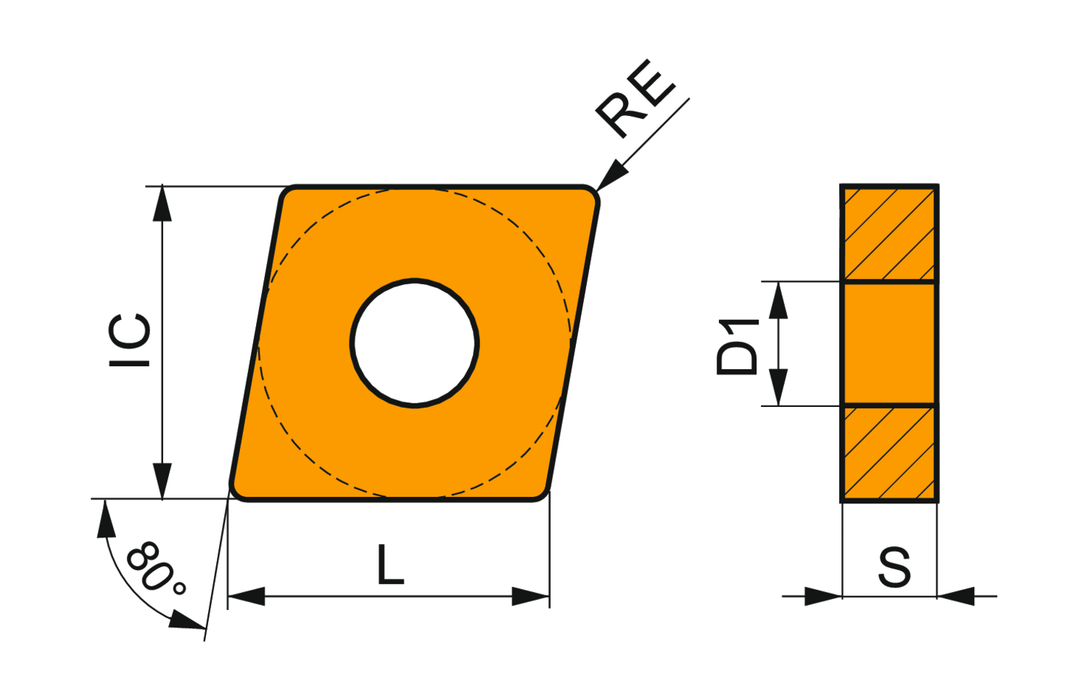

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to medium machining of steels and stainless-steels

Sold in packs of: 10

For more information about this product, click here
Original price $12.07 - Original price $12.07
Original price $12.07
$12.07
$12.07 - $12.07
Current price $12.07
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed circle diameter - inch (IC): 0.5

Coating: T8430

Chip Breaker: NF

Insert Design: CNMG

Corner Radius (IN): 0.047
