CNMM 866-NR2:T8430

CNMM 866-NR2:T8430

SKU DOR7977342
by Dormer Pramet
Primary Use: Possible Use:

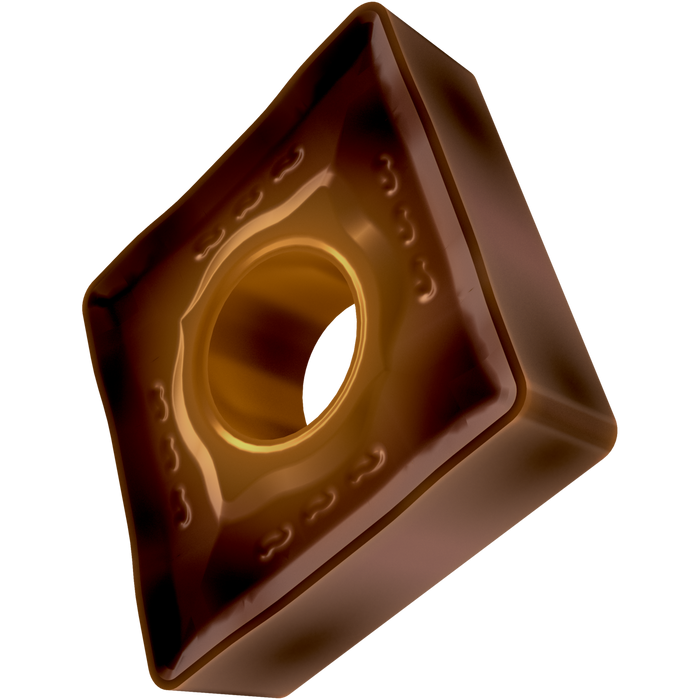

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for medium to extra heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$63.79 - $63.79
$63.79
$63.79 - $63.79
$63.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CNMM

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.375

Inscribed Circle Diameter: 1.0

Chip Breaker: NR2

Grade: T8430

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 7977342

EAN: 3603603819283

MFG Part Number: 7977342
