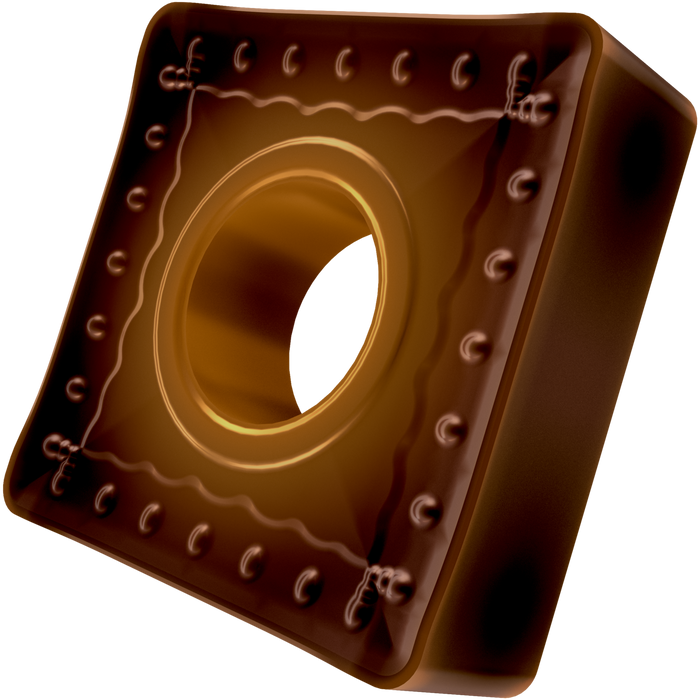

SNMM 866-OR:T8430

SNMM 866-OR:T8430

SKU DOR7977400
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for medium to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$61.79 - $61.79
$61.79
$61.79 - $61.79
$61.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: SNMM

Insert Shape Code: S - square

Insert Thickness: 0.375

Inscribed Circle Diameter: 1.0

Chip Breaker: OR_

Grade: T8430

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 7977400

EAN: 3603603819863

MFG Part Number: 7977400
