VNMG 333-FM:T8430

VNMG 333-FM:T8430

SKU DOR7977420
by Dormer Pramet
Primary Use: Possible Use:

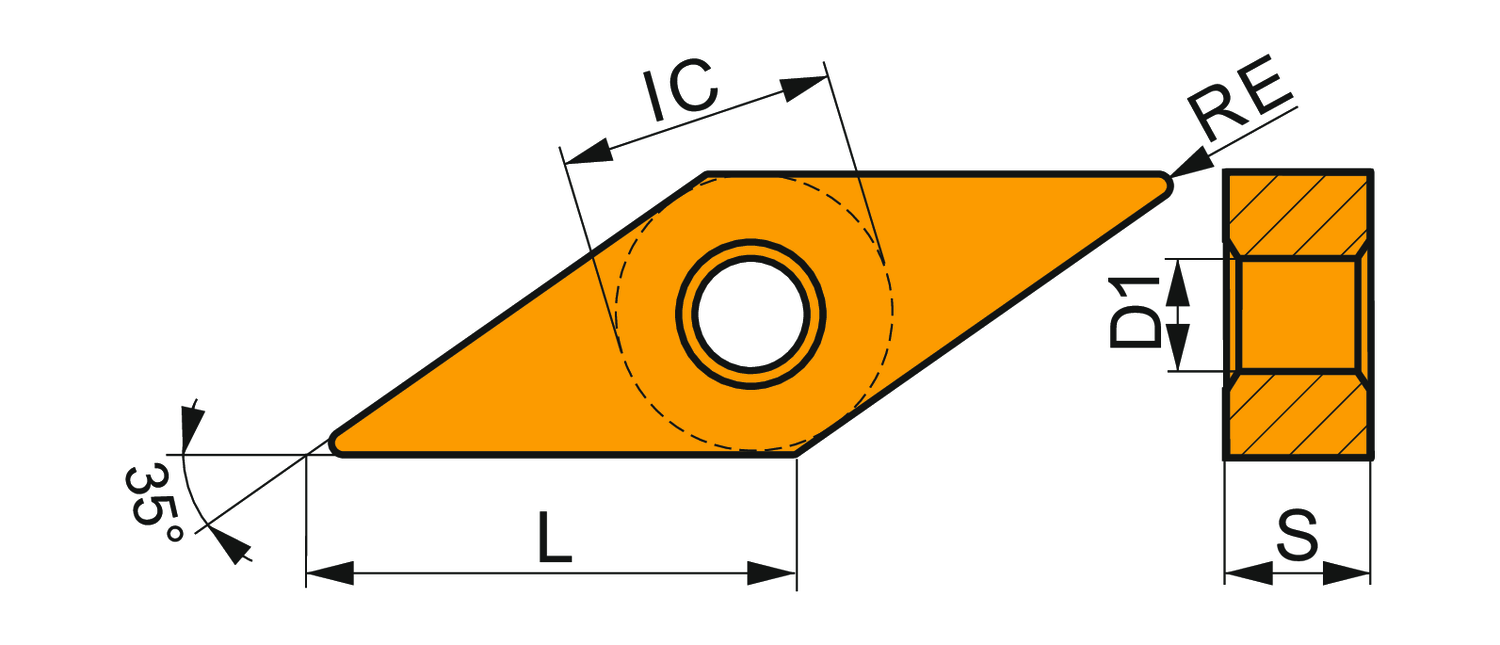

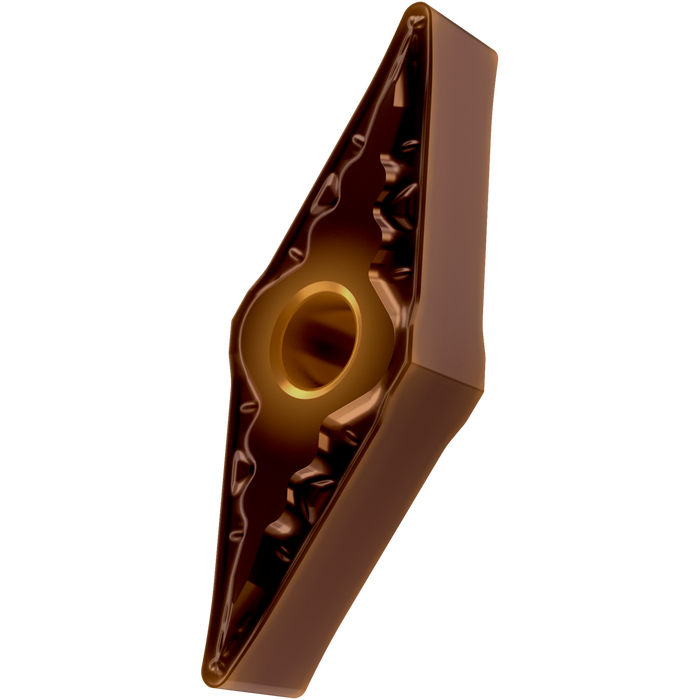

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels

Inventory
0 In Stock - Motool Edmonton (1-3 Day Delivery)
Check inventory on Dormer Pramet's website here.
Lead time for stocking warehouses:
ADC Warehouse (2-4 Day Delivery)
EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$18.26 - $18.26
$18.26
$18.26 - $18.26
$18.26
Enjoy same-day shipping on orders placed before 2:30 PM MST. Your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Inscribed Circle Diameter - IN: 0.375

Corner Radius - Inch: 0.047

Corner Radius - MM: 1.2

Grade: T8430

Chip Breaker: FM

EAN: 3603603820067

MFG Part Number: 7977420
