WNMG 331-SM:T8430

WNMG 331-SM:T8430

SKU DOR7977429
by Pramet

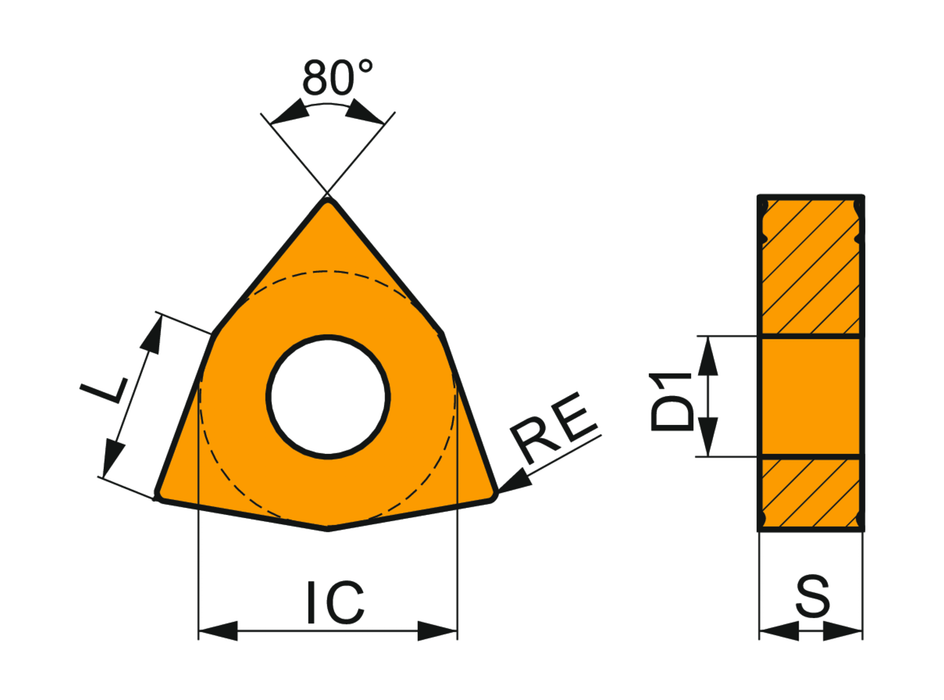

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to heavy machining of steels and stainless-steels

Sold in packs of: 10

For more information about this product, click here
$10.30 - $10.30
$10.30
$10.30 - $10.30
$10.30
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed Circle Diameter - IN: 0.375

Corner Radius - Inch: 0.016

Corner Radius - MM: 0.4

Grade: T8430

Chip Breaker: SM

Insert Design: WNMG

P - Steel and cast steel: Primary use

M - Stainless steel: Primary use

K - Cast Iron: Possible use

N - Non-ferrous metals: Possible use

H - Hardened materials: Possible use

S - High-temperature alloys: Possible use

EAN: 3603603820159

MFG Part Number: 7977429
