CCMT 432-RF:T9325

CCMT 432-RF:T9325

SKU DOR8014938
by Dormer Pramet
Primary Use: Possible Use:

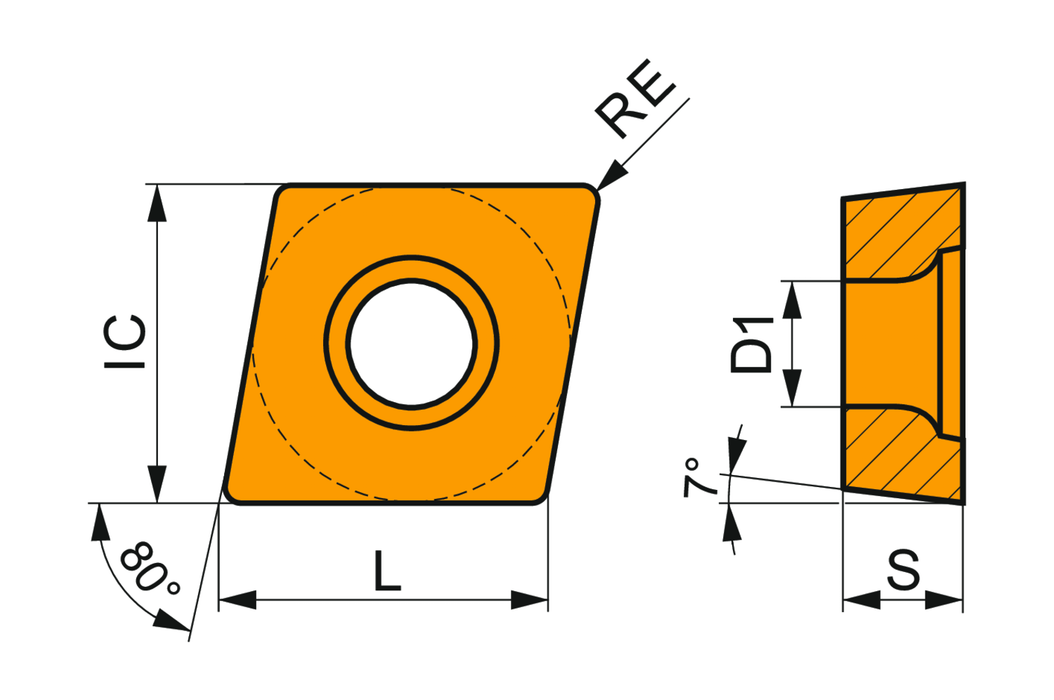

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.54 - $16.54
$16.54
$16.54 - $16.54
$16.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: RF

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8014938

EAN: 3603603844070

MFG Part Number: 8014938
