TCMT 32.52-RF:T9325

TCMT 32.52-RF:T9325

SKU DOR8014997
by Dormer Pramet
Primary Use: Possible Use:

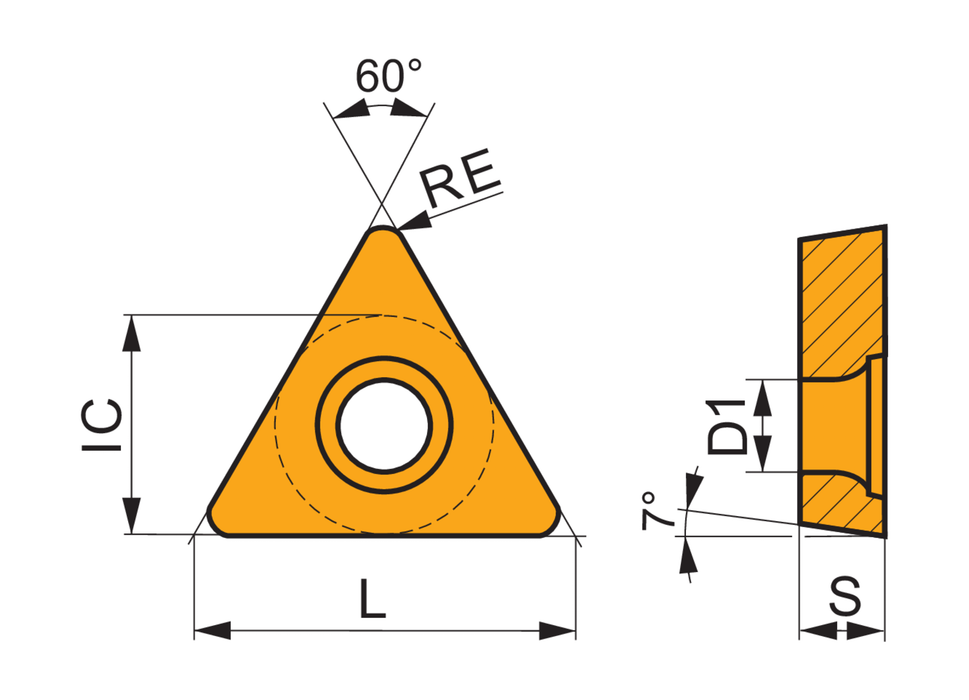

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.19 - $14.19
$14.19
$14.19 - $14.19
$14.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: TCMT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: RF

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8014997

EAN: 3603603844162

MFG Part Number: 8014997
