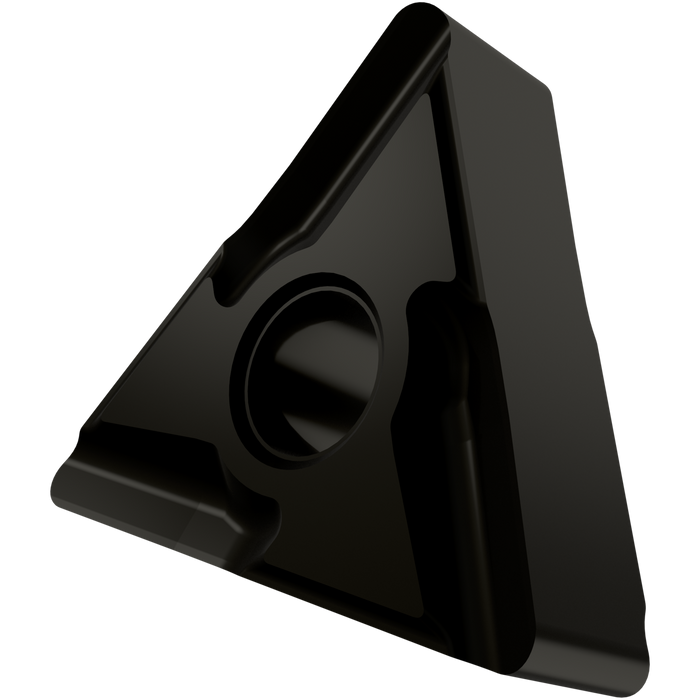

TNMG 332R-SI:T9335

TNMG 332R-SI:T9335

SKU DOR8015001
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SI with rounded cutting edges, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20 -P45 and M15 -M40, for medium to heavy machining of steels and stainless-steels with a right handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.00 - $12.00
$12.00
$12.00 - $12.00
$12.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

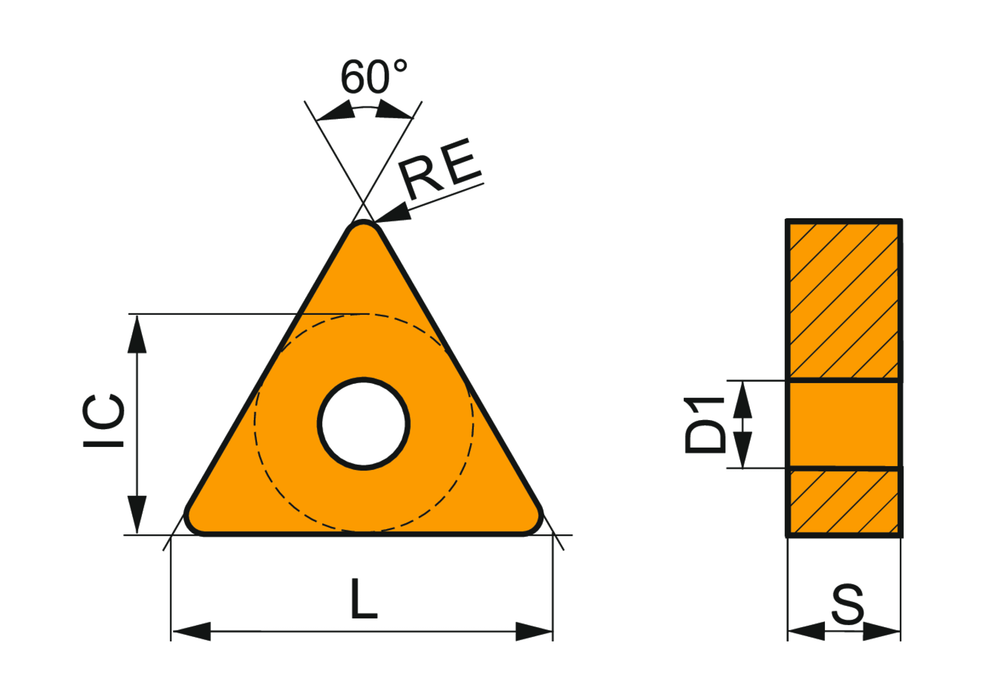

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: SI

Grade: T9335

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8015001

EAN: 3603603844209

MFG Part Number: 8015001
