S6502.5

S6502.5

SKU DOR8030282
by Dormer Pramet
Primary Use:

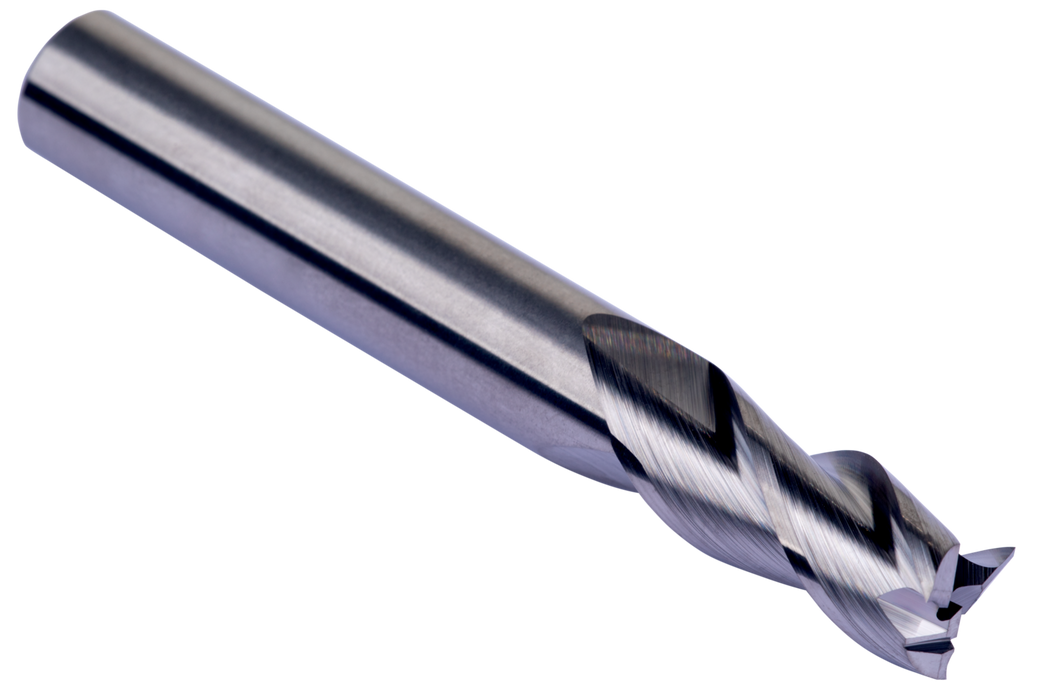

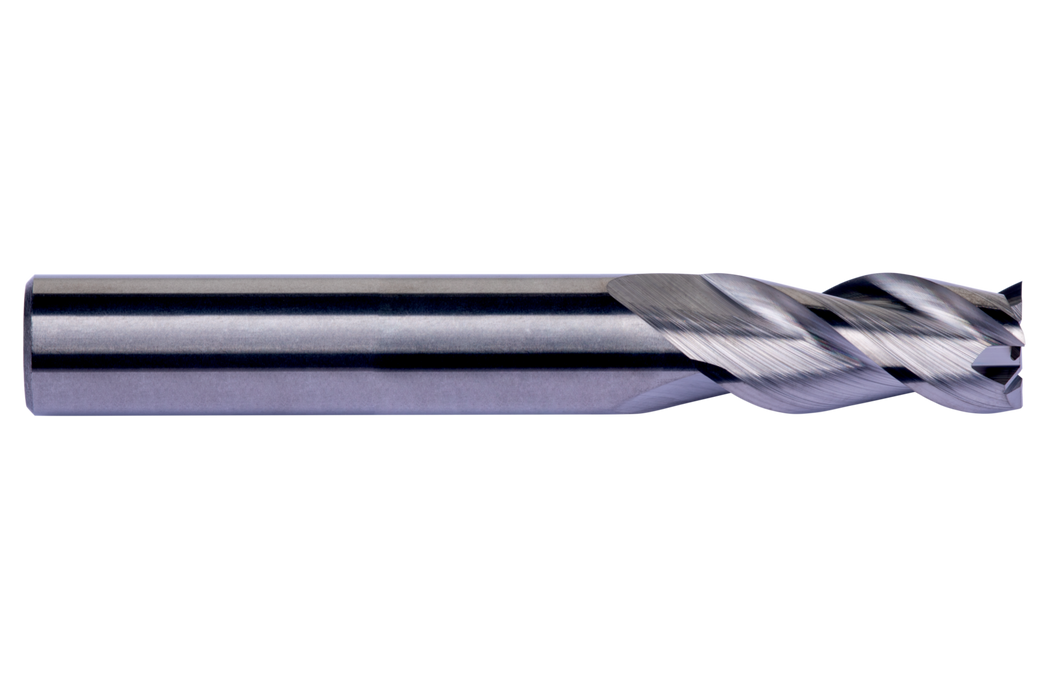

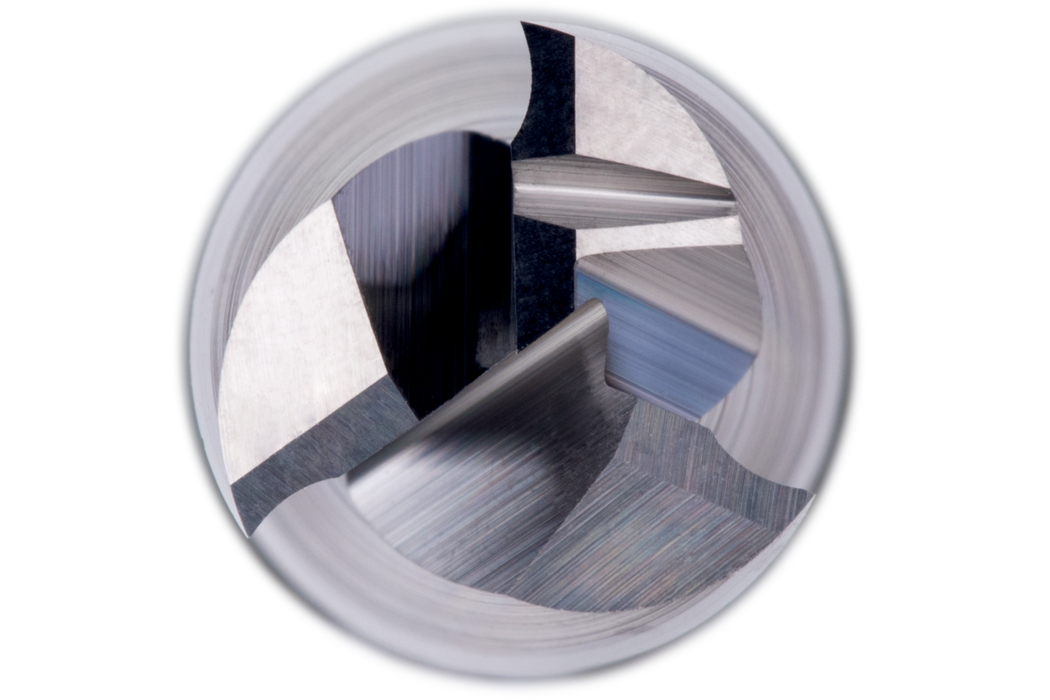

Short series End mill with 3 flutes, diameter 2.5mm with 6.5mm length of cut and 40mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 40° helix with differential pitch and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$45.77 - $45.77
$45.77
$45.77 - $45.77
$45.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

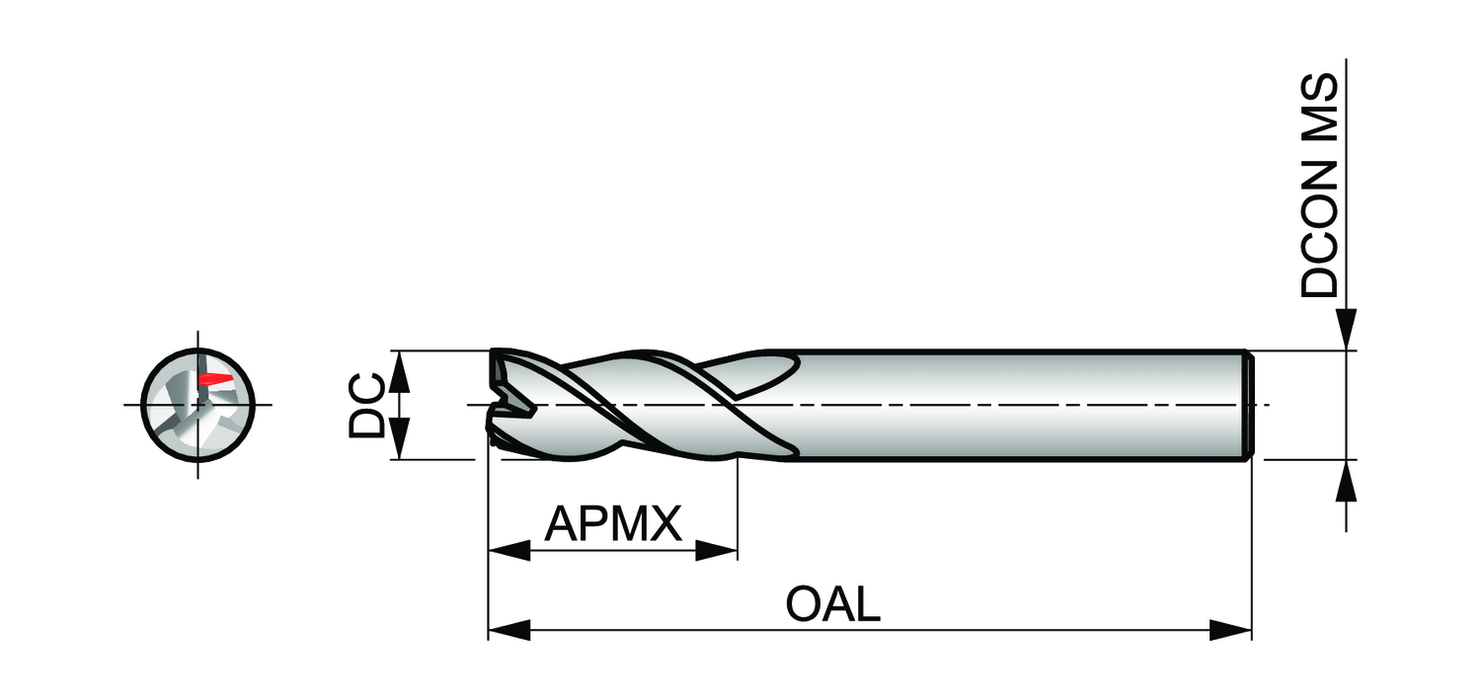

Material: HM

Cutting Diameter - in (DC): 0.0984

Cutting Diameter - mm (DC): 2.5

Through Coolant: 0

Overall Length (OAL): 1.5748

Connetion Diameter: 0.1575

Max. Depth of Cut: 0.2559

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

EDP: 8030282

EAN: 7320760950043

MFG Part Number: 8030282
