S6504.0XD6

S6504.0XD6

SKU DOR8030286
by Dormer Pramet
Primary Use:

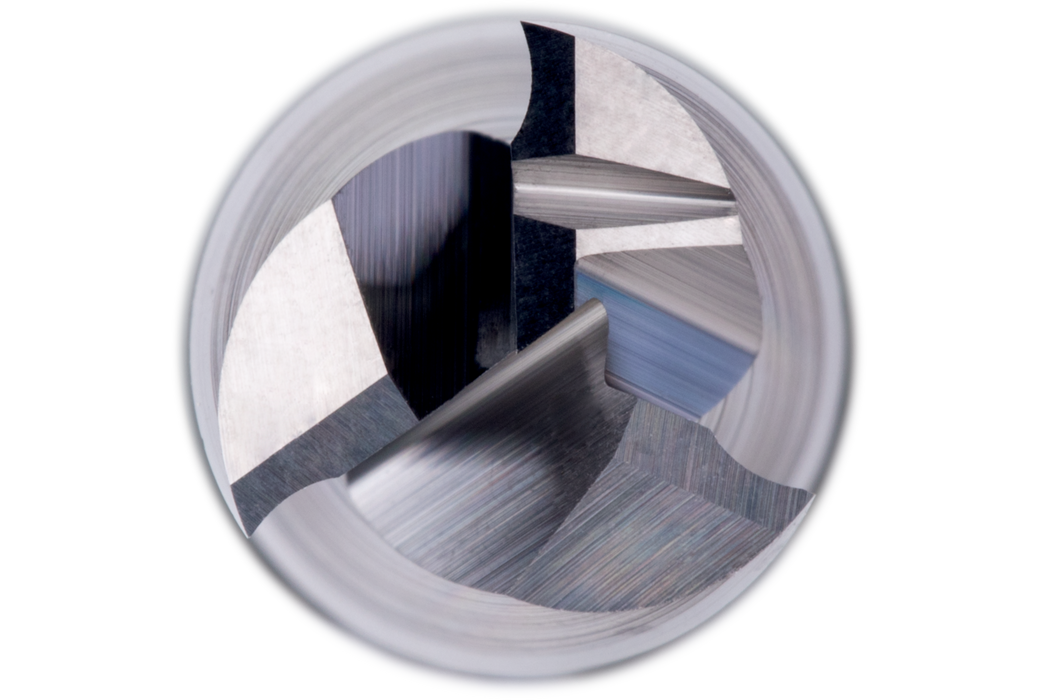

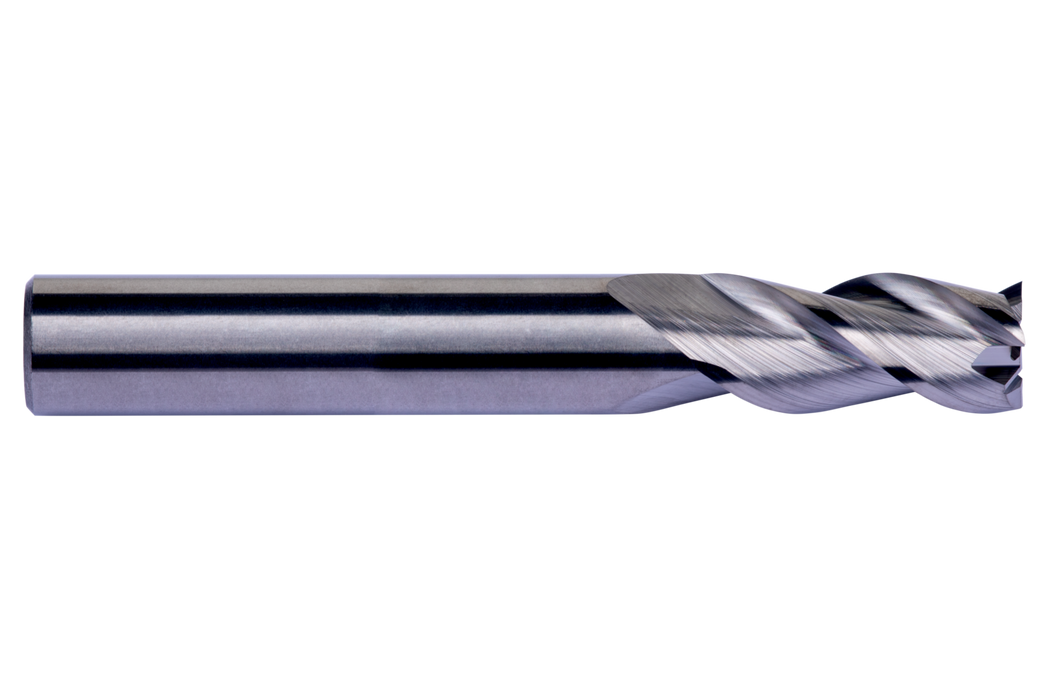

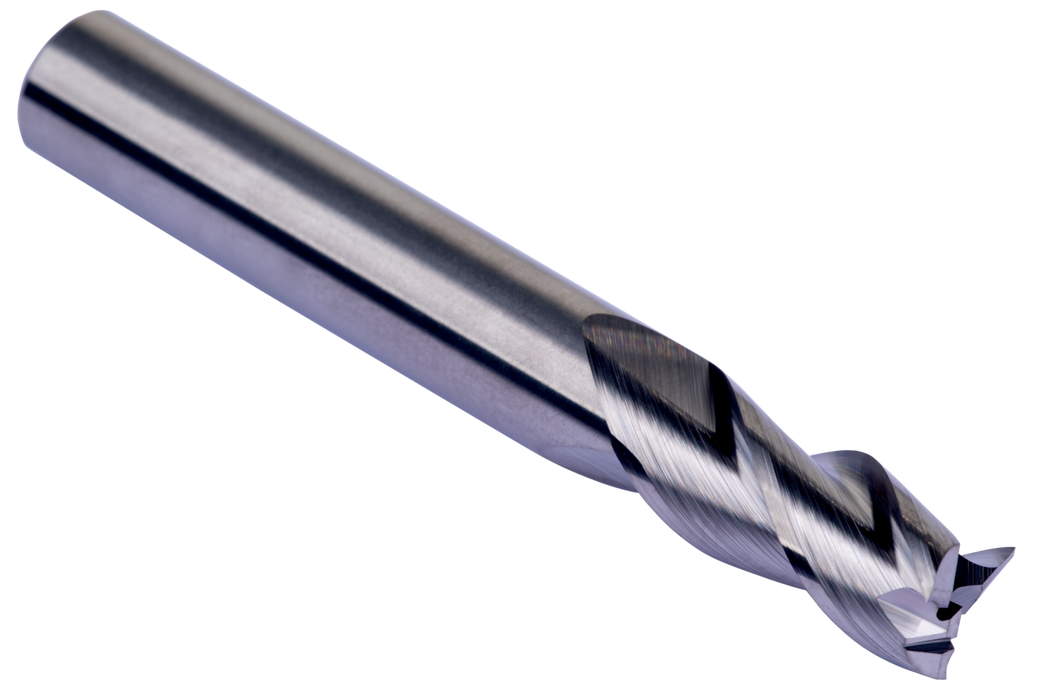

Short series End mill with 3 flutes, diameter 4mm with 12mm length of cut and 50mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with bright finish, 40° helix with differential pitch and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$47.20 - $47.20
$47.20
$47.20 - $47.20
$47.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

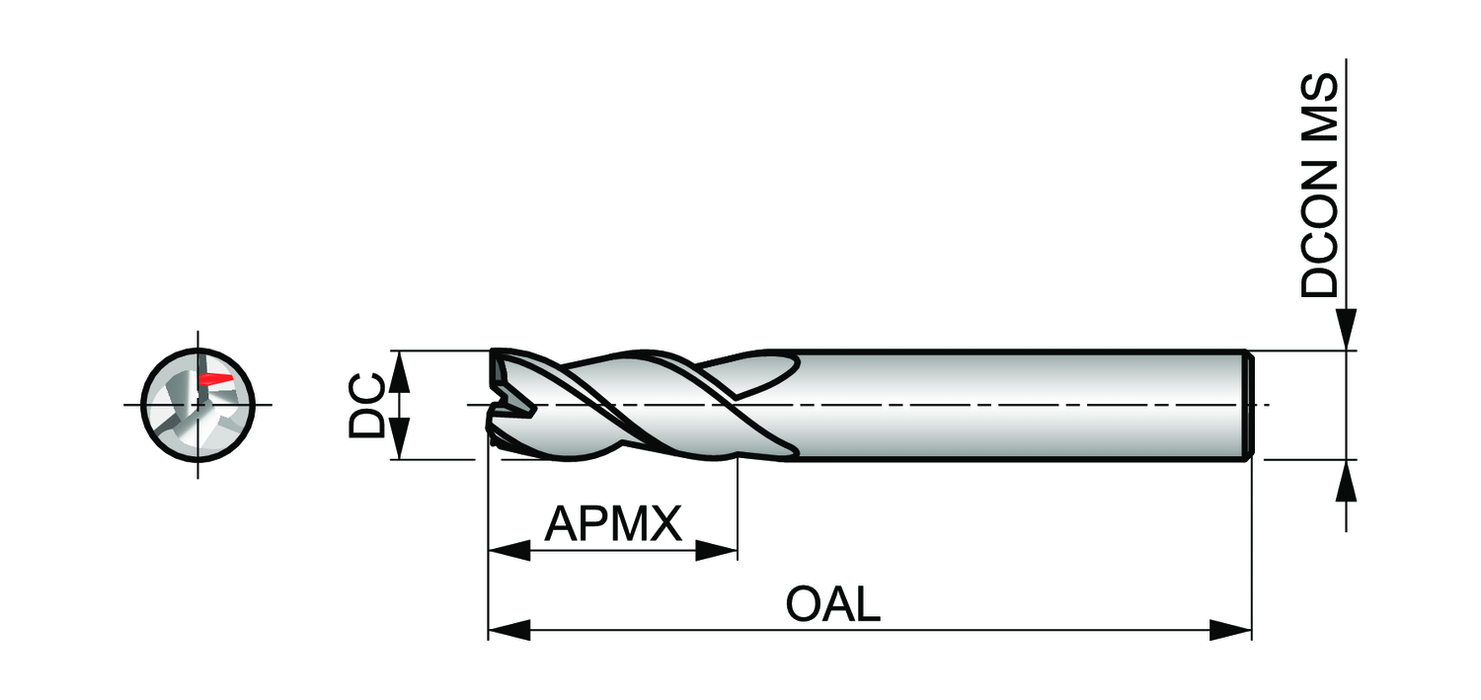

Cutting Diameter - in (DC): 0.1575

Cutting Diameter - mm (DC): 4.0

Through Coolant: 0

Overall Length (OAL): 1.9685

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.4724

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

EDP: 8030286

EAN: 7320760950081

MFG Part Number: 8030286
