S65010.0

S65010.0

SKU DOR8030290
by Dormer Pramet
Primary Use:

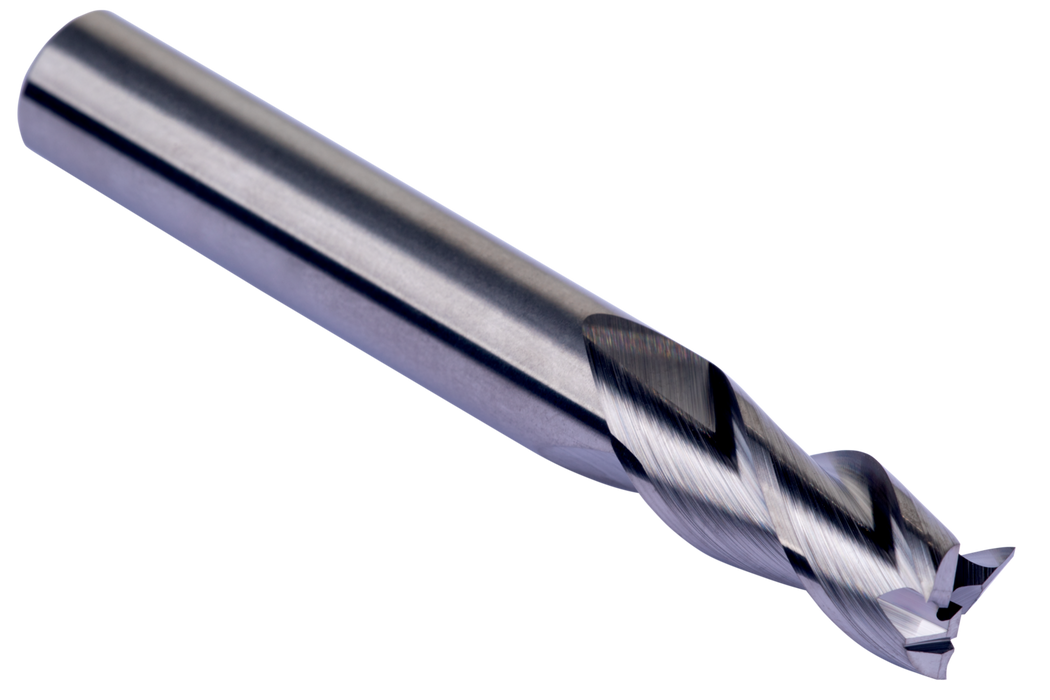

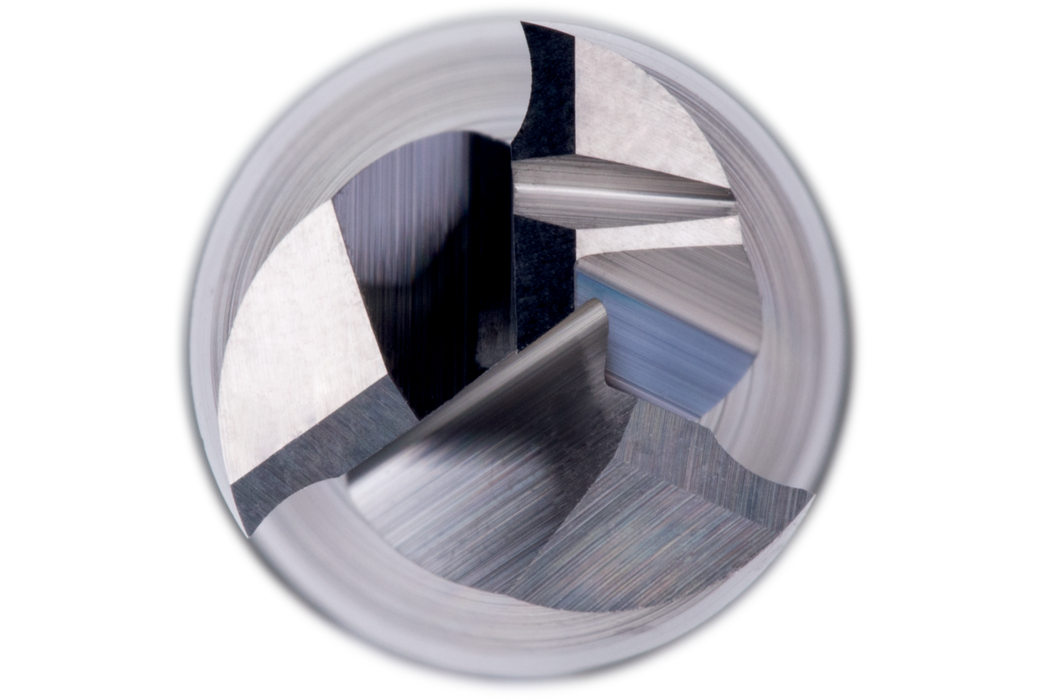

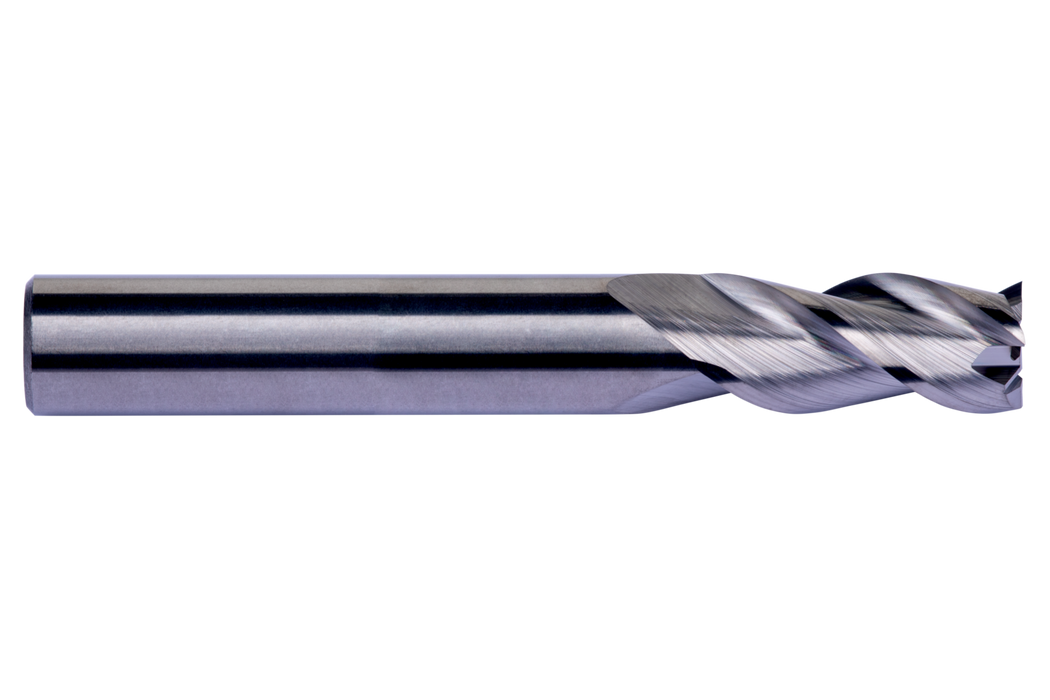

Short series End mill with 3 flutes, diameter 10mm with 22mm length of cut and 70mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 40° helix with differential pitch and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$89.33 - $89.33
$89.33
$89.33 - $89.33
$89.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

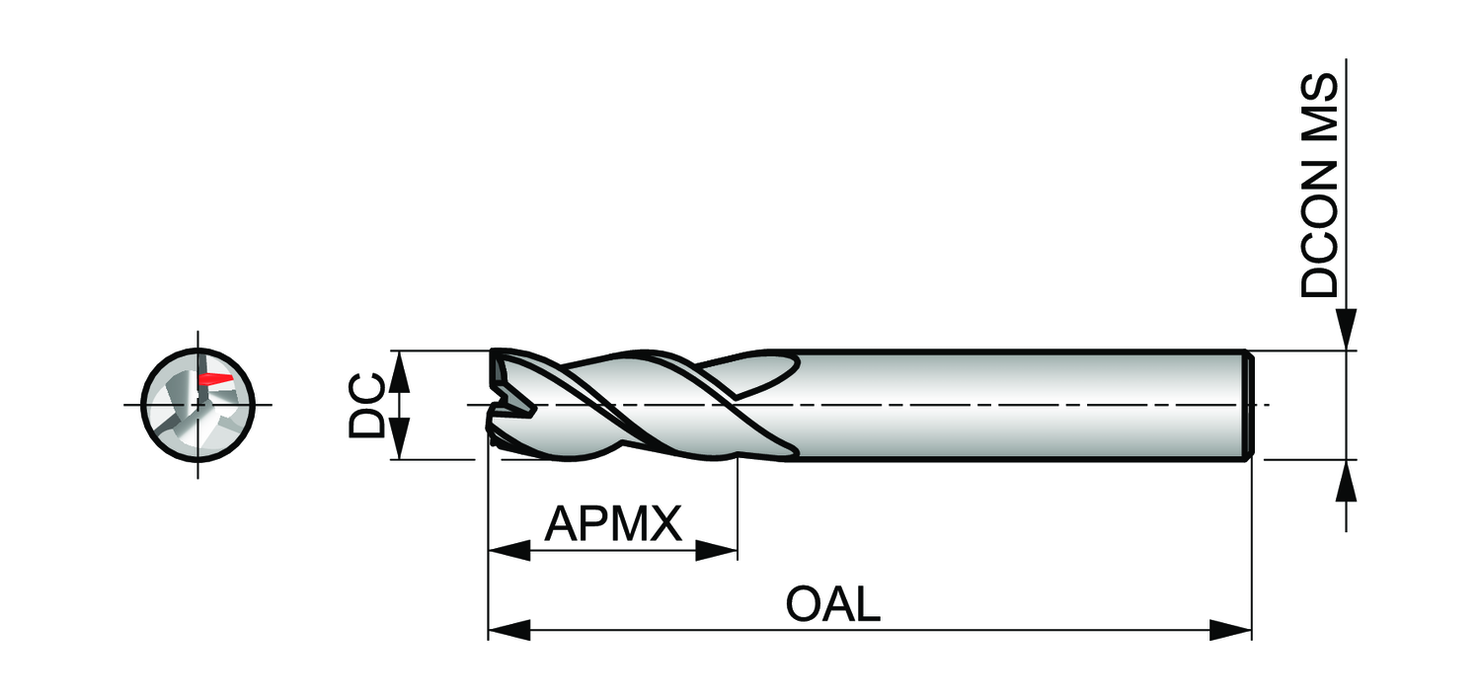

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Through Coolant: 0

Overall Length (OAL): 2.7559

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

EDP: 8030290

EAN: 7320760950128

MFG Part Number: 8030290
