SKU DOR8030294
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$284.37 CAD - $284.37 CAD
$284.37 CAD
$284.37 CAD - $284.37 CAD
$284.37 CAD

Sold in packs of: 1

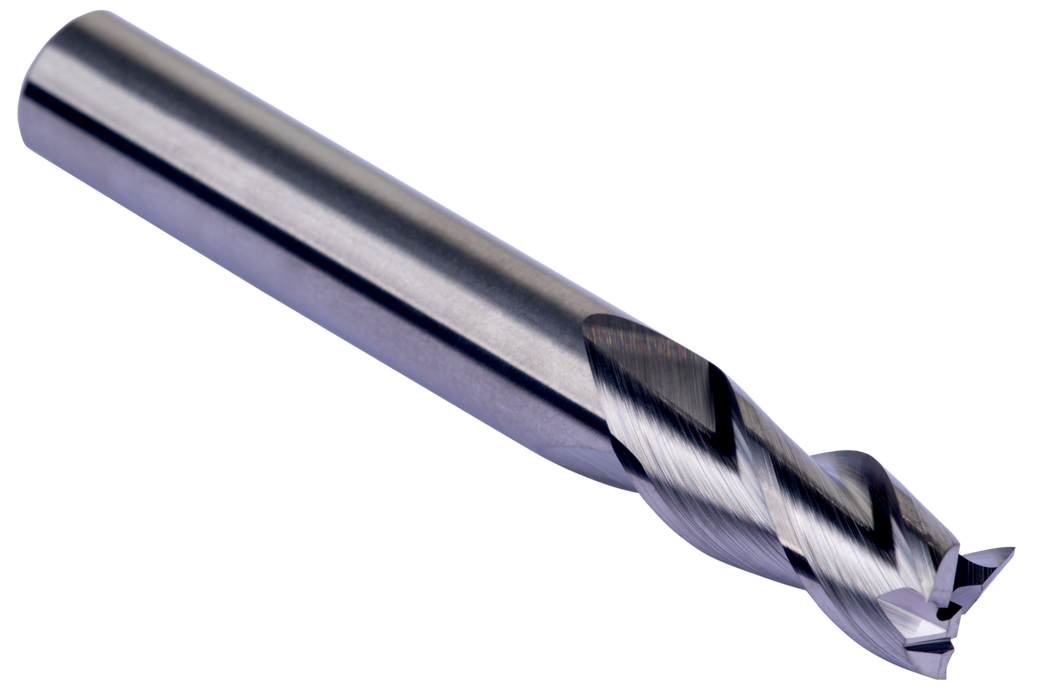

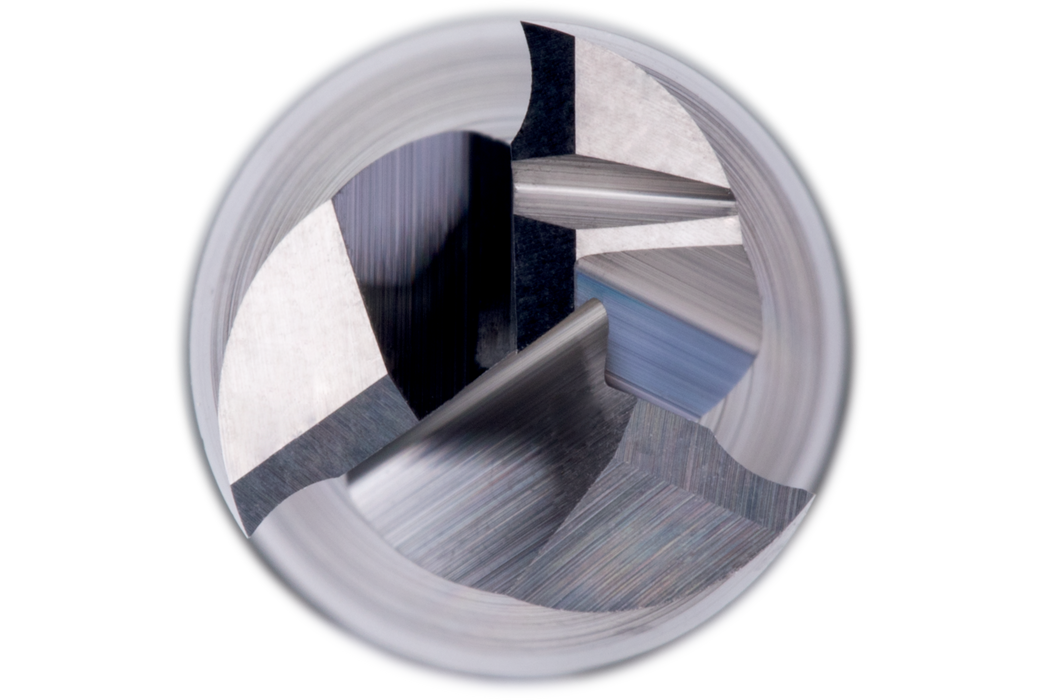

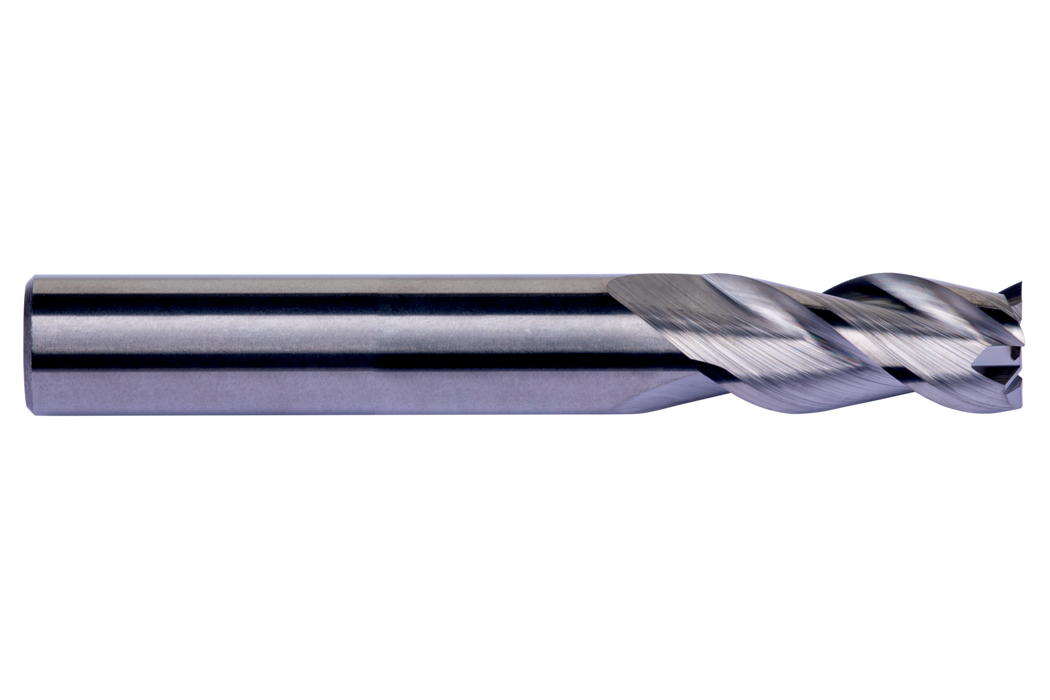

Short series End mill with 3 flutes, diameter 20mm with 38mm length of cut and 100mm overall length, according to DORMER standard with a 20mm plain shank, solid carbide with bright finish, 40° helix and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65020.0
GradeBright
Product Number8030294
Product FamilyS650
Insert Geometry

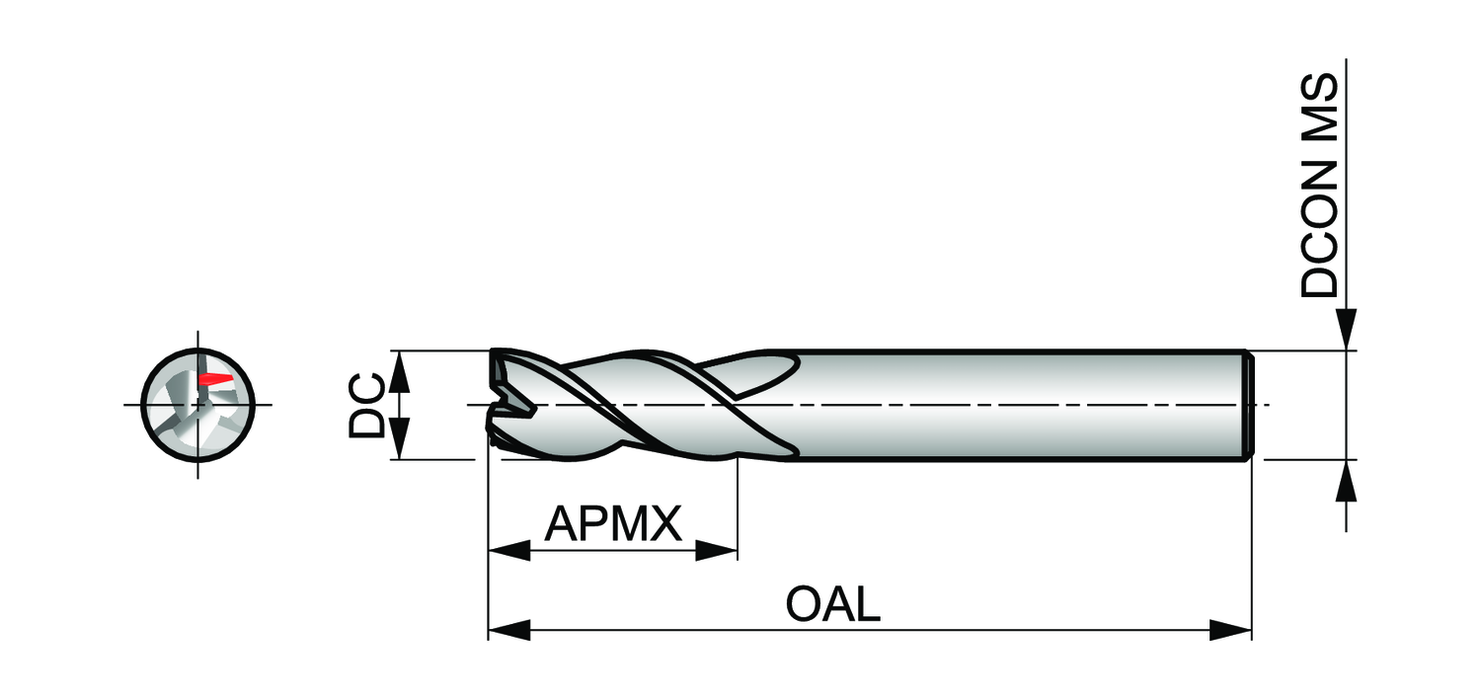

Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
Through Coolant No
StandardWork Norm
Reference Numbers
EDP Number8030294
EAN7320760950166
File Type Download
S65020.0 — 3D Model STP Download
S65020.0 — 2D Model DXF Download
S65020.0 — Line Drawing PDF Download
