S6148.0
SKU DOR8030301
Primary Use:

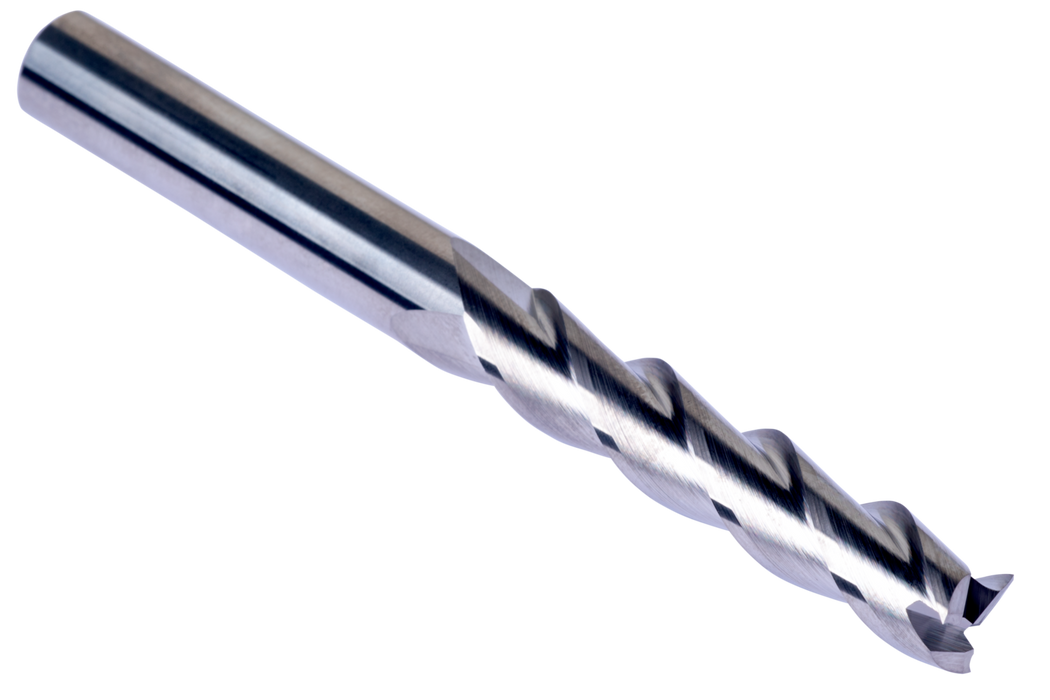

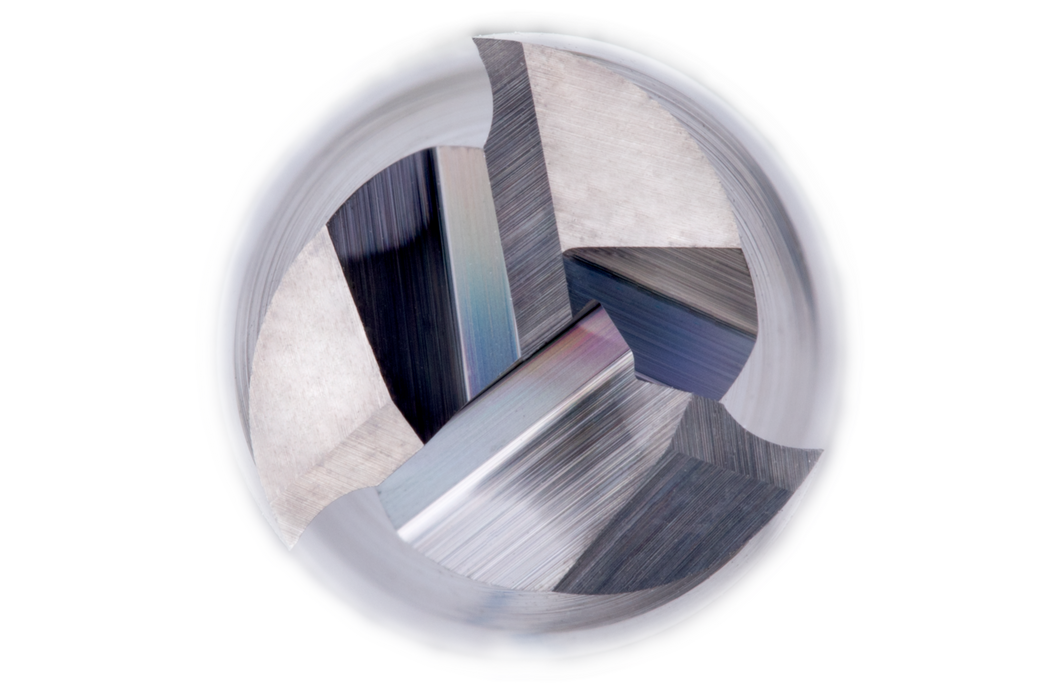

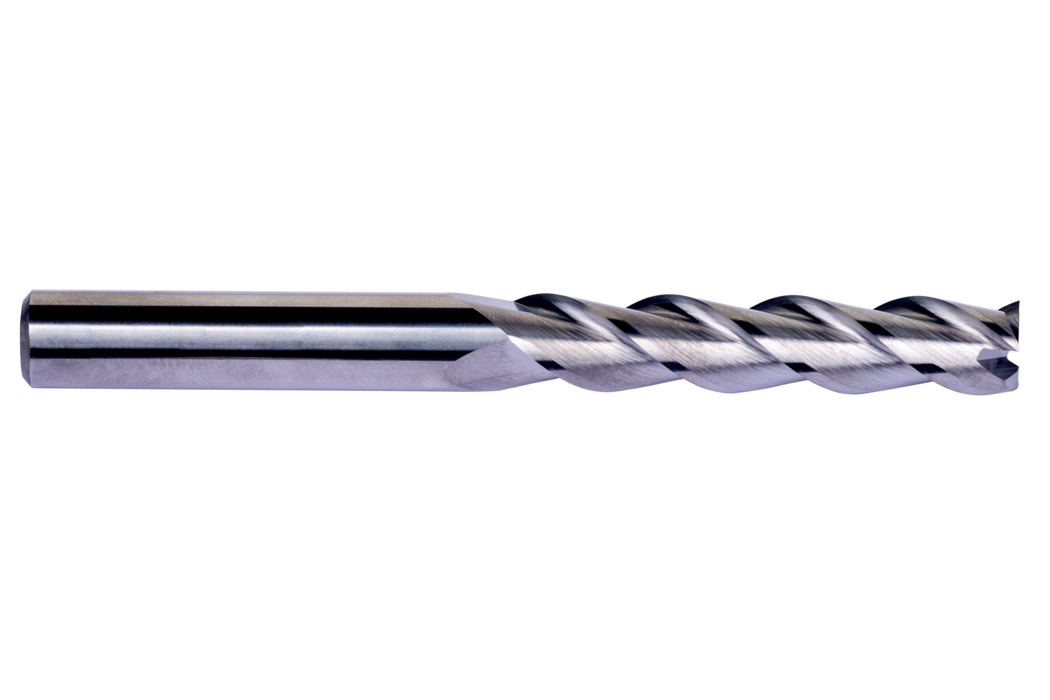

Extra long series End mill with 3 flutes, diameter 8mm with 41mm length of cut and 100mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with bright finish, 40° helix and 13° rake angle for shoulder milling in non-ferrous metals
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$81.93
-
Original price
$81.93
Original price
$81.93
$81.93
-
$81.93
Current price
$81.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

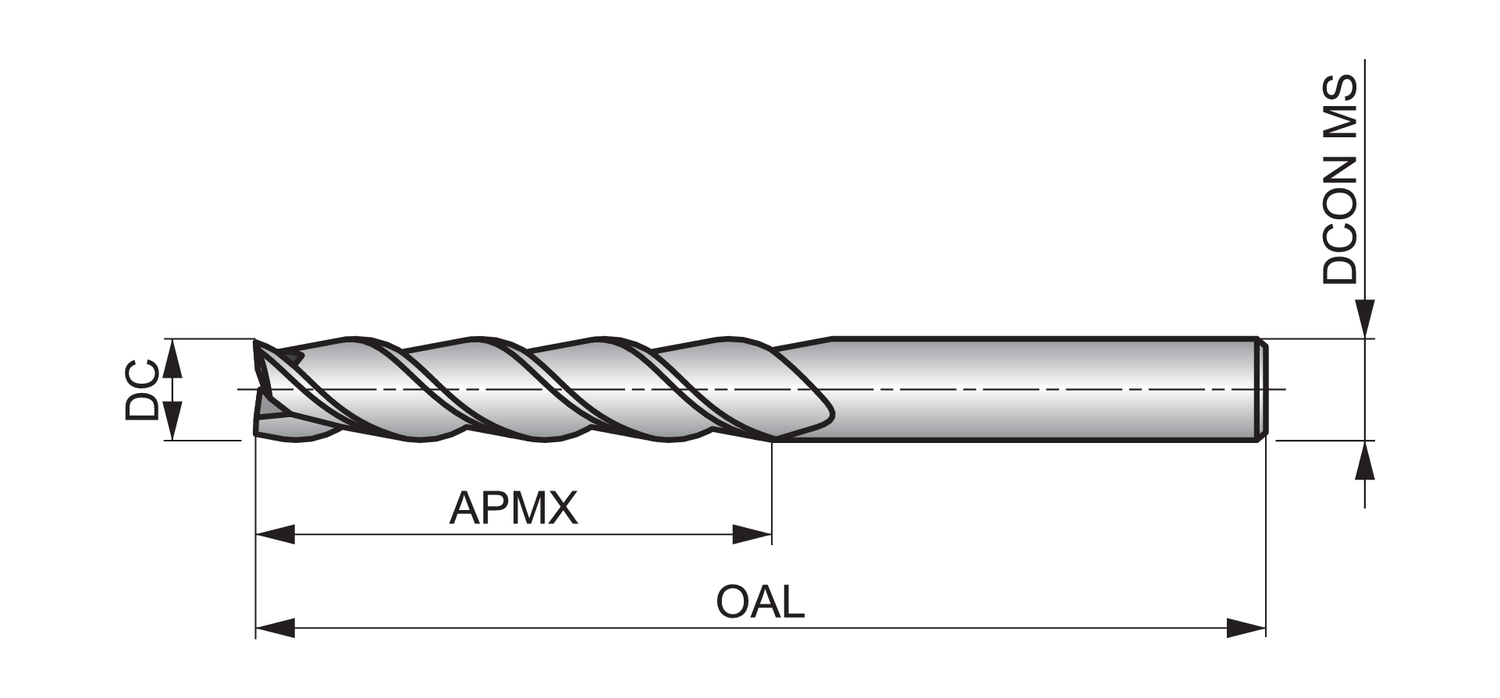

Material: HM
Cutting Diameter - in (DC): 0.315
Cutting Diameter - mm (DC): 8.0
Overall Length (OAL): 3.937
Connetion Diameter: 0.315
Max. Depth of Cut: 1.6142
Shank: Cylindrical shank DIN 6535 HA
Grade: Bright
EDP: 8030301
EAN: 7320760950234
MFG Part Number: 8030301
