S61414.0
SKU DOR8030304
Primary Use:

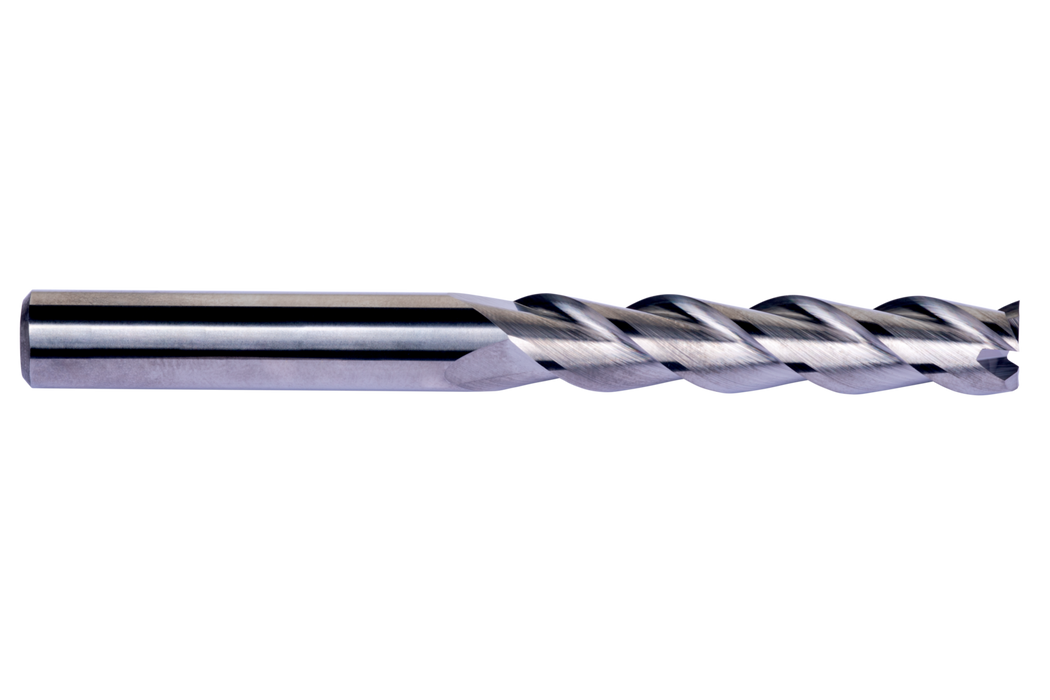

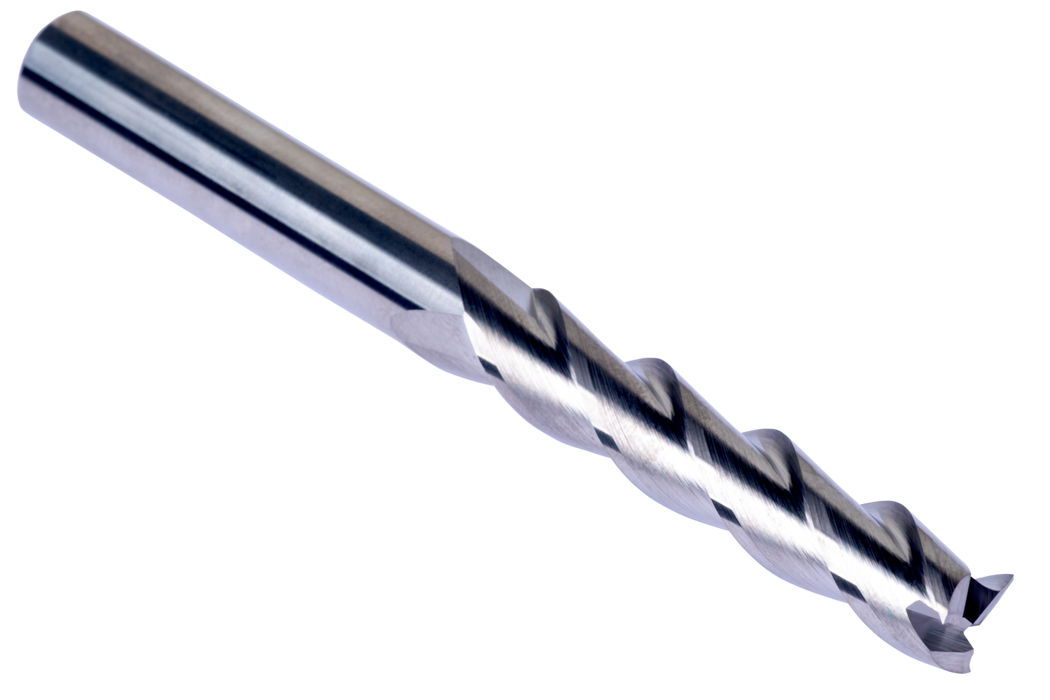

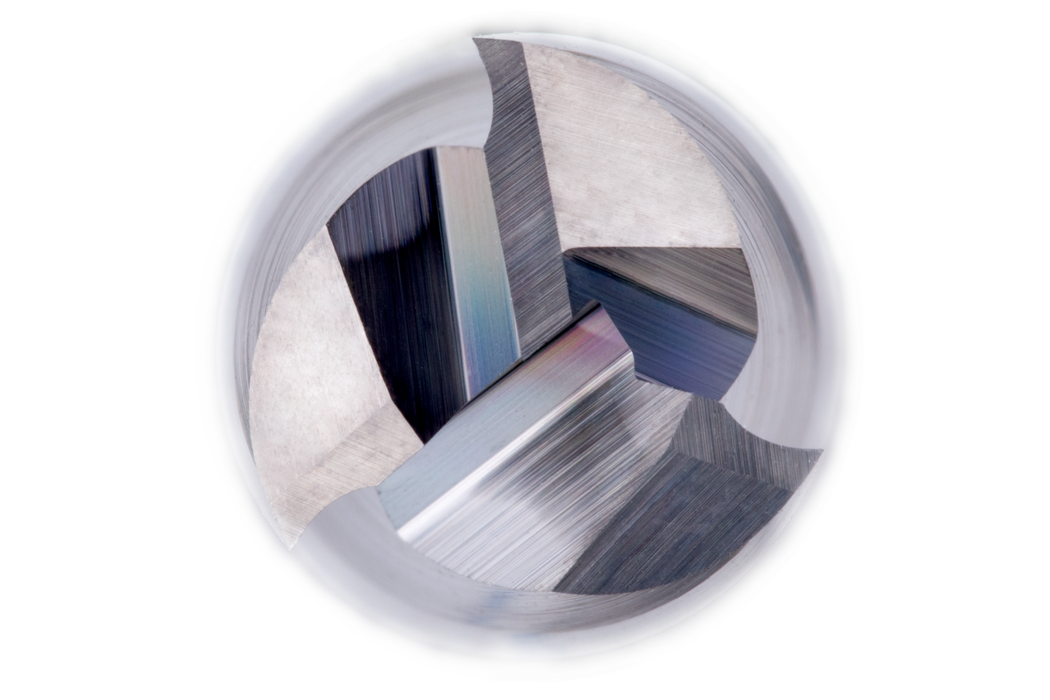

Extra long series End mill with 3 flutes, diameter 14mm with 57mm length of cut and 125mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with bright finish, 40° helix and 13° rake angle for shoulder milling in non-ferrous metals
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$189.76
-
Original price
$189.76
Original price
$189.76
$189.76
-
$189.76
Current price
$189.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Material: HM

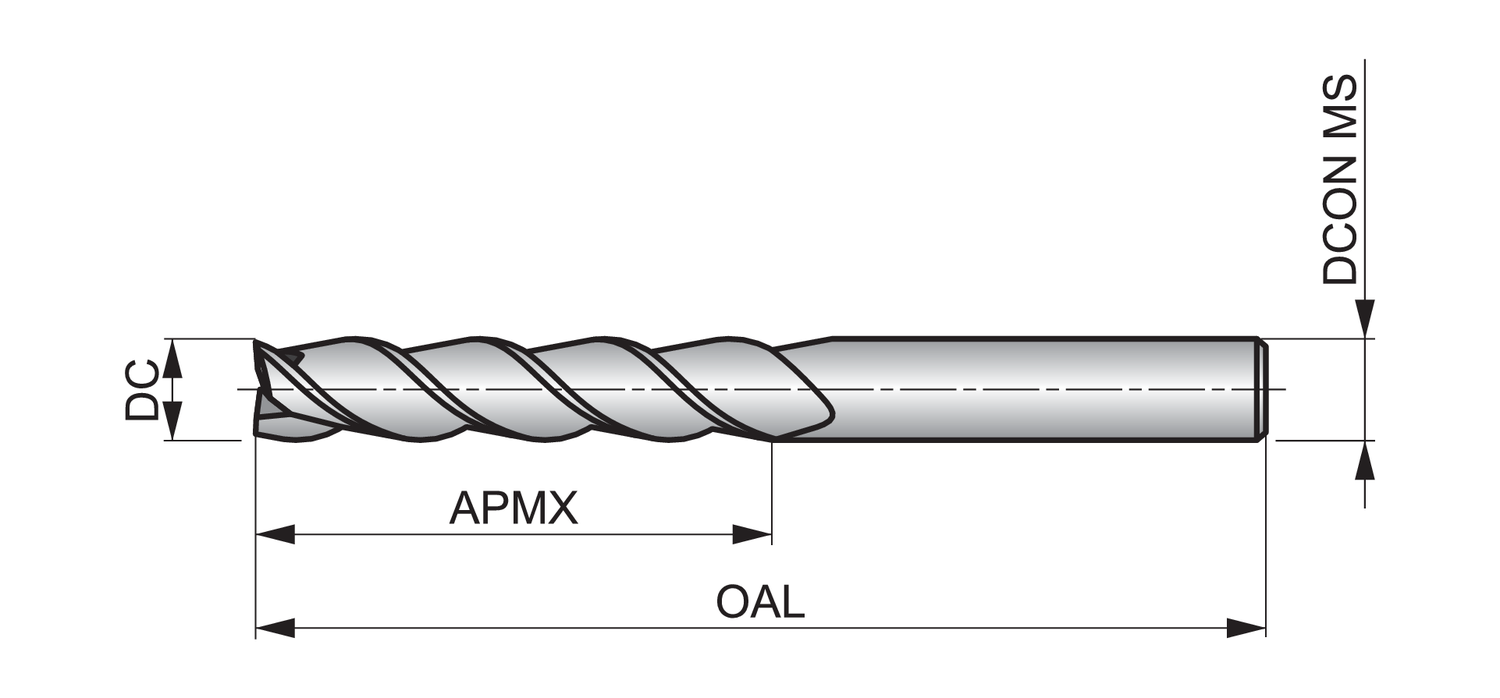

Cutting Diameter - in (DC): 0.5512
Cutting Diameter - mm (DC): 14.0
Overall Length (OAL): 4.9213
Connetion Diameter: 0.5512
Max. Depth of Cut: 2.2441
Shank: Cylindrical shank DIN 6535 HA
Grade: Bright
EDP: 8030304
EAN: 7320760950265
MFG Part Number: 8030304
