S765HB16.0

S765HB16.0

SKU DOR8030367
by Dormer Pramet
Primary Use:

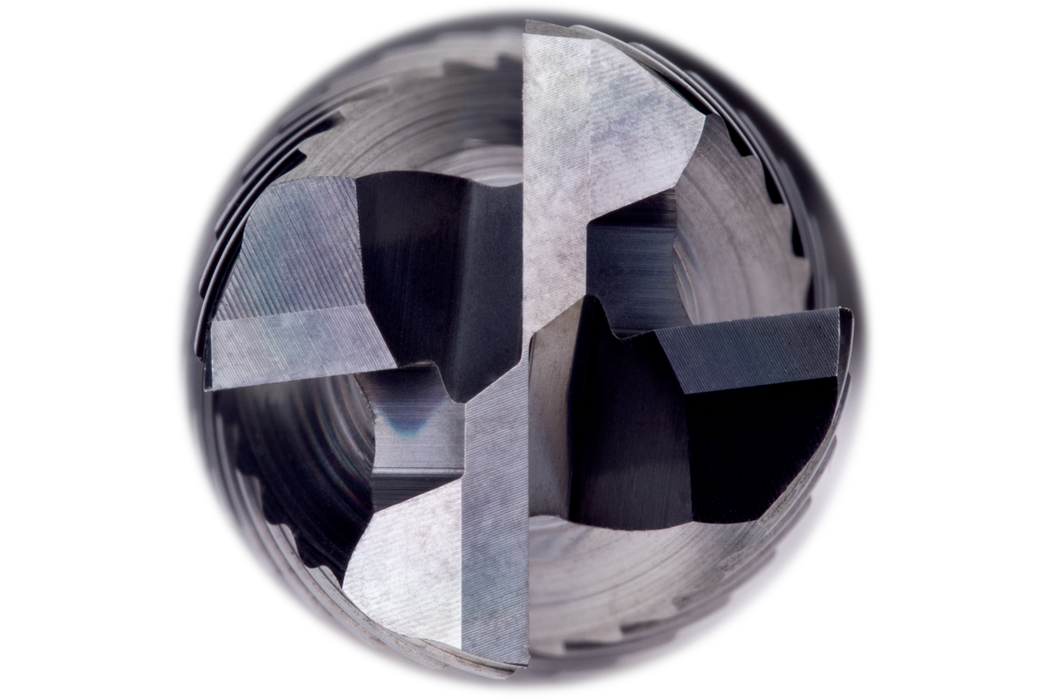

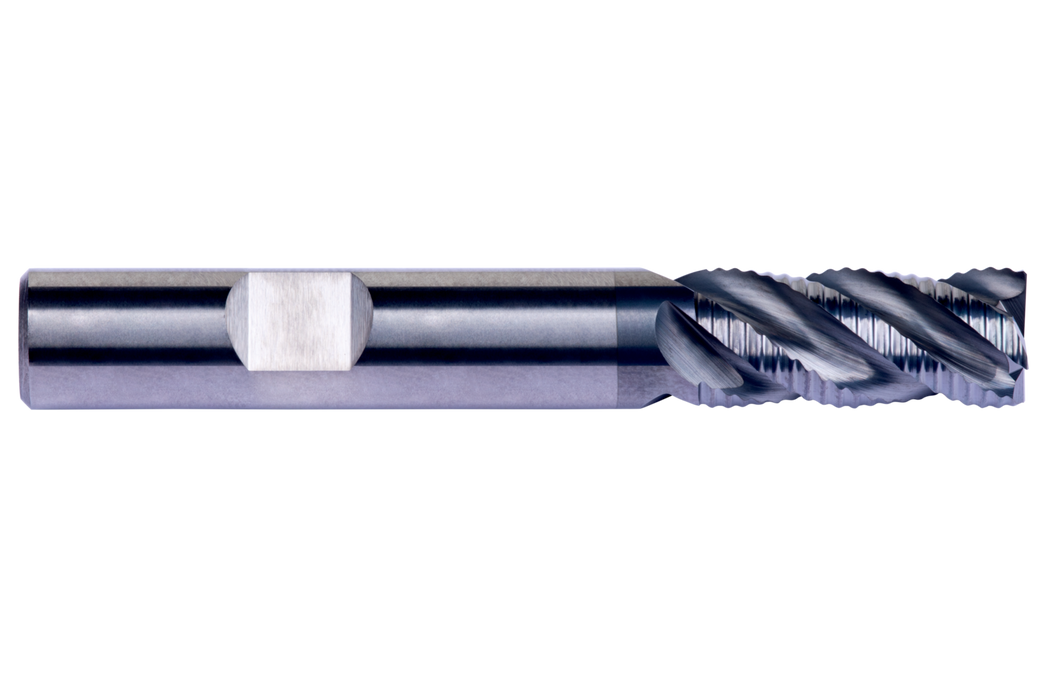

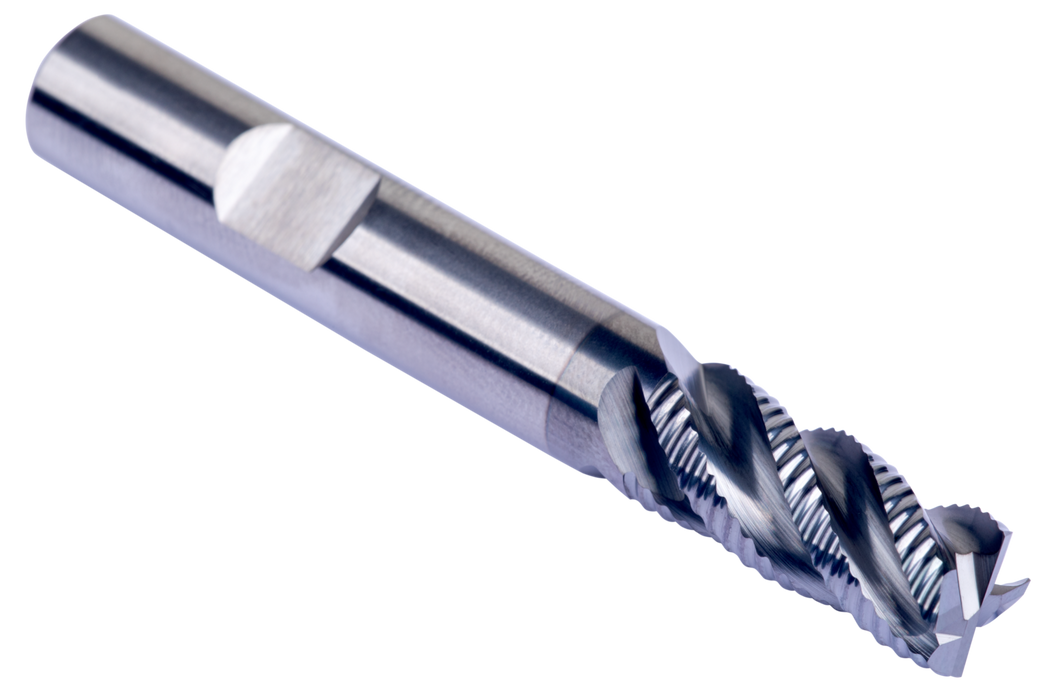

Short series Roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16mm with 32mm length of cut, 90mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 16mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$364.19 - $364.19
$364.19
$364.19 - $364.19
$364.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

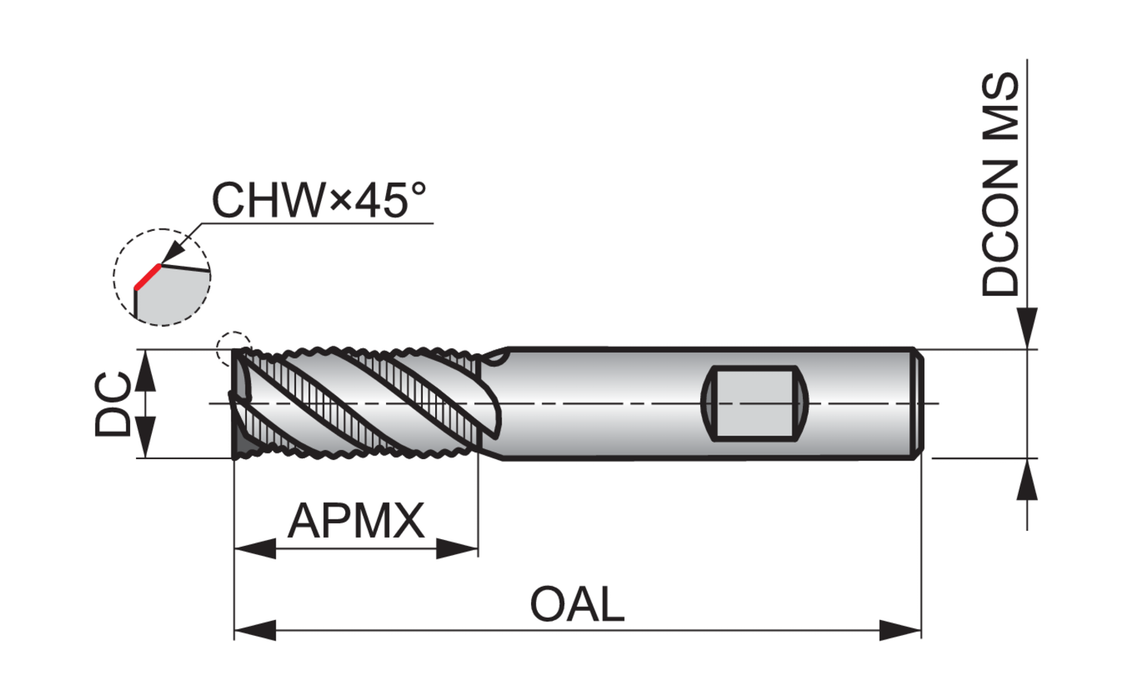

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.5433

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

EDP: 8030367

EAN: 7320760950876

MFG Part Number: 8030367
