SKU DOR8030368
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$469.37 CAD - $469.37 CAD
$469.37 CAD
$469.37 CAD - $469.37 CAD
$469.37 CAD

Sold in packs of: 1

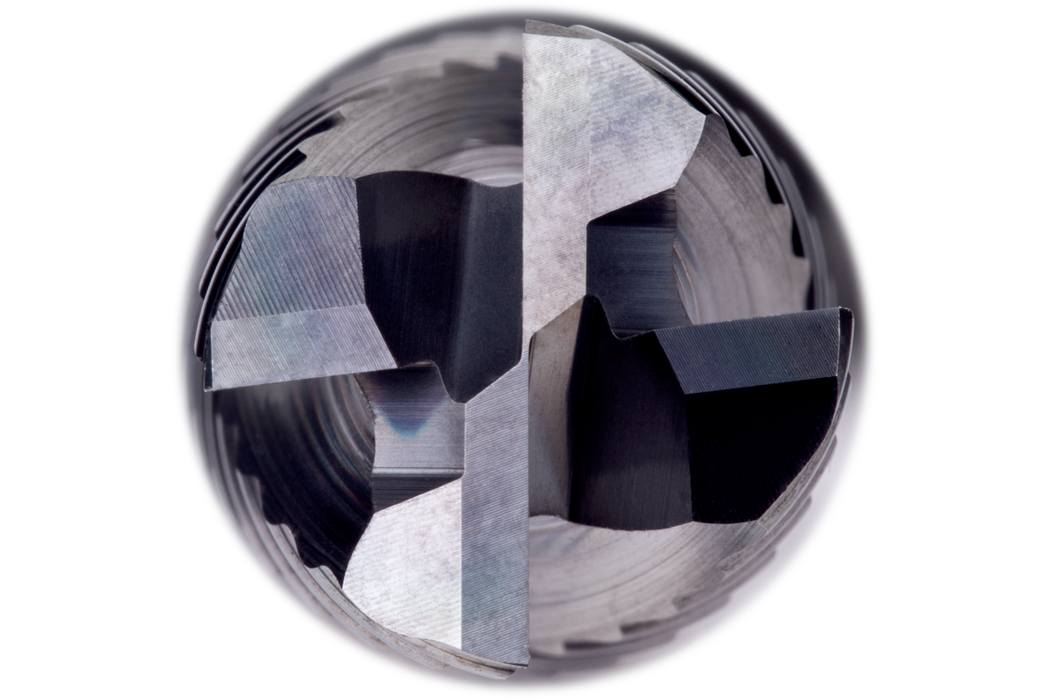

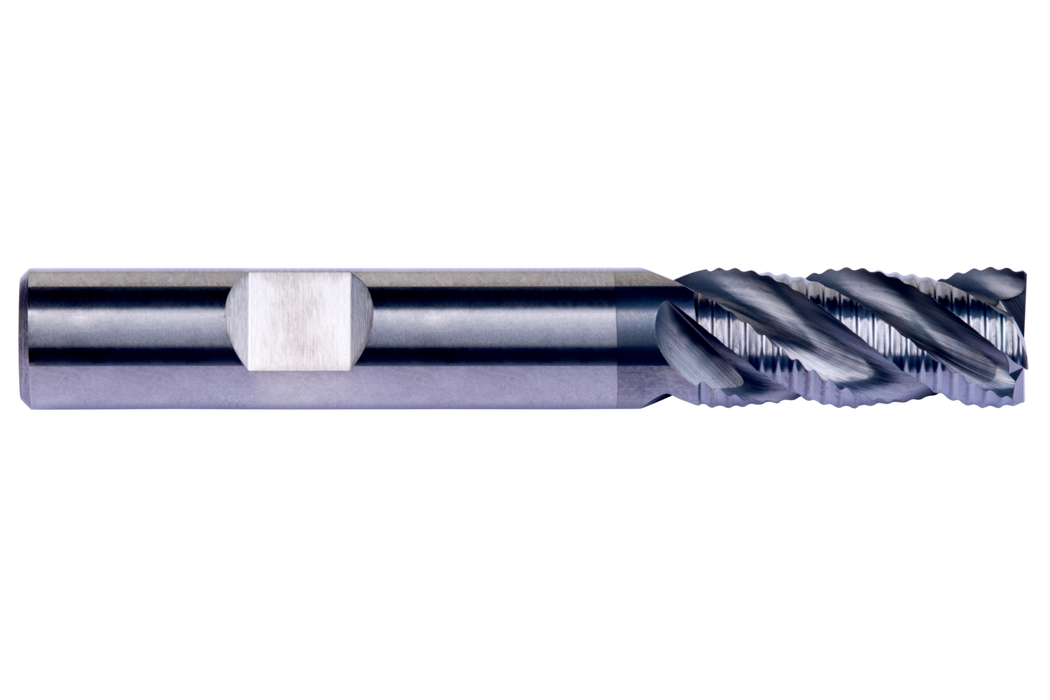

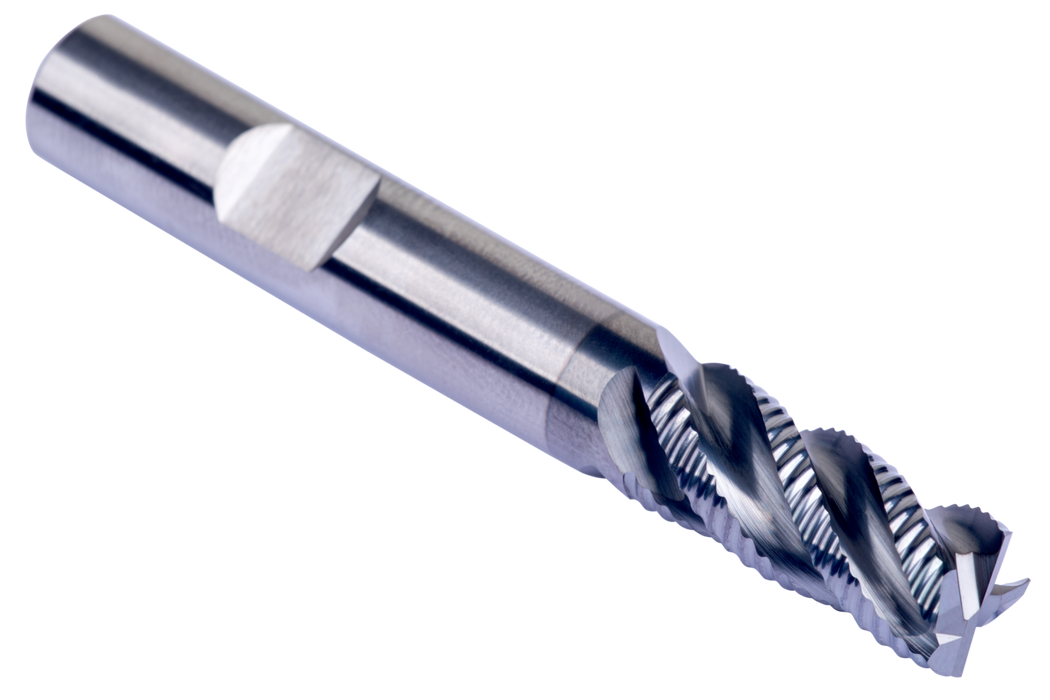

Short series Roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18mm with 38mm length of cut, 100mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 18mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB18.0
GradeAlCrN
Product Number8030368
Product FamilyS765HB

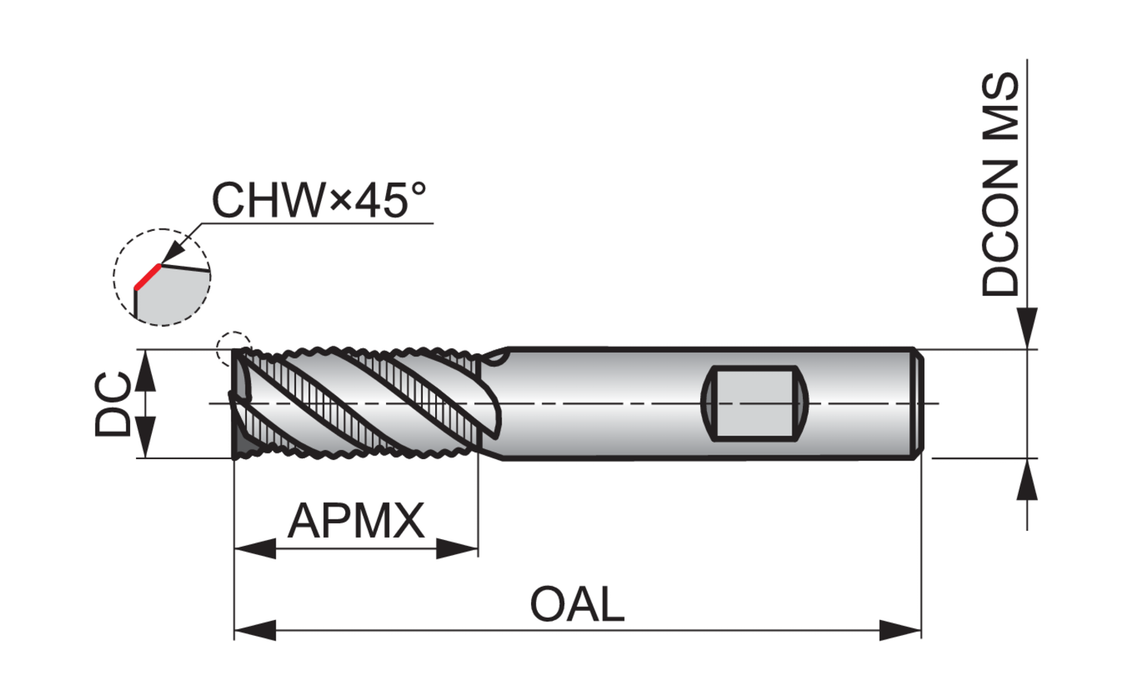

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HB
StandardWork Norm
Reference Numbers
EDP Number8030368
EAN7320760950883
File Type Download
S765HB18.0 — 3D Model STP Download
S765HB18.0 — 2D Model DXF Download
S765HB18.0 — Line Drawing PDF Download
