S765HB20.0

S765HB20.0

SKU DOR8030369
by Dormer Pramet
Primary Use:

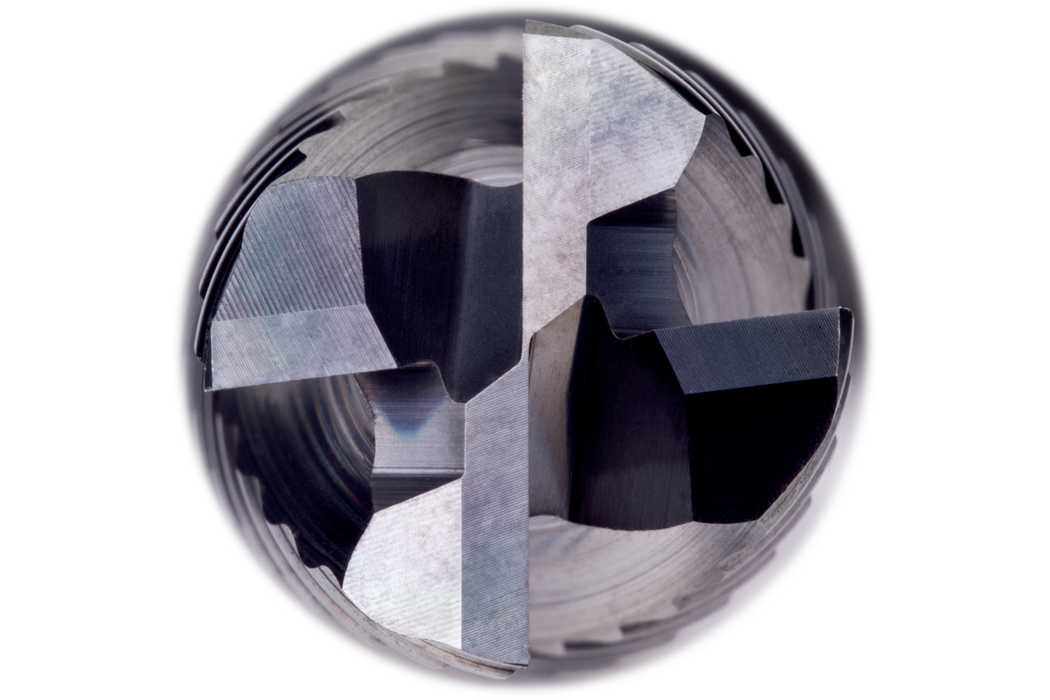

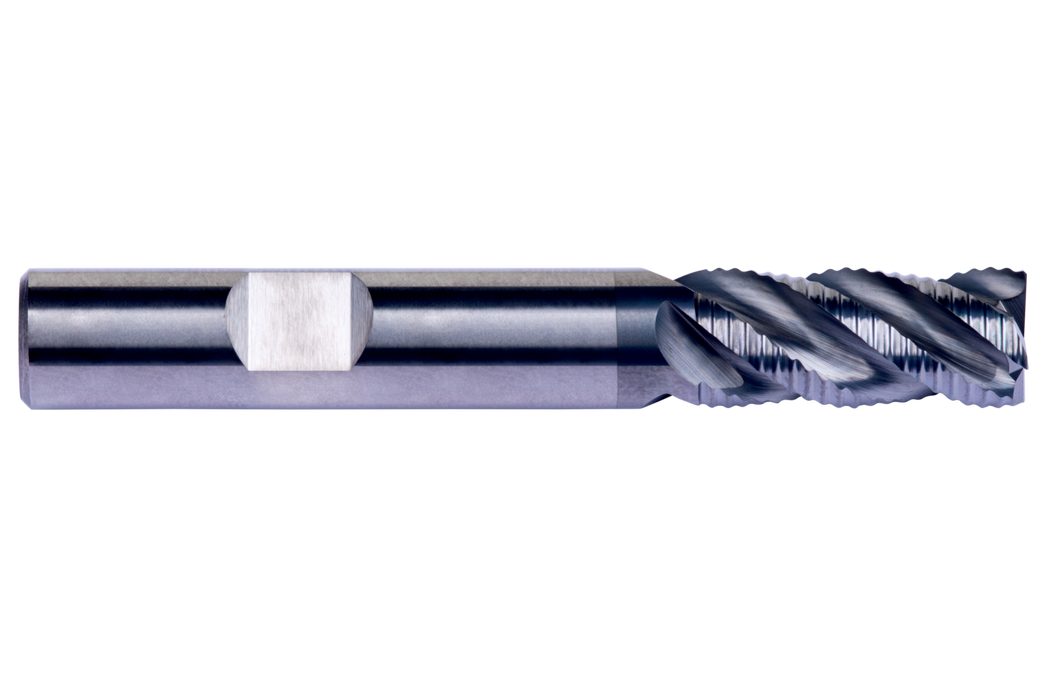

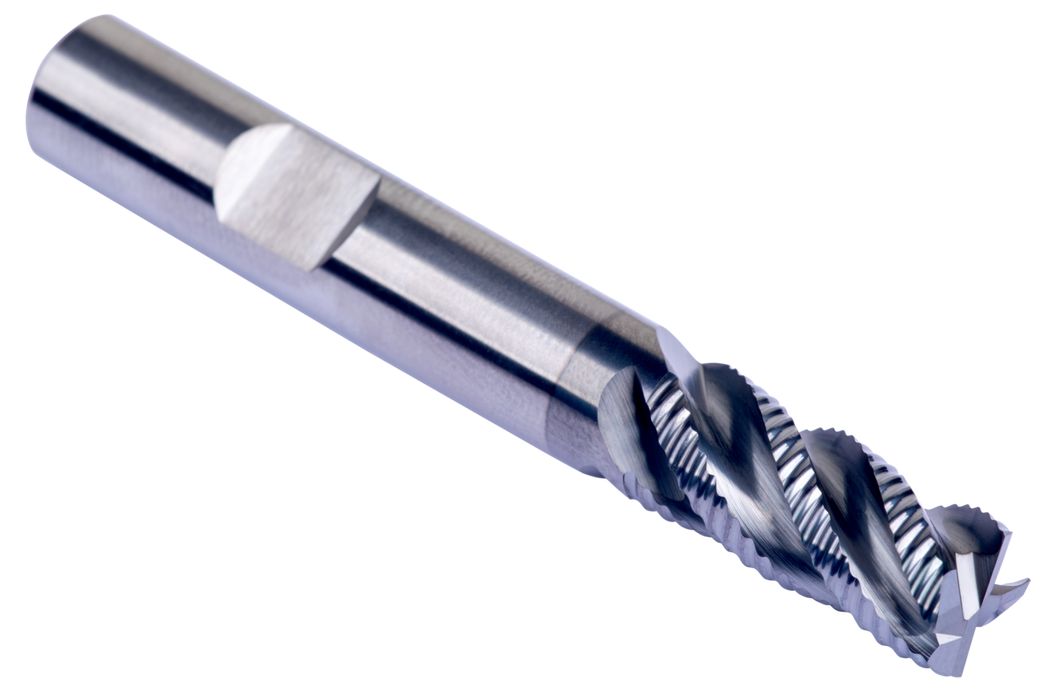

Short series Roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20mm with 38mm length of cut, 100mm overall length and 0.4mm 45° chamfered corner edges, according to DORMER standard with a 20mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$565.57 - $565.57
$565.57
$565.57 - $565.57
$565.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

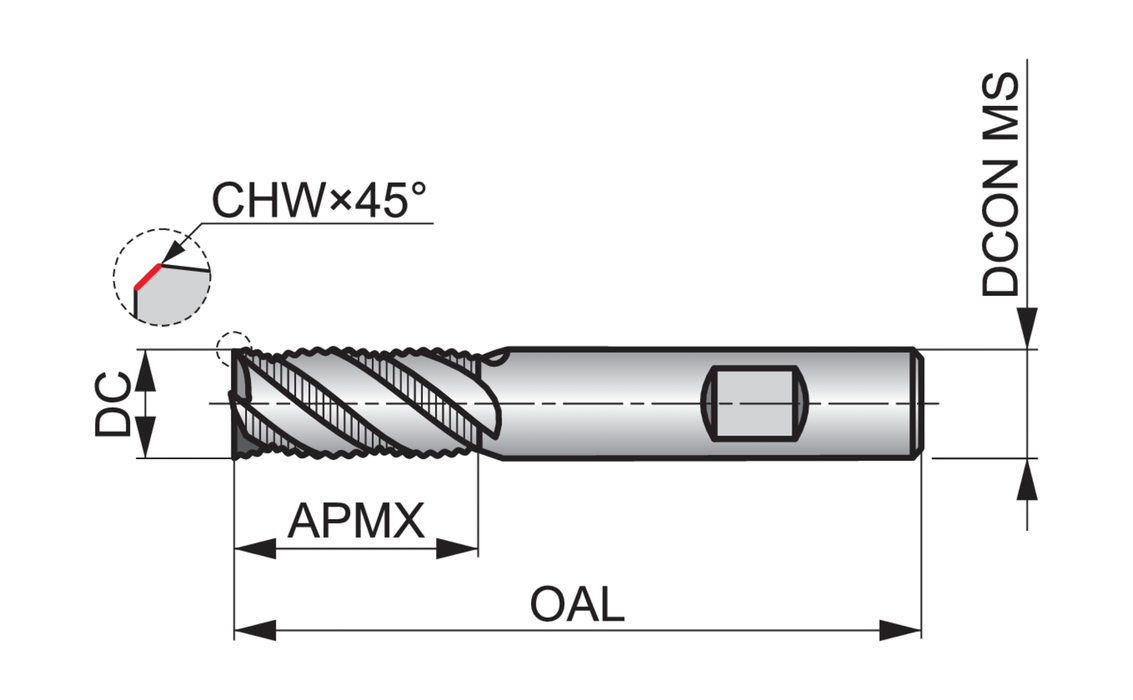

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.7874

Max. Depth of Cut: 1.4961

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

EDP: 8030369

EAN: 7320760950890

MFG Part Number: 8030369
