S5615.0

S5615.0

SKU DOR8030376
by Dormer Pramet
Primary Use:

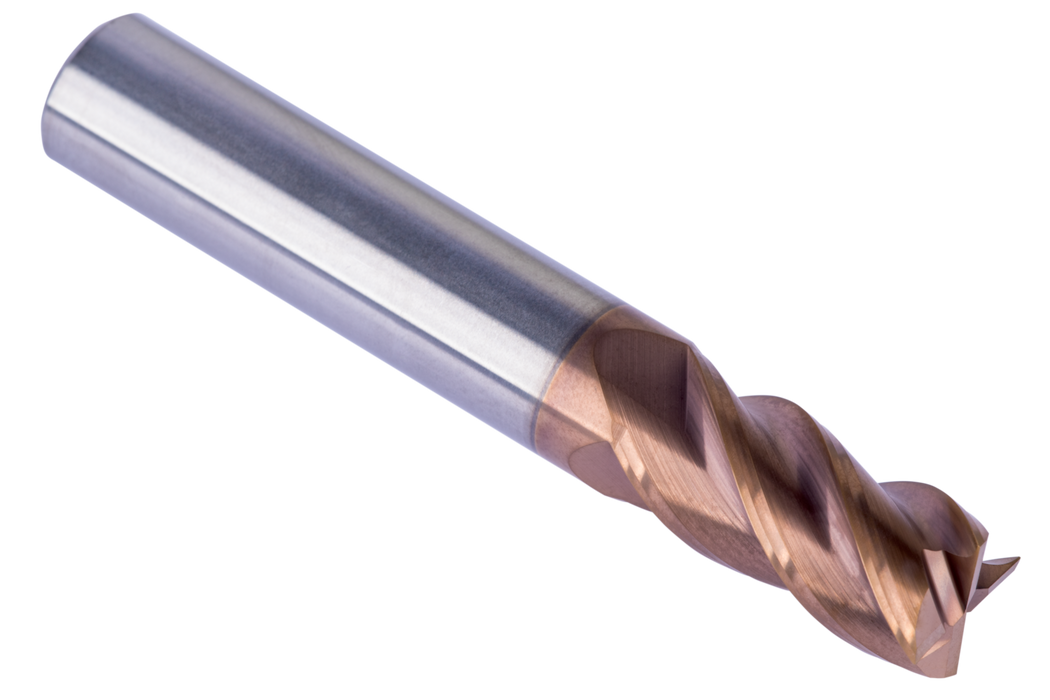

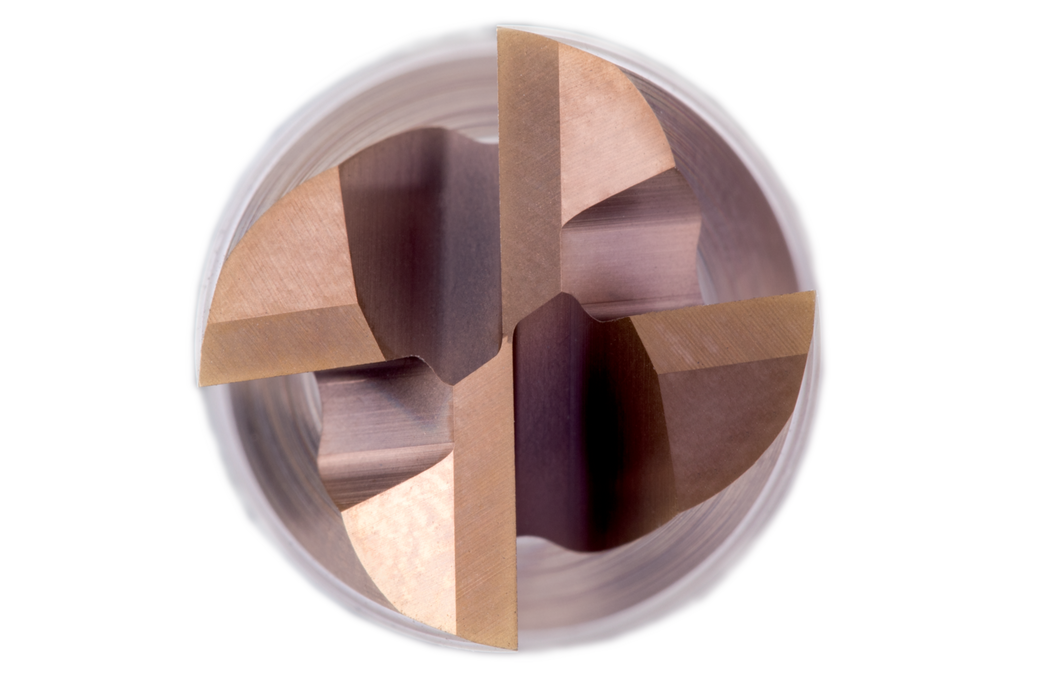

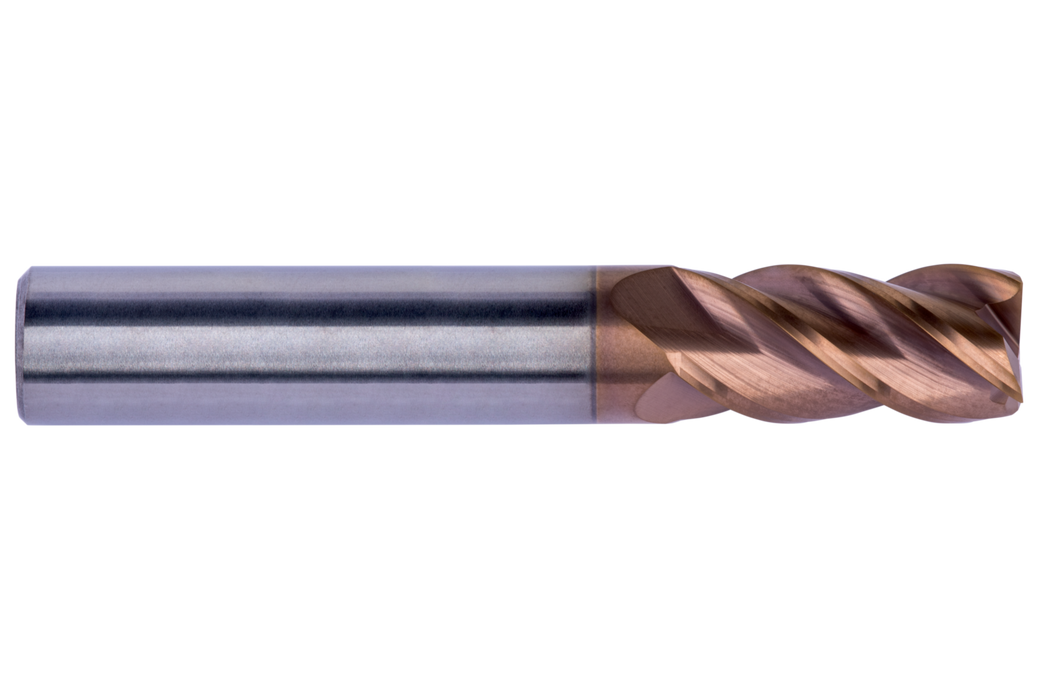

Regular length End mill with 4 flutes, diameter 5mm with 15mm length of cut and 50mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$79.81 - $79.81
$79.81
$79.81 - $79.81
$79.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

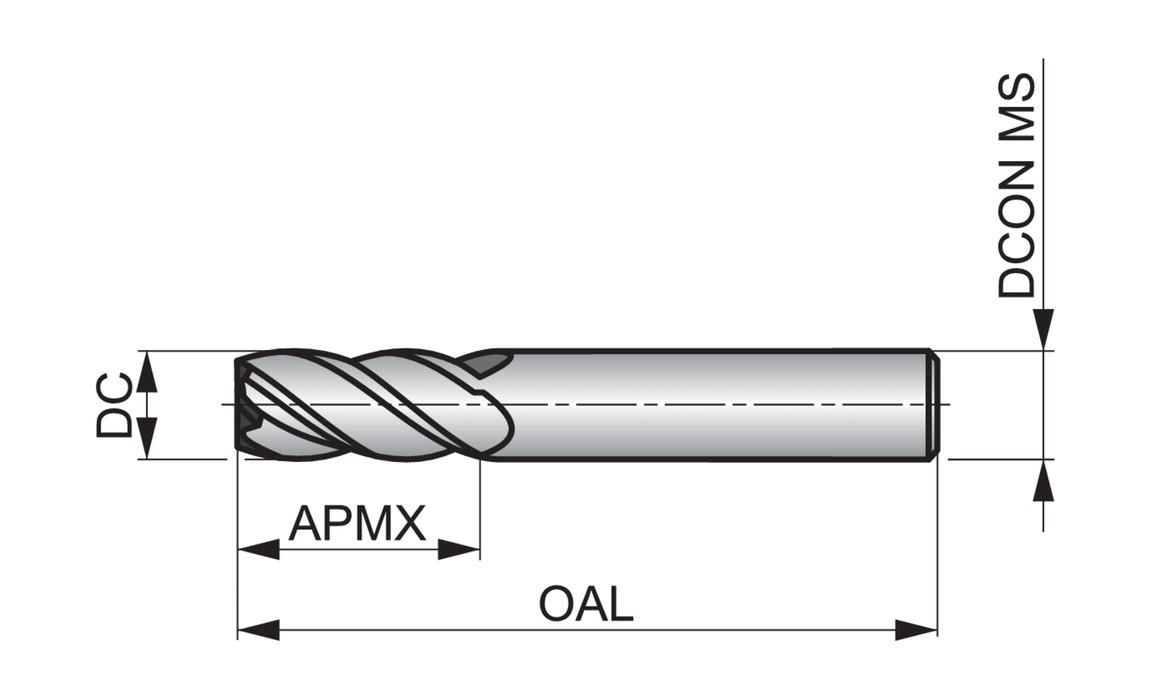

Material: HM

Cutting Diameter - in (DC): 0.1969

Cutting Diameter - mm (DC): 5.0

Overall Length (OAL): 1.9685

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.5906

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

EDP: 8030376

EAN: 7320760950968

MFG Part Number: 8030376
