S5616.0

S5616.0

SKU DOR8030377
by Dormer Pramet
Primary Use:

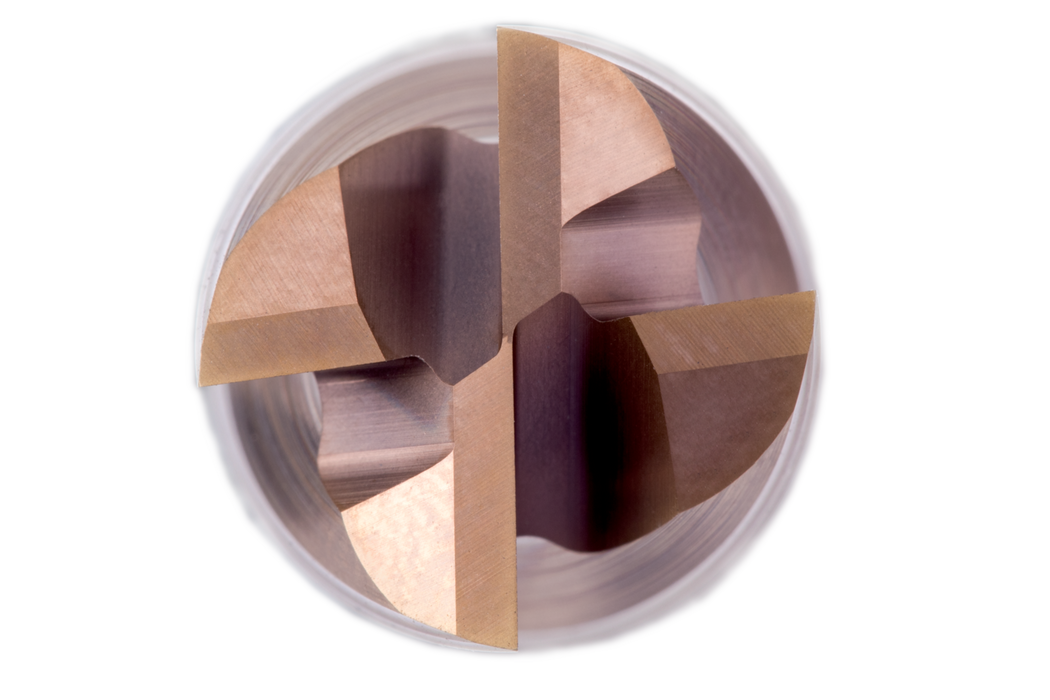

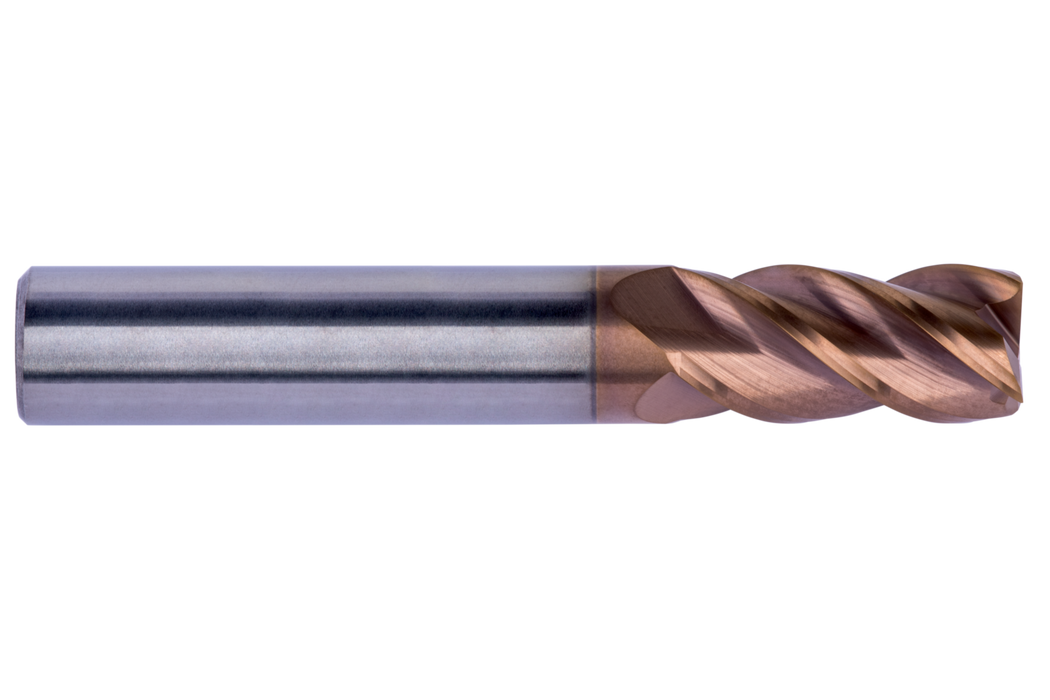

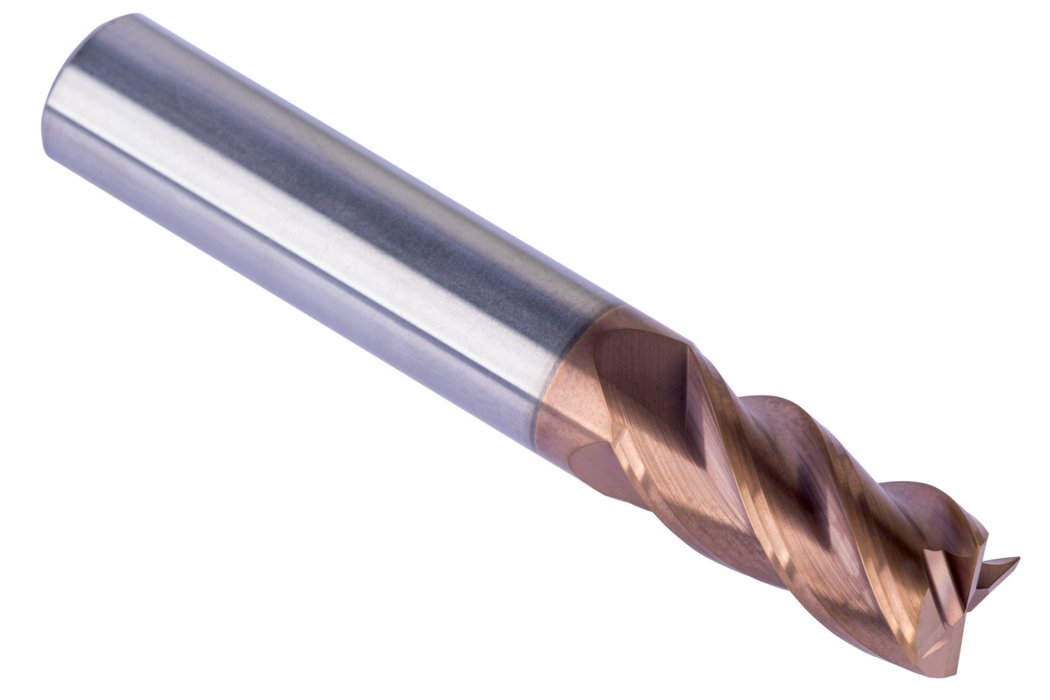

Regular length End mill with 4 flutes, diameter 6mm with 20mm length of cut and 60mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$79.81 - $79.81
$79.81
$79.81 - $79.81
$79.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

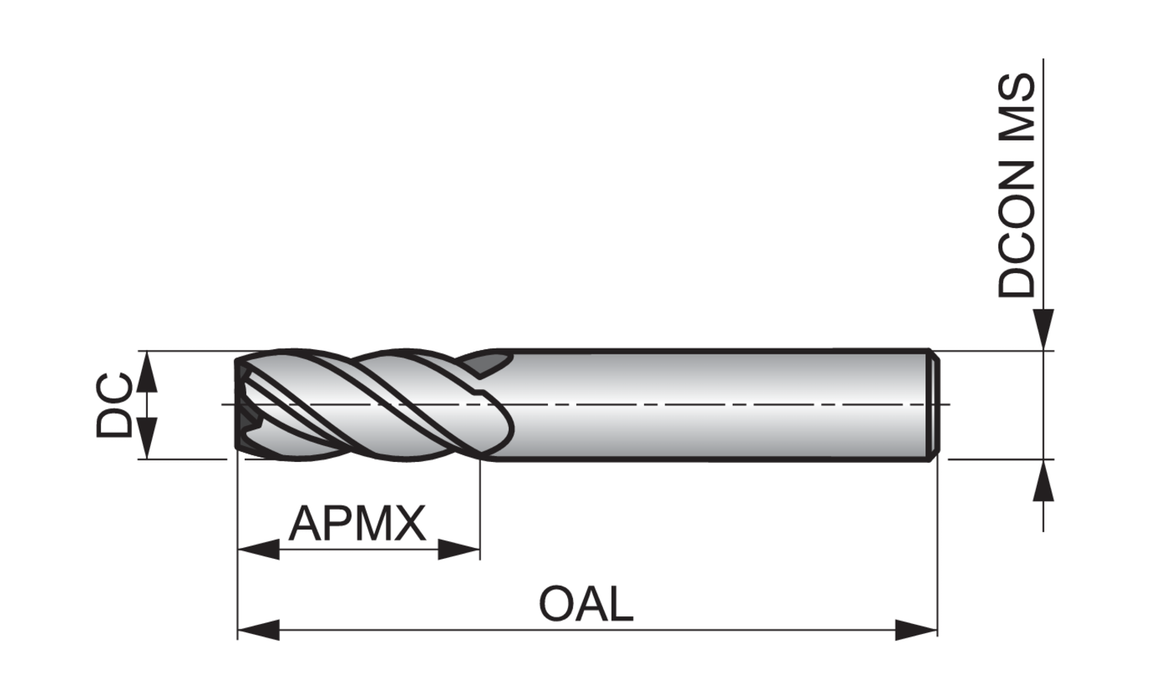

Cutting Diameter - in (DC): 0.2362

Cutting Diameter - mm (DC): 6.0

Overall Length (OAL): 2.3622

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.7874

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

EDP: 8030377

EAN: 7320760950975

MFG Part Number: 8030377
