SKU DOR8030378
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.53 CAD - $111.53 CAD
$111.53 CAD
$111.53 CAD - $111.53 CAD
$111.53 CAD

Sold in packs of: 1

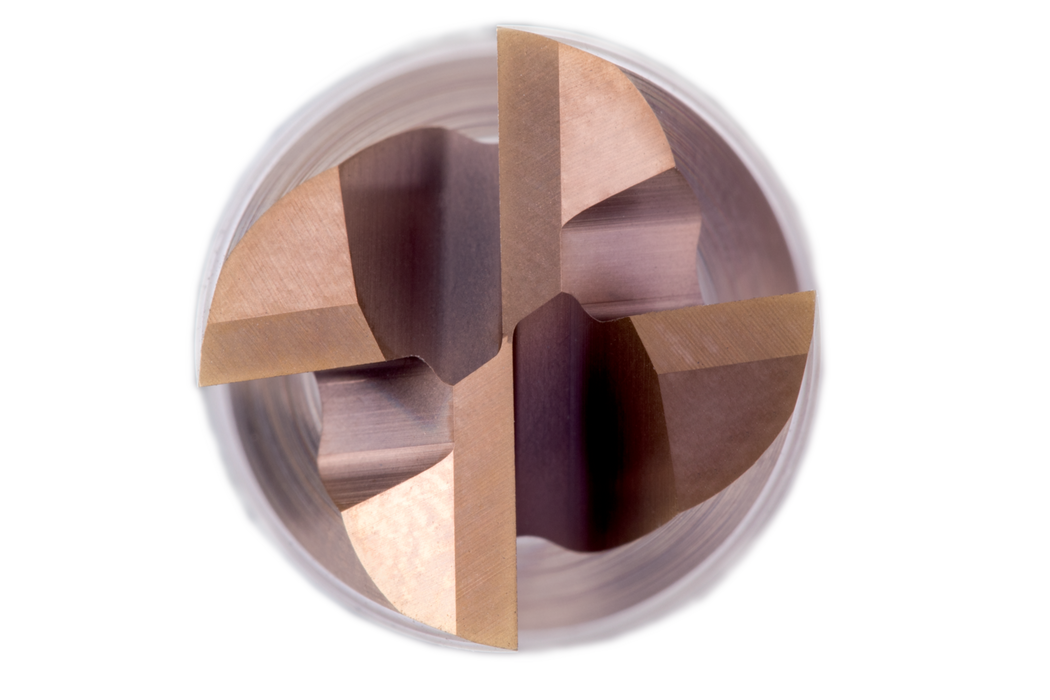

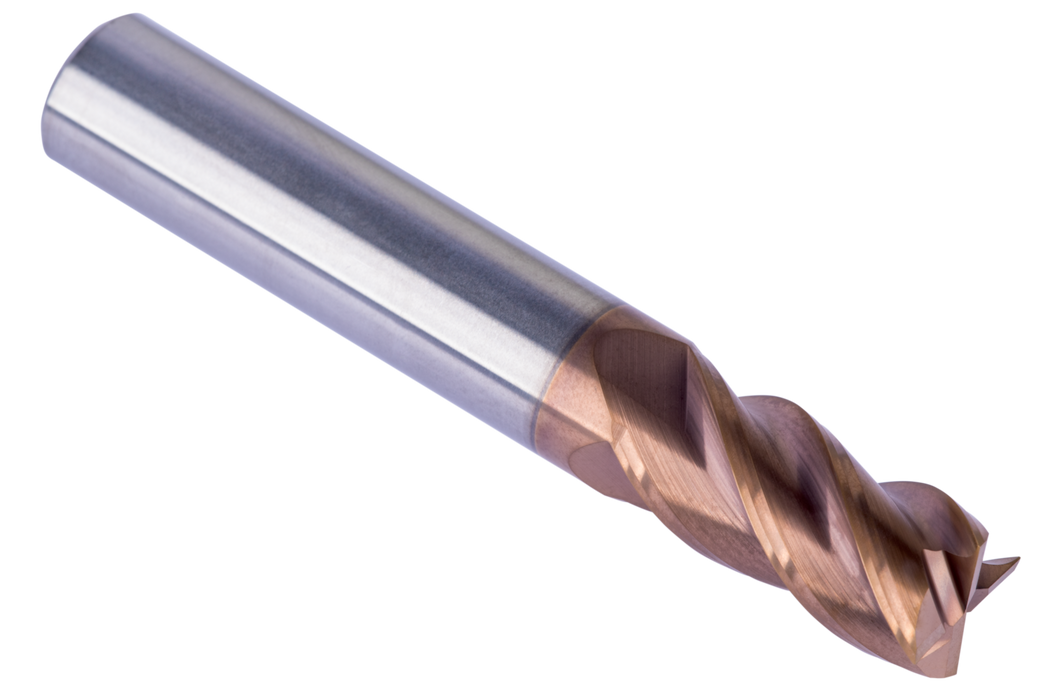

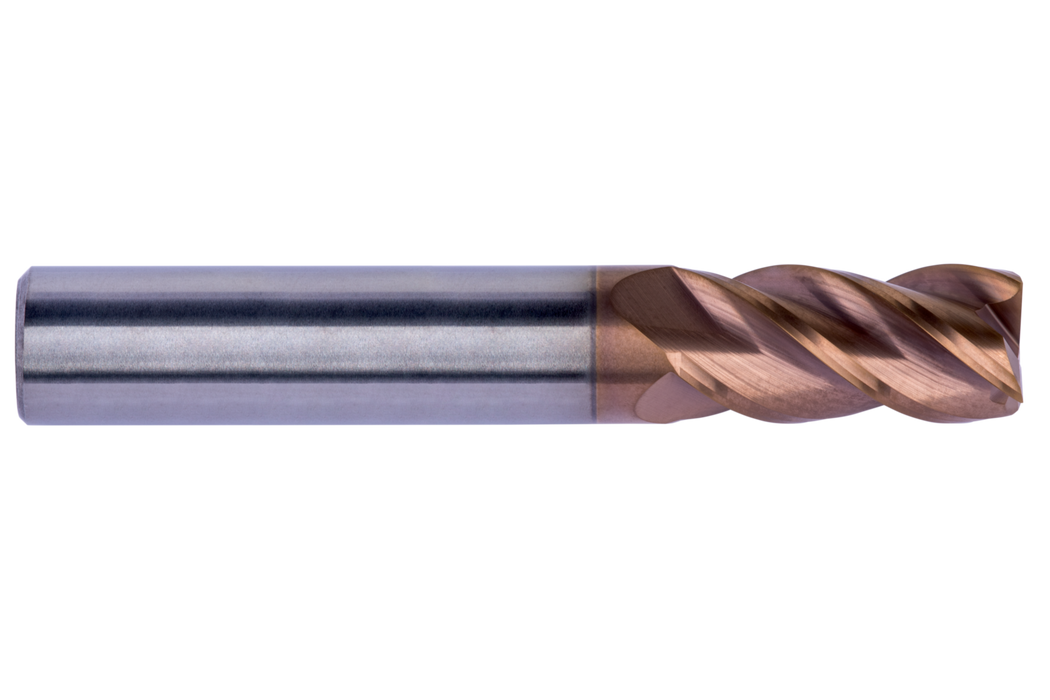

Regular length End mill with 4 flutes, diameter 8mm with 20mm length of cut and 64mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5618.0
GradeTiSiN
Product Number8030378
Product FamilyS561
Insert Geometry

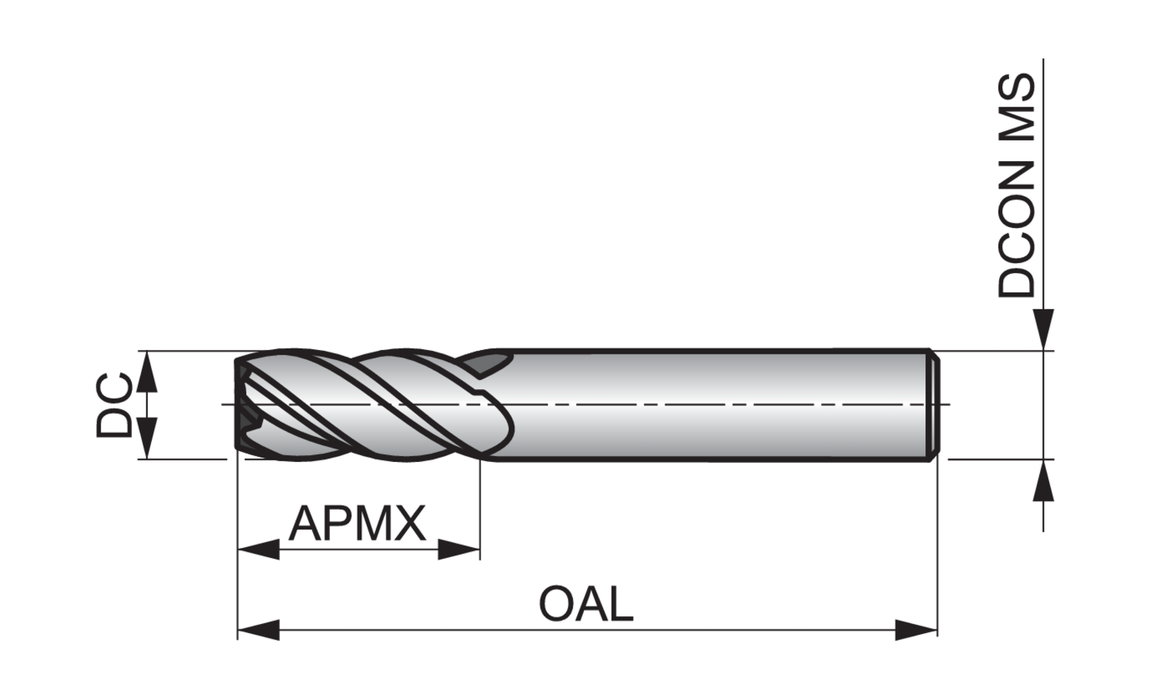

Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number8030378
EAN7320760950982
File Type Download
S5618.0 — 3D Model STP Download
S5618.0 — 2D Model DXF Download
S5618.0 — Line Drawing PDF Download
