S56114.0

S56114.0

SKU DOR8030381
by Dormer Pramet
Primary Use:

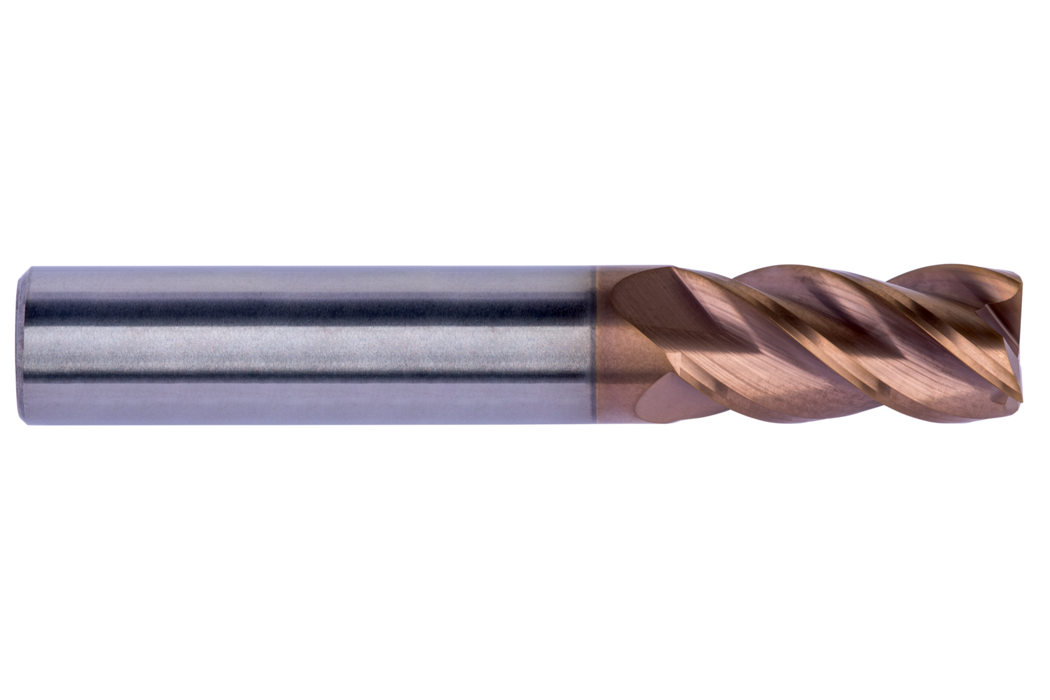

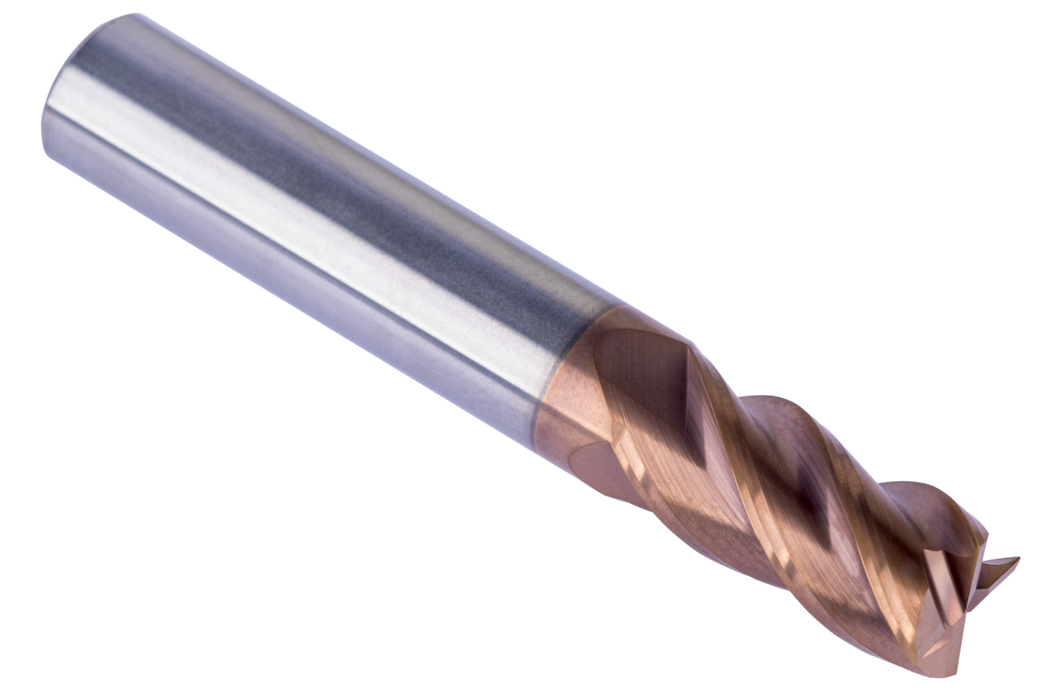

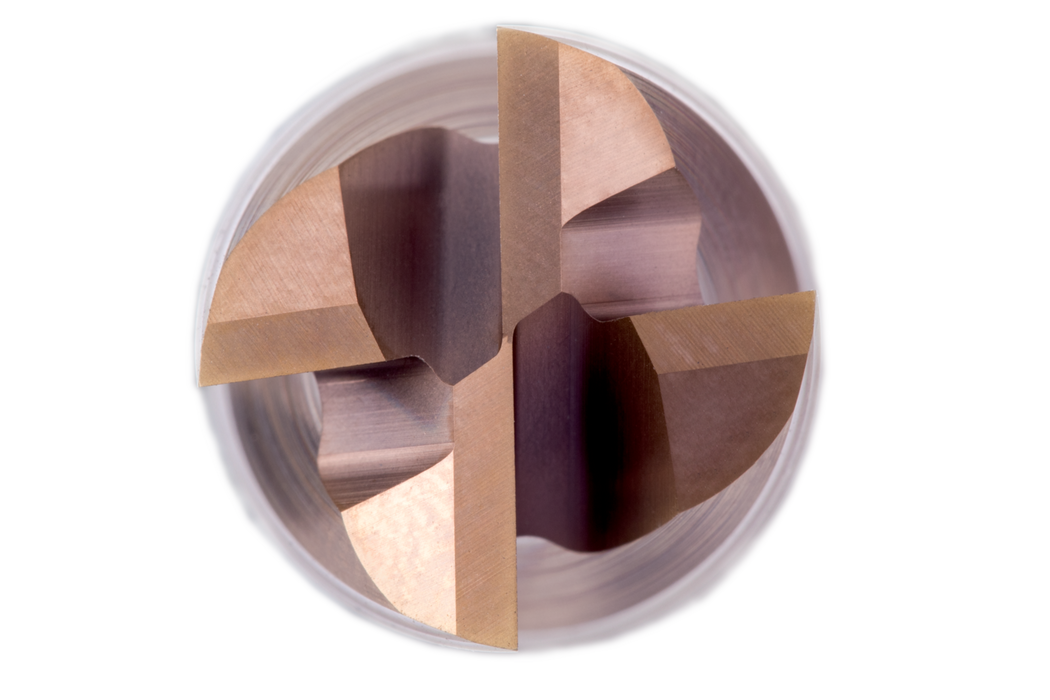

Regular length End mill with 4 flutes, diameter 14mm with 32mm length of cut and 90mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$256.36 - $256.36
$256.36
$256.36 - $256.36
$256.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

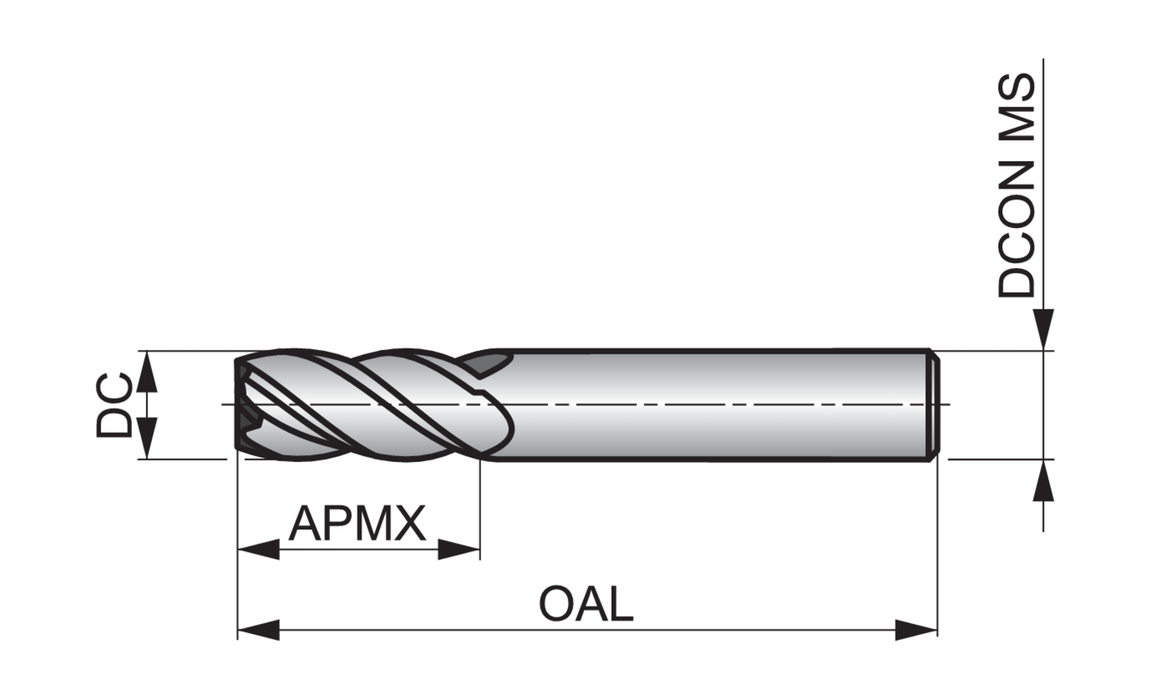

Cutting Diameter - in (DC): 0.5512

Cutting Diameter - mm (DC): 14.0

Overall Length (OAL): 3.5433

Connetion Diameter: 0.5512

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

EDP: 8030381

EAN: 7320760951019

MFG Part Number: 8030381
