SKU DOR8030382
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$334.59 CAD - $334.59 CAD
$334.59 CAD
$334.59 CAD - $334.59 CAD
$334.59 CAD

Sold in packs of: 1

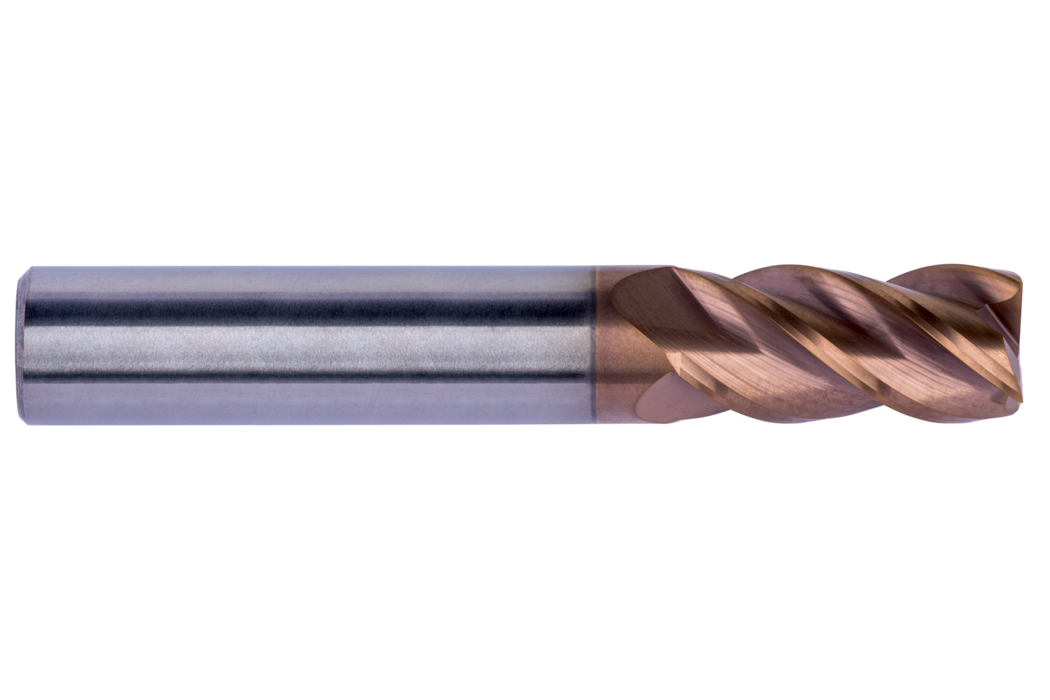

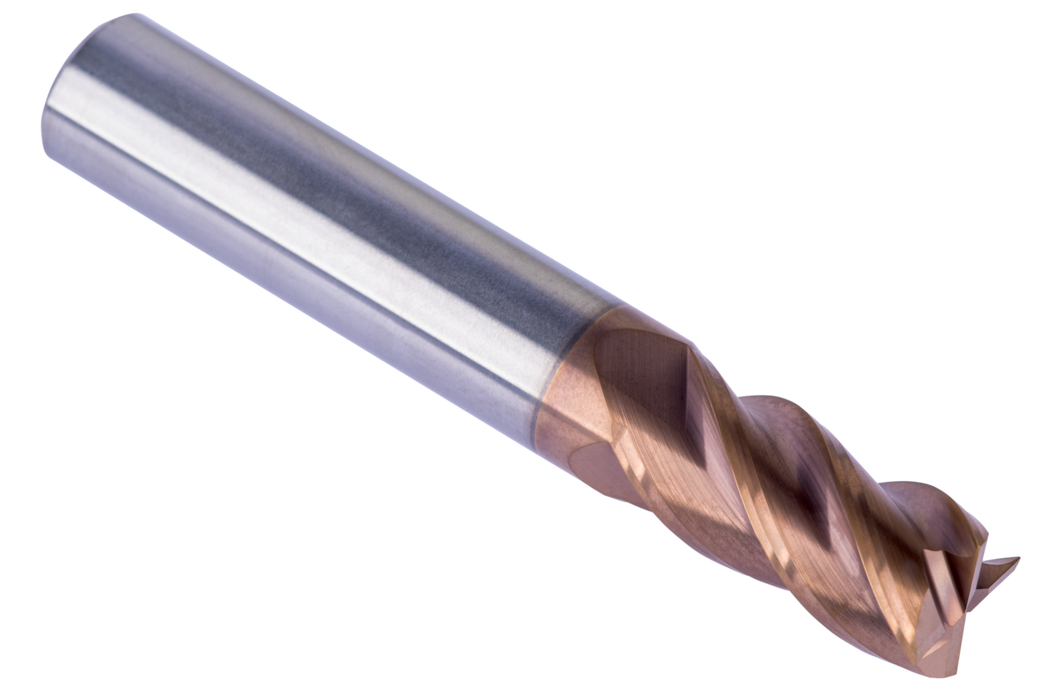

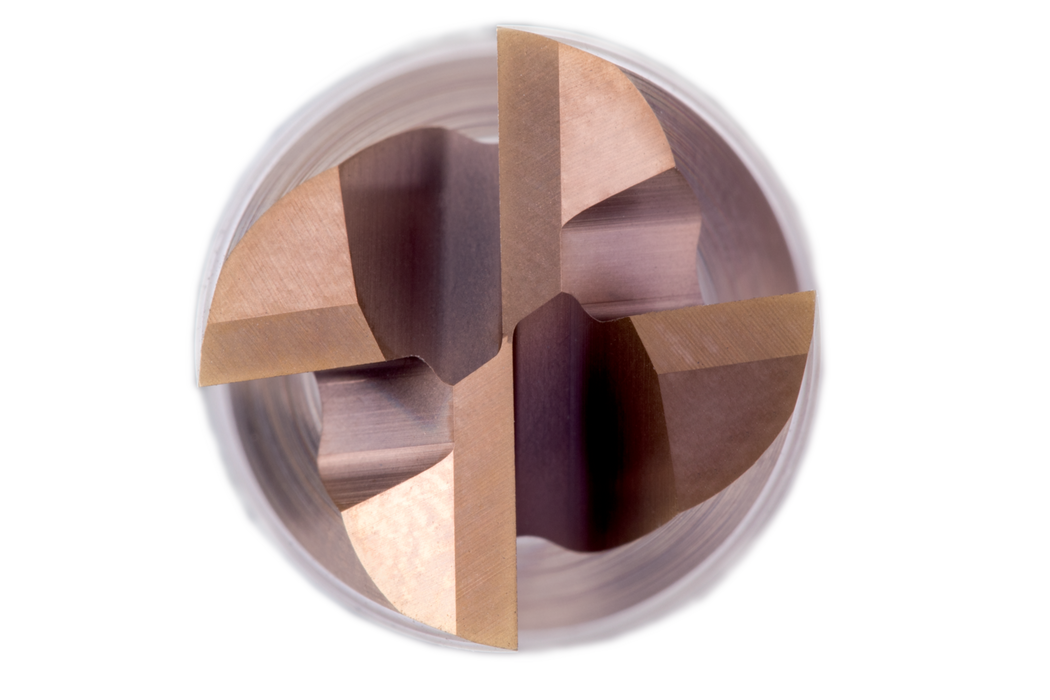

Regular length End mill with 4 flutes, diameter 16mm with 32mm length of cut and 90mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S56116.0
GradeTiSiN
Product Number8030382
Product FamilyS561
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

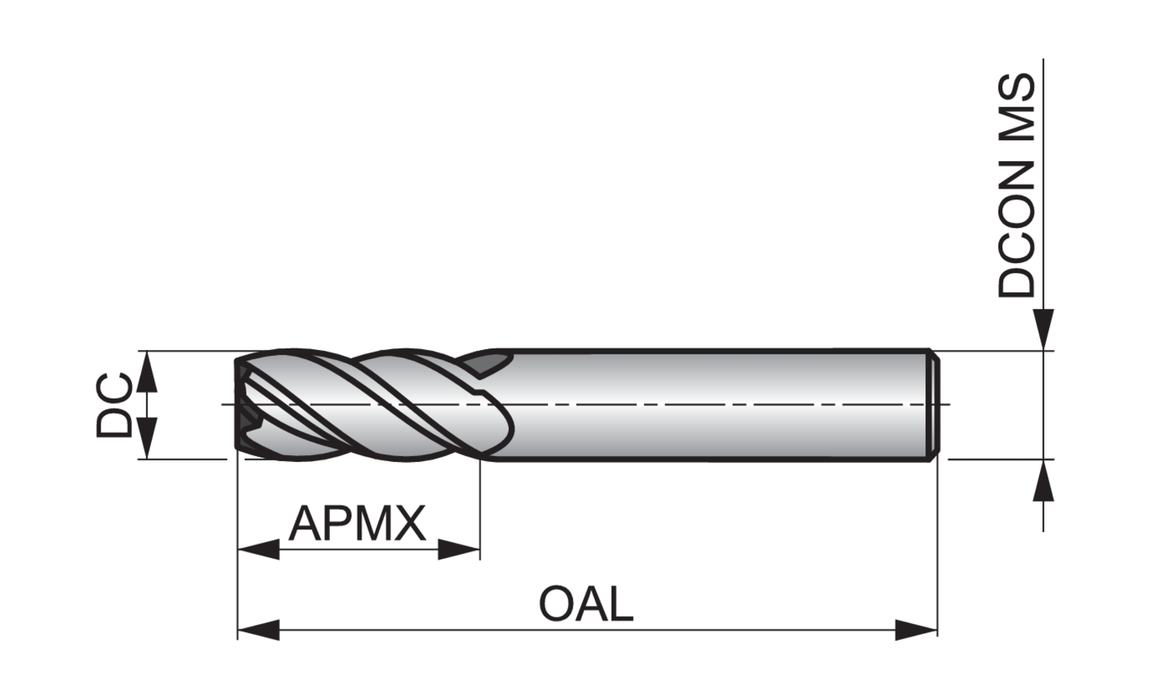

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number8030382
EAN7320760951026
File Type Download
S56116.0 — 3D Model STP Download
S56116.0 — 2D Model DXF Download
S56116.0 — Line Drawing PDF Download
