SDJCR 1616 K 11-S

SDJCR 1616 K 11-S

SKU DOR8165675
by Dormer Pramet
Primary Use:

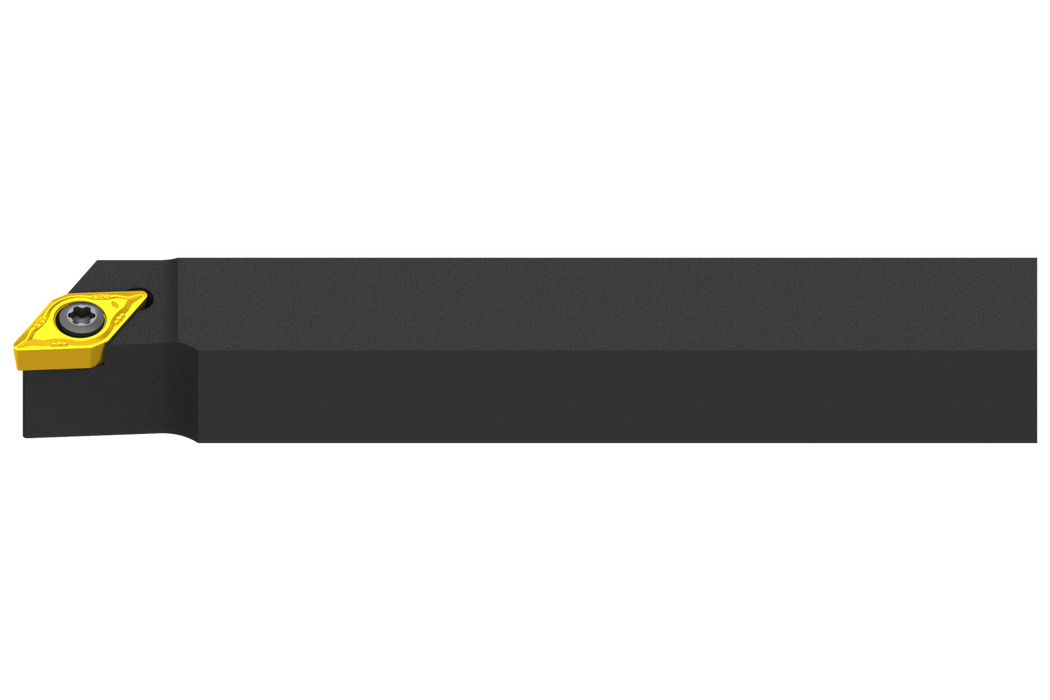

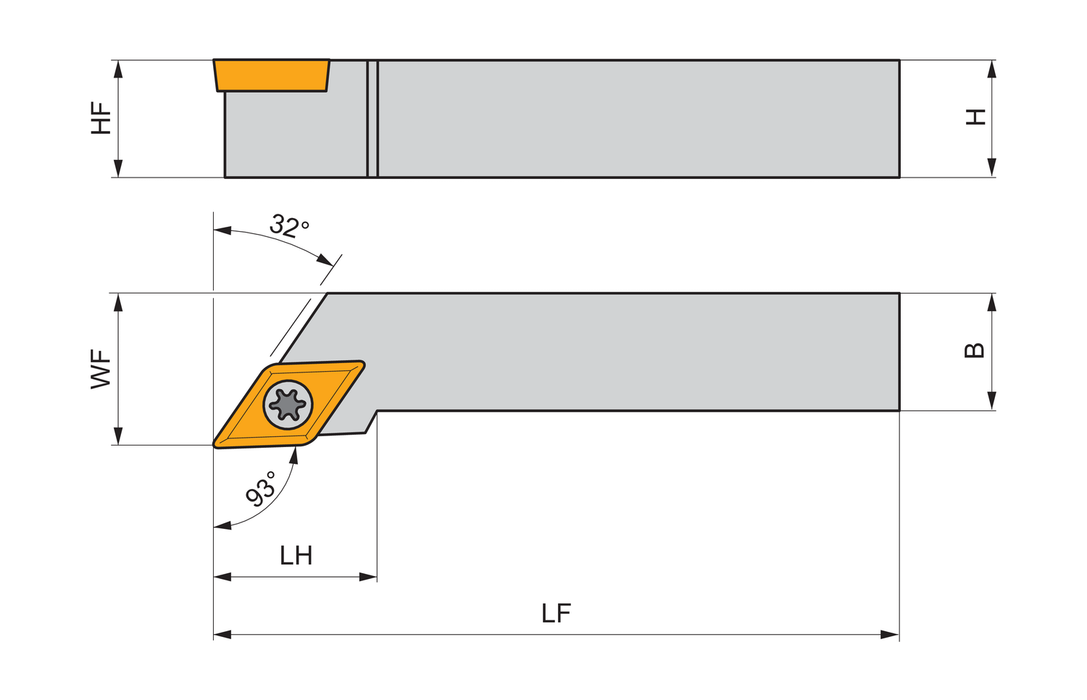

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand 93° side cutting with off-set shank, 16mm tool height x 16mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$162.00 - $162.00
$162.00
$162.00 - $162.00
$162.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 0

Height: 0.63

Insert Designation: ["DC.. 11T3.."]

Functional Length: 4.921

EDP: 8165675

EAN: 3603603941083

MFG Part Number: 8165675
