TNMG 331-FM:T9415

TNMG 331-FM:T9415

SKU DOR8183404
by Pramet

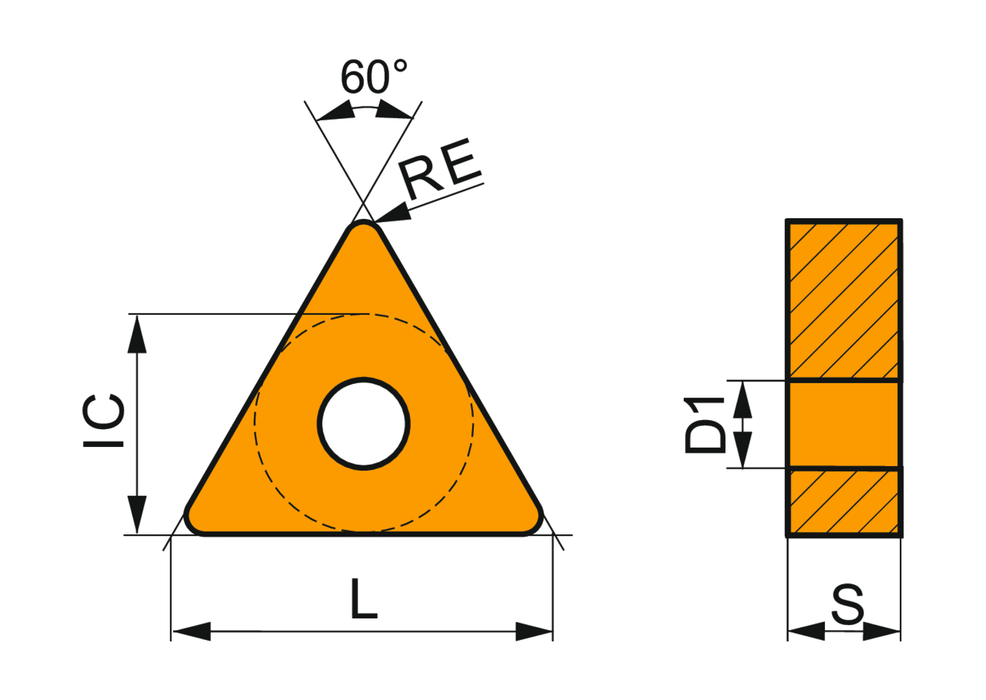

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels

Sold in packs of: 10

For more information about this product, click here
$11.06 - $11.06
$11.06
$11.06 - $11.06
$11.06
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed Circle Diameter - IN: 0.375

Corner Radius - Inch: 0.016

Corner Radius - MM: 0.4

Grade: T9415

Chip Breaker: FM

Insert Design: TNMG

P - Steel and cast steel: Primary use

K - Cast Iron: Possible use

EAN: 3603603953338

MFG Part Number: 8183404
