WNMG 333-RM:T9415

WNMG 333-RM:T9415

SKU DOR8183409
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 3/8", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for medium to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.36 - $10.36
$10.36
$10.36 - $10.36
$10.36
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

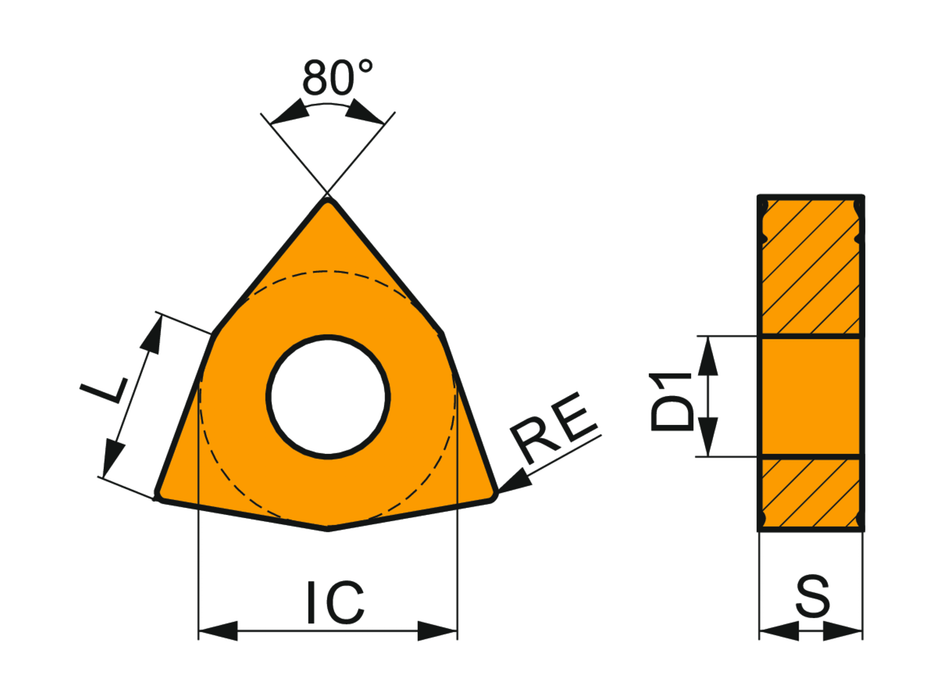

Insert Design: WNMG

Insert Shape Code: W - trigon

Insert Shape Code: gid://shopify/Metaobject/145756553278

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: RM

Grade: T9415

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 8183409

EAN: 3603603953383

MFG Part Number: 8183409
