CNMX 6-10SN-TF:T9415

CNMX 6-10SN-TF:T9415

SKU DOR8183844
by Dormer Pramet
Primary Use: Possible Use:

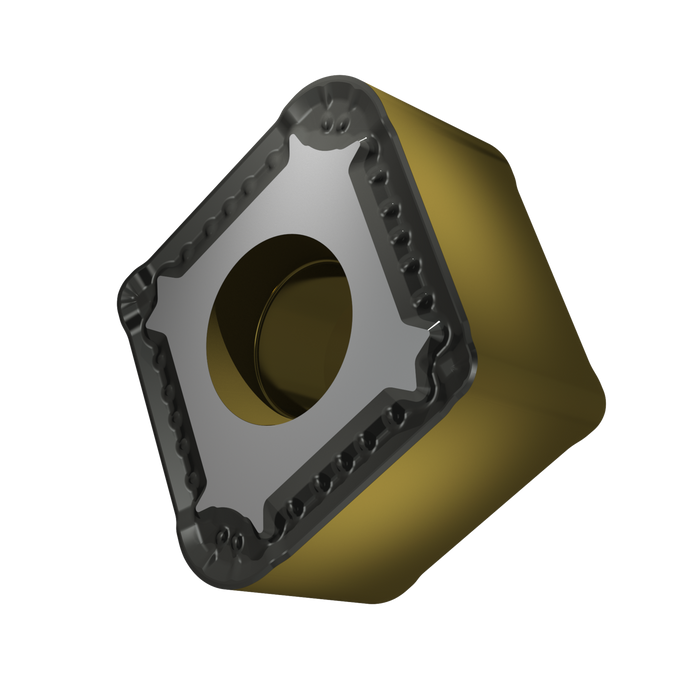

Special design negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 0 5/32" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker TF with rounded cutting edges with facet, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for heavy to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$45.79 - $45.79
$45.79
$45.79 - $45.79
$45.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

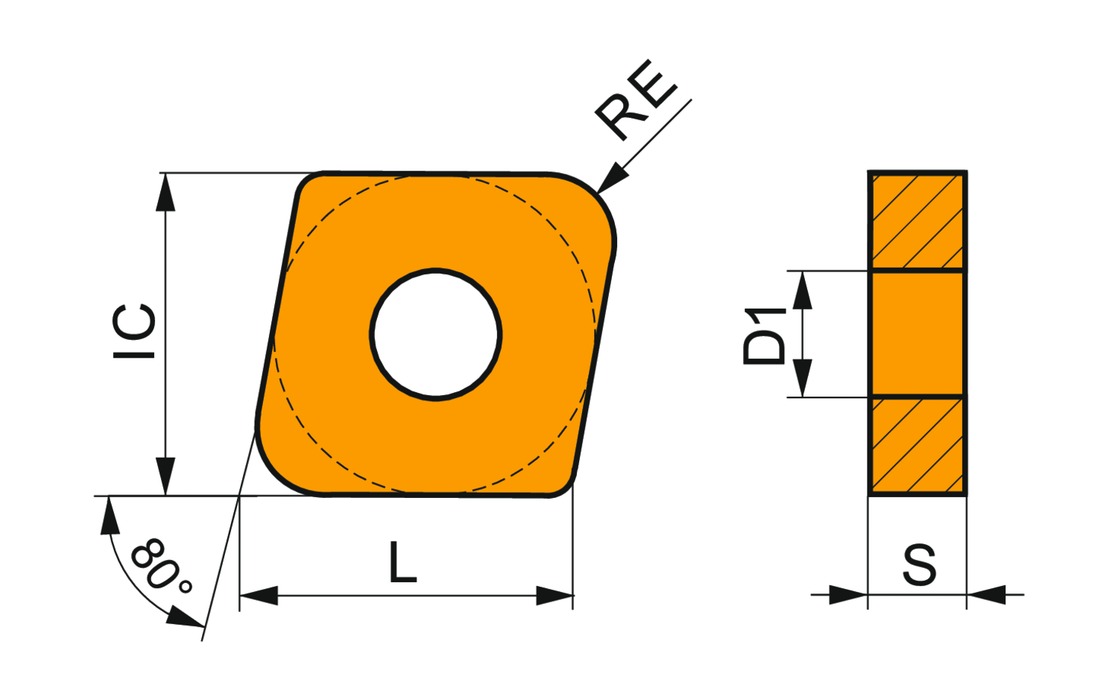

Insert Design: CNMX 19

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.433

Inscribed Circle Diameter: 0.75

Chip Breaker: TF

Grade: T9415

Corner Radius - in: 0.157

Corner Radius - mm: 4

EDP: 8183844

EAN: 3603603953581

MFG Part Number: 8183844
